Parameters and measured values
All parameters necessary for operating the UMG
96RM-P/-CBM, e.g. the current transformer data, and
a selection of frequently required measured values are
stored in the table.
The contents of most addresses can be accessed via
the serial interface and the buttons on the UMG 96RM-
P/-CBM.
Only the first 3 significant digits of a value can be entered
on the device. Values with more digits can be entered
using GridVis.
The device always only displays the first 3 significant
digits of a value.
Selected measured values are summarised in measured
value display profiles and can be shown in display mode
using buttons 1 and 2.
The current measured value display profile and the
current display change profile can only be read and
changed via the RS485 interface.

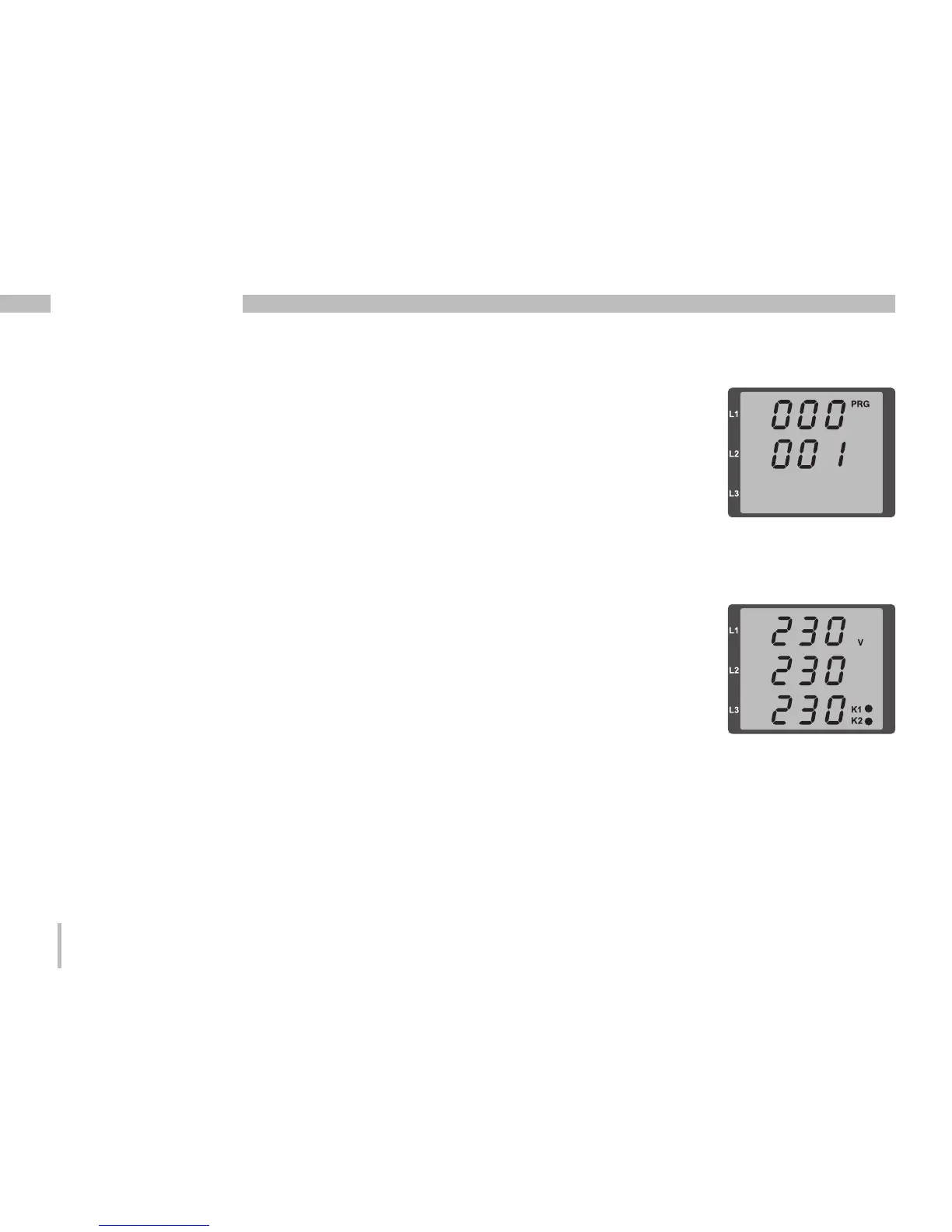

Example of the parameter display
On the UMG 96RM-P/-CBM
display the value “001”
is shown as the content
of address “000”. This
parameter reflects the device
address (here “001”) of the
UMG 96RM-P/-CBM on a
bus in list form.
Example of the measured value display
In this example, the UMG
96RM
-P/-CBM
display shows
the voltages L to N with 230 V
each.
The K1 and K2 transistor out-
puts are conductive and cur-
rent can flow.
