UMG 96RM-P/-CBM
Assembly
Installation location
The UMG 96RM-P/-CBM is suitable for installation in
permanent, weatherproof switchboards. Conducting
switchboards must be earthed.
Installation position
The UMG 96RM-P/-CBM must be installed vertically
in order to achieve sufficient ventilation. The clearance
to the top and bottom must be at least 50 mm
and 20 mm at the sides.
Front panel cutout
Cutout dimensions:
92
+0.8
x 92
+0.8
mm.
m
Failure to comply with the minimum
spacing can destroy the UMG 96RM-P/
-CBM at high ambient temperatures!

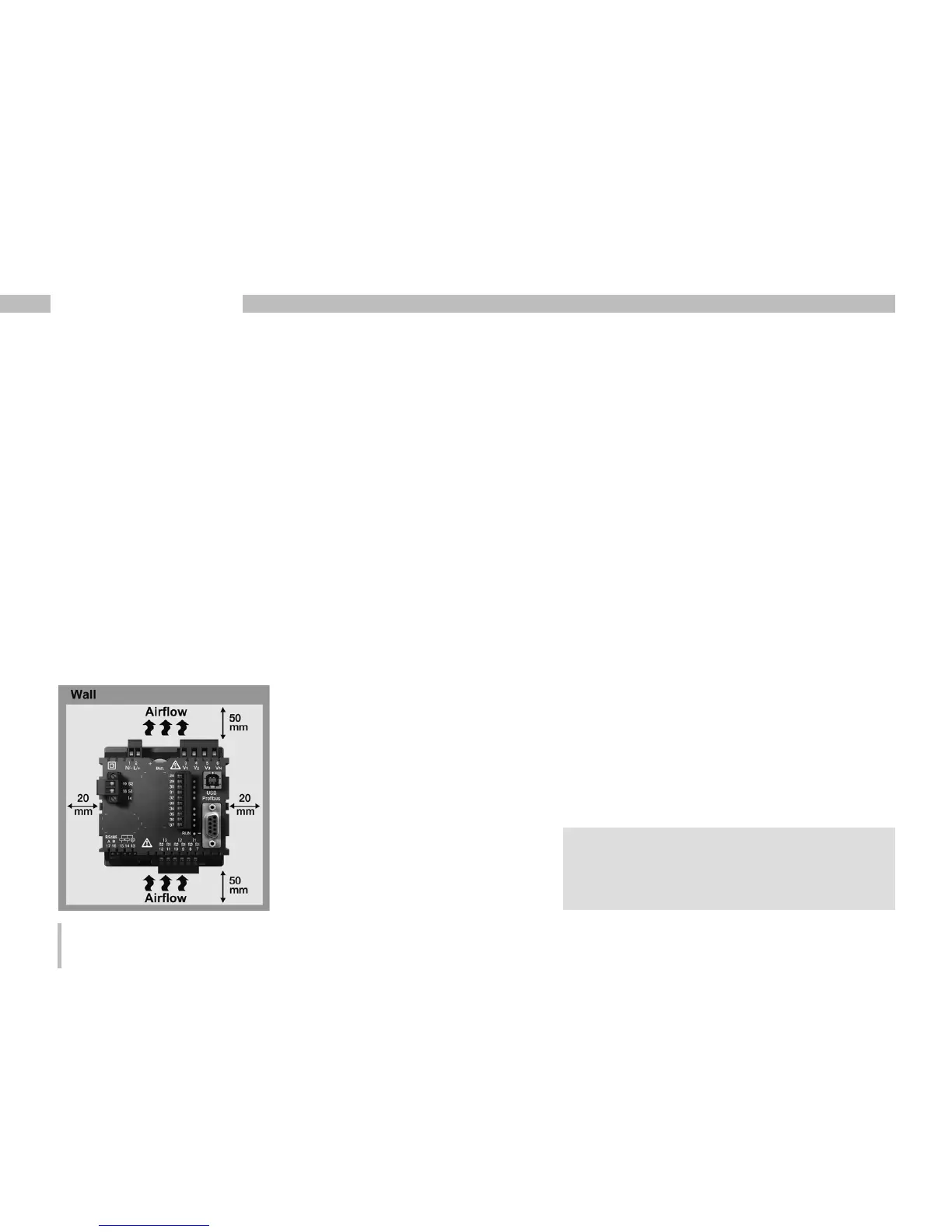

Fig.
UMG 96RM-P/-CBM
installation location
(rear view)
