Profibus interface (only UMG 96RM-P)
This 9-pin D-sub receptacle RS485 interface supports
the Profibus DP V0 slave protocol.
For the simple connection of inbound and outbound bus
wiring these should be connected to the UNG 96RM-P
via a Profibus connector.
For the connection we recommend a 9-pin Profibus
connector, e.g. type „SUBCON-Plus-ProfiB/AX/SC“
from Phoenix, item number 2744380. (Janitza item
no:13.10.539)
D-sub
receptacle
for Profibus

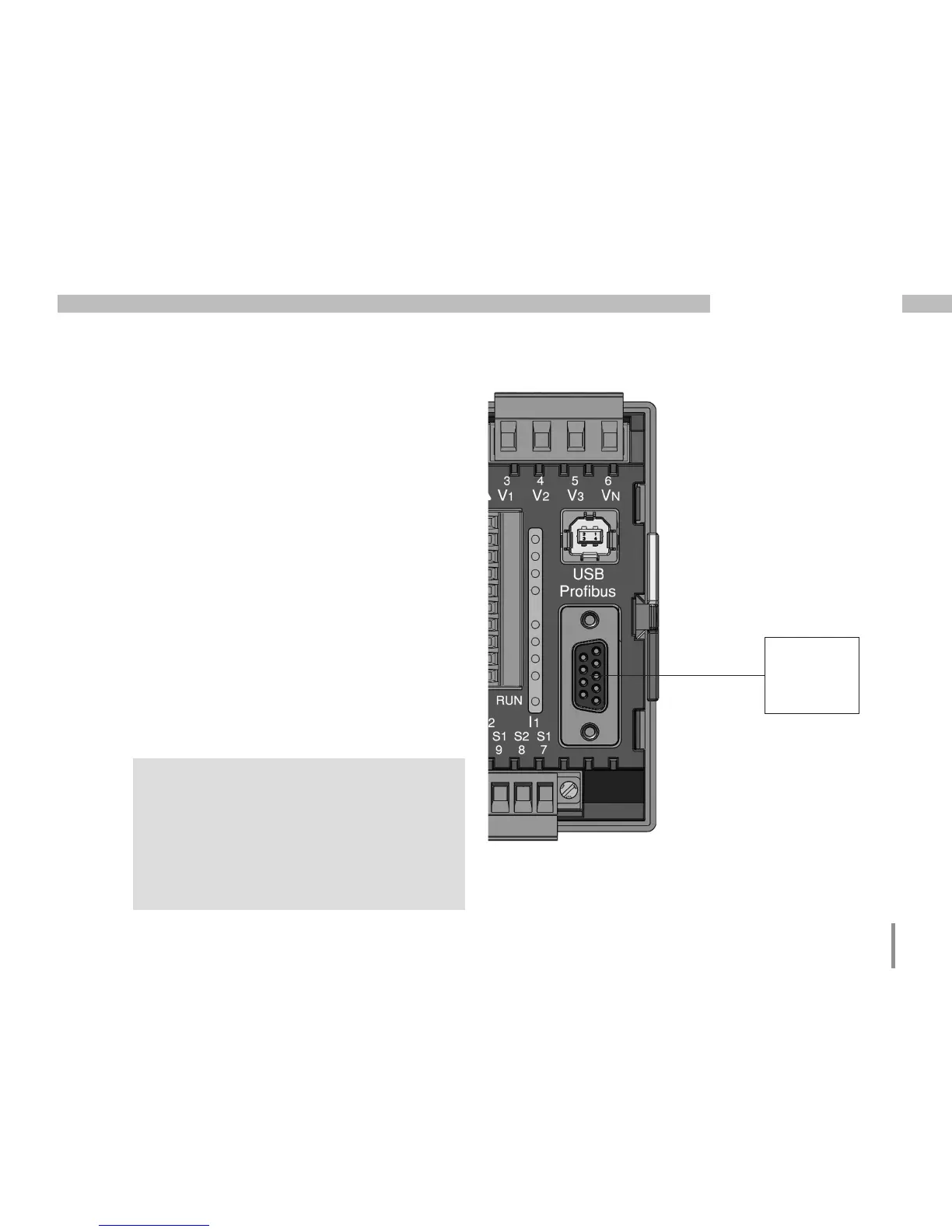

Fig. UMG 96RM-P with D-sub receptacle for Profibus
(View on rear).
C
The device address can be configured by
using the parameter 000 if the device is
used in a Profibus-System.
The baud rate in a Profibus system is de-
tected automatically and must NOT be set
via the address 001!
