Checking the USB installation
• Open the Devices and printers window in Windows 7
via the control panel, for example.

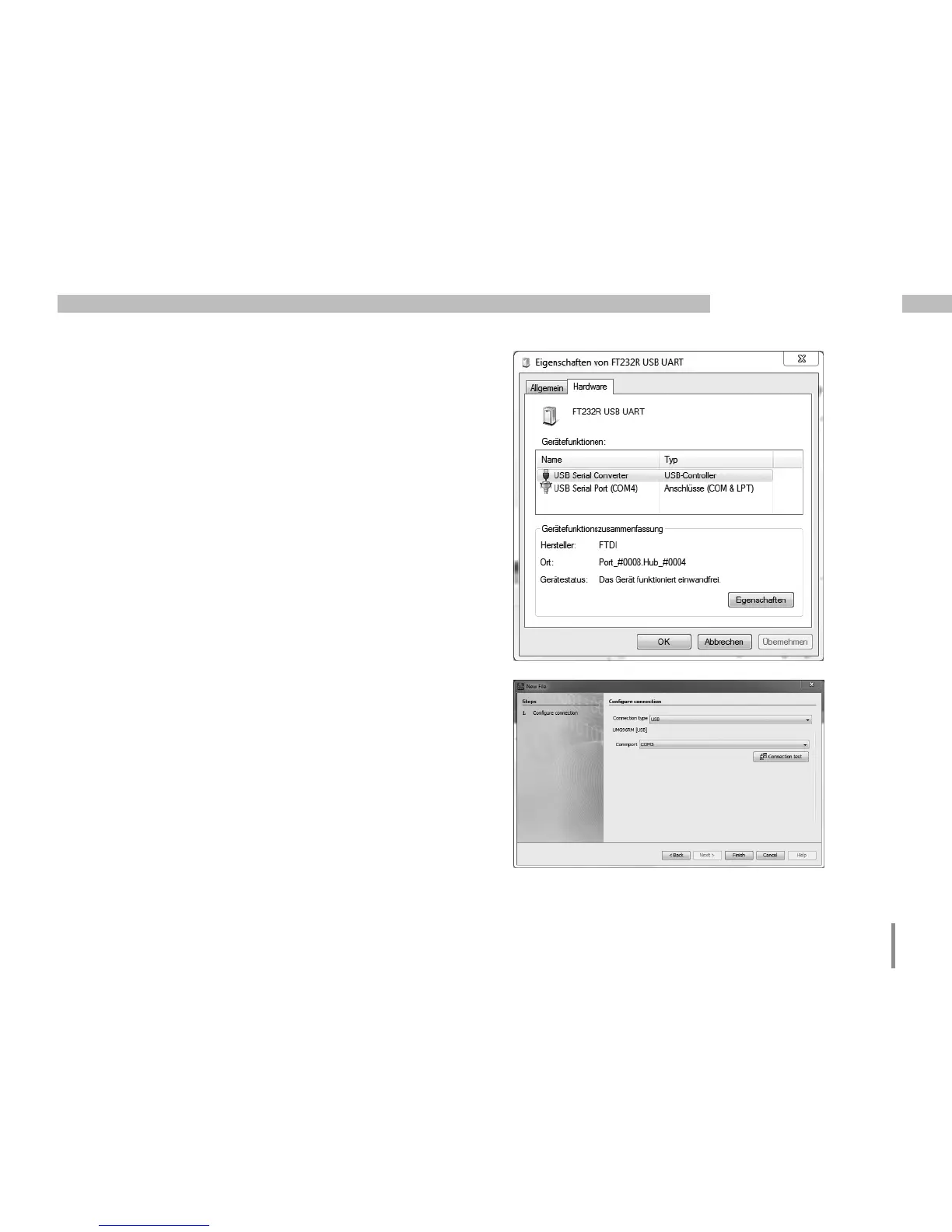

• Open the Properties of the device FT232 USB UART by
double-clicking. Further information about the device
can be found in the General and Hardware tabs.
• Change to Hardware. Under device functions a USB
Serial Converter and a USB Serial Port (COMx) should
be shown after a successful installation, whereby x
reflects the virtual COM port.
• In Windows XP this information can be found in
the hardware area of the device manager under USB
Universal Controller.
• Start the GridVis software and integrate the
UMG 96RM-P/-CBM with the assistant (New file...).
After selecting the connection type (USB) and the
interface of the COM port (COMx, see above) the USB
connection can be used.
