UMG 96RM-P/-CBM
Digital outputs
The UMG 96RM-P and UMG 96RM-CBM have 6 digital
outputs, whereby these are split into two groups of 2 and
4 outputs (see illustration on the right).
Further information on the digital outputs and the
associated functions (comparator groups) can be found
in the instructions provided for the UMG 96RM - Basic
device in the Digital outputs chapter. The functions/
properties described there for the group 1 outputs apply
analogously for the group 2 outputs.
C
When using the digital outputs as pulse
outputs the auxiliary voltage (DC) must
have a max. residual ripple of 5%.
~
~
Group 2
Group 1

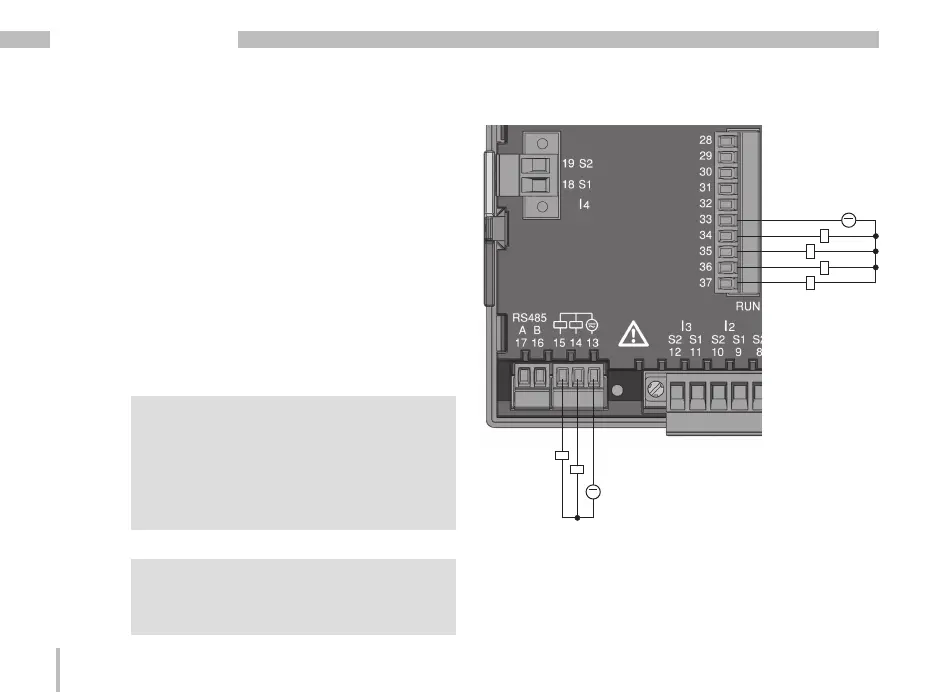

Fig. Connection
digital/pulse
outputs
C
Functions for the digital outputs can be
adjusted clearly in the GridVis software
provided in the scope of deliverables. A
connection between the UMG 96RM and
the PC via an interface is required for
the use of the GridVis software.
