UMG 96RM-P/-CBM
Dimension diagrams
Cut-out size: 92
+0,8
x 92
+0,8
mm.

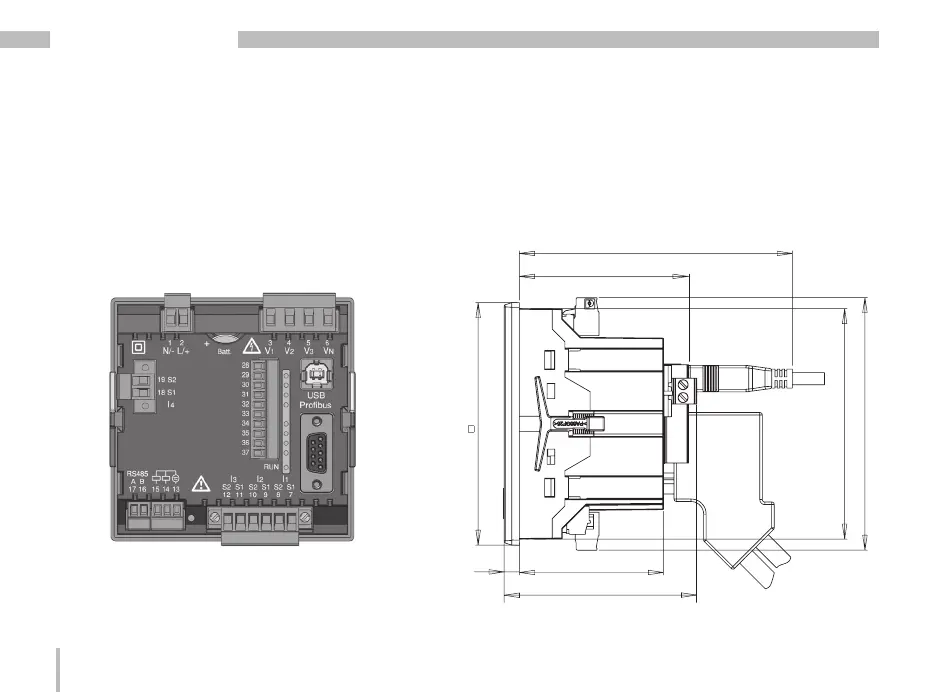

Rear view of UMG 96RM-P Side view of UMG 96RM-P
with USB and Profibus connectors inserted
57
6
96
100
ca. 108
91
65
78
(depth without connector)
All dimensions in mm
