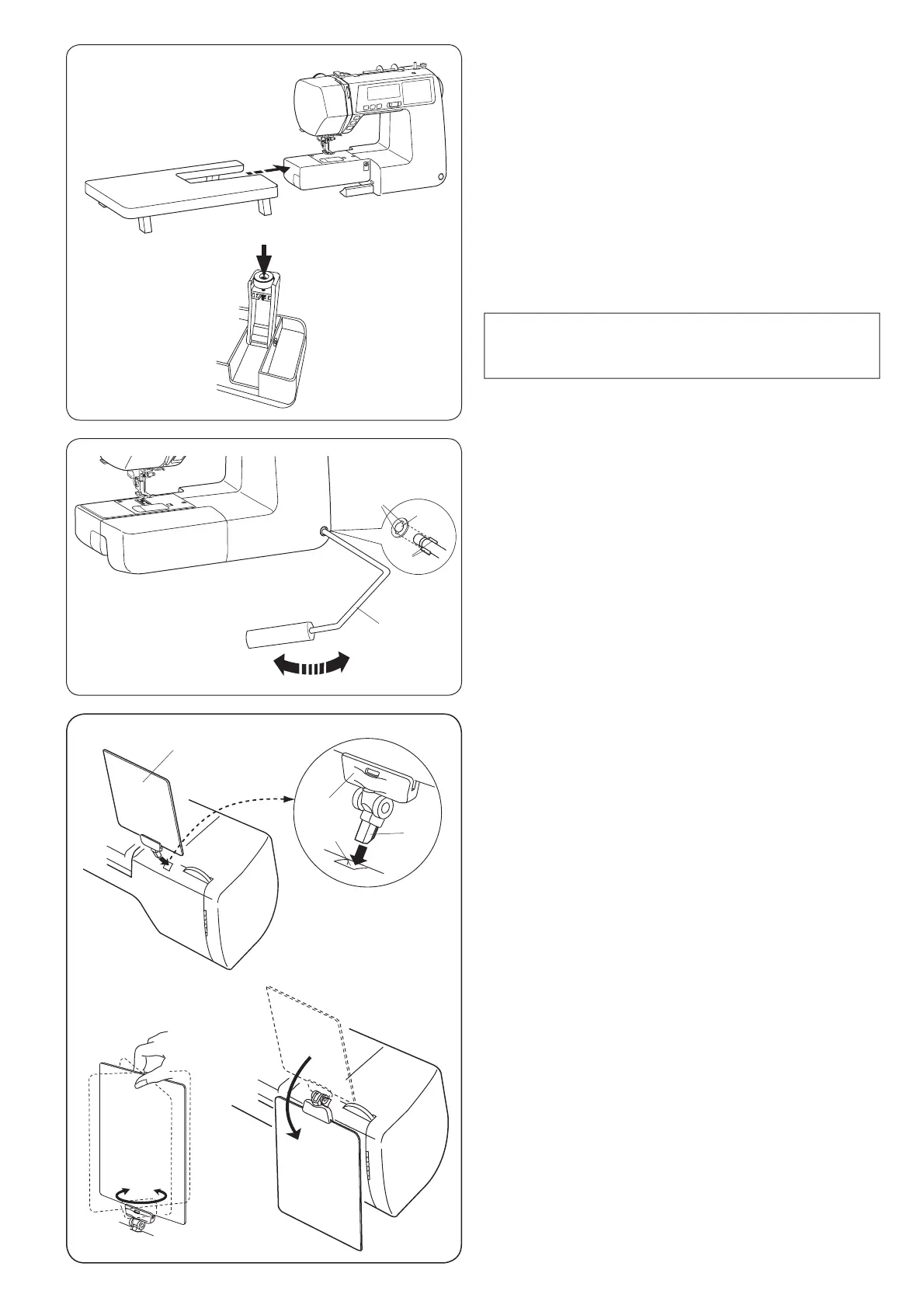

Large Extension Table
Attaching the table
Pull the table away from the machine.
6SUHDGWKHOHJVRIODUJHH[WHQVLRQWDEOH
Holding the table with both hands and slide it gently to
the right.
NOTE:
$3KLOOLSVVFUHZGULYHULVUHTXLUHGIRUDGMXVWLQJWKH
extension table height.
Adjust the table height
Turn setscrews of the table legs with a screwdriver.
q
w
e
r
Stitch Reference Chart
Insert the stitch reference chart q into the chart holder w.
Insert the pin e into the hole for the stitch reference
chart r.
q 6WLWFKUHIHUHQFHFKDUW
w Chart holder
e Pin
r Hole for stitch reference chart
Both sides of the stitch reference chart can be referred to
E\ÁLSSLQJLW
<RXFDQDOVRÁLSWKHFKDUWWRWKHEDFNRIWKHPDFKLQH
when it is not in use.
Attaching the Knee Lifter
7KHNQHHOLIWHULVH[WUHPHO\KHOSIXOZKHQVHZLQJDSSOLTXH
SDWFKZRUNDQGTXLOWLQJVLQFHLWDOORZV\RXWRKDQGOHWKH
fabric while your knee controls the presser foot.
0DWFKWKHULEVRQWKHNQHHOLIWHUZLWKWKHQRWFKHVLQWKH
knee lifter socket and insert the knee lifter.
q Knee lifter
w Knee lifter socket
e Notch
r Rib
