Replacing the Light Bulb
WARNING:
Turn the power off before replacing the light bulb.
The bulb could be HOT, wait until it has cooled down
before touching it.

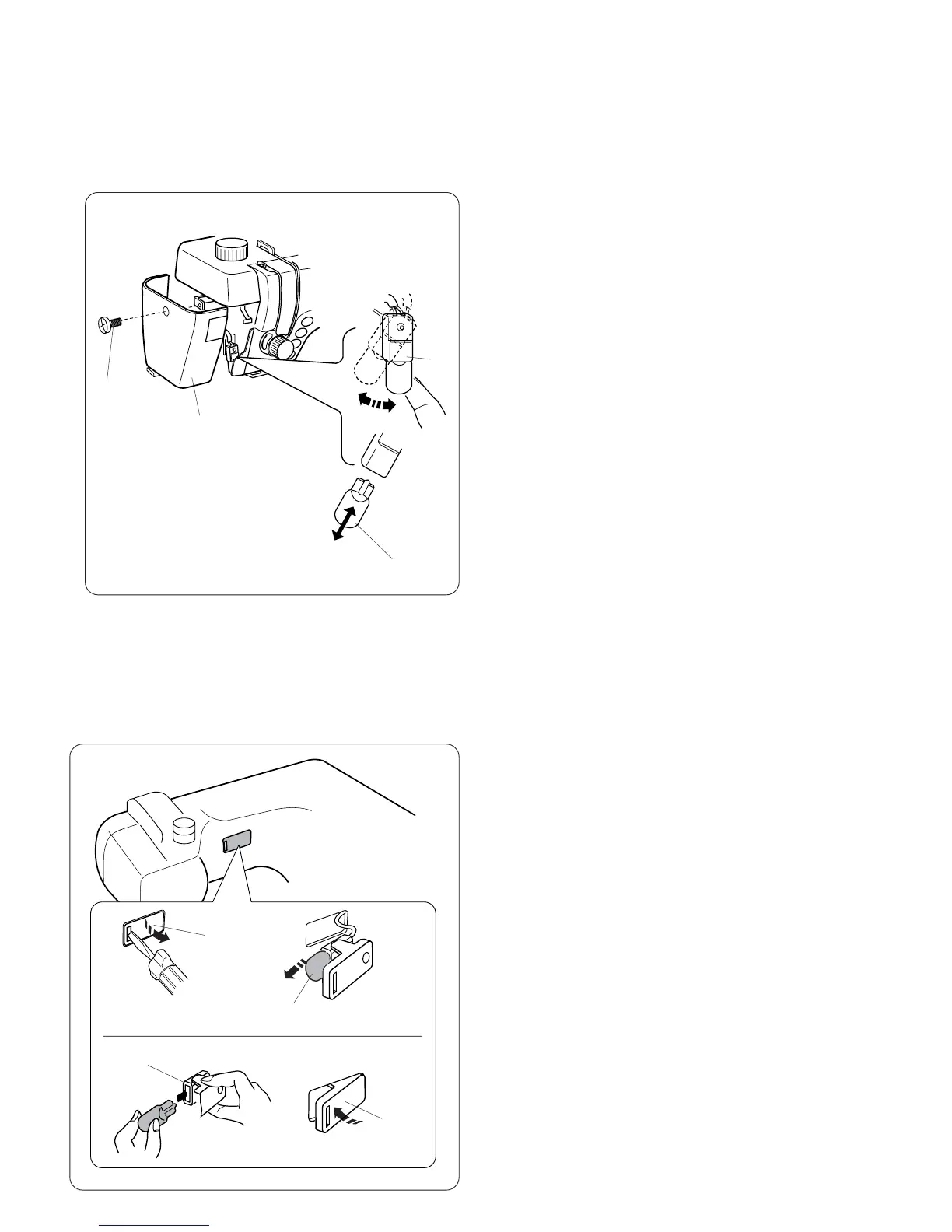

To remove:
Remove the setscrew.
Remove the faceplate.
Swing the lamp socket to the left and pull out the bulb.
To replace:
Insert a new bulb into the opening of the socket.
Return the lamp socket to the original position.
Attach the faceplate with the setscrew.
1 Setscrew
2 Faceplate
3 Lamp Socket
4 Light Bulb
Replace a bulb with the same type, rated 12 V, 5 W.
Replacing the light bulb on the underside of
the sewing arm
Lay the machine on its back.
Remove the lamp holder with the screwdriver as shown.
Pull out the light bulb from the socket.
Insert a new bulb into the socket.
Push the lampholder back into the opening.
1 Lamp holder
2 Lamp
3 Lamp socket
Replace the bulb with the same type, rated 12 V, 5 W.
