Janson Controls FC100-2S-1.5G User Manual

63
0: Invalid
Set as empty terminal, no function 1： Jog
Set as JOG (inching), usually used in trial running, common inching is operated
by 5Hz,
2: Jog Forward Set as JOG forward.
3: Jog reverse Set as JOG reverse.

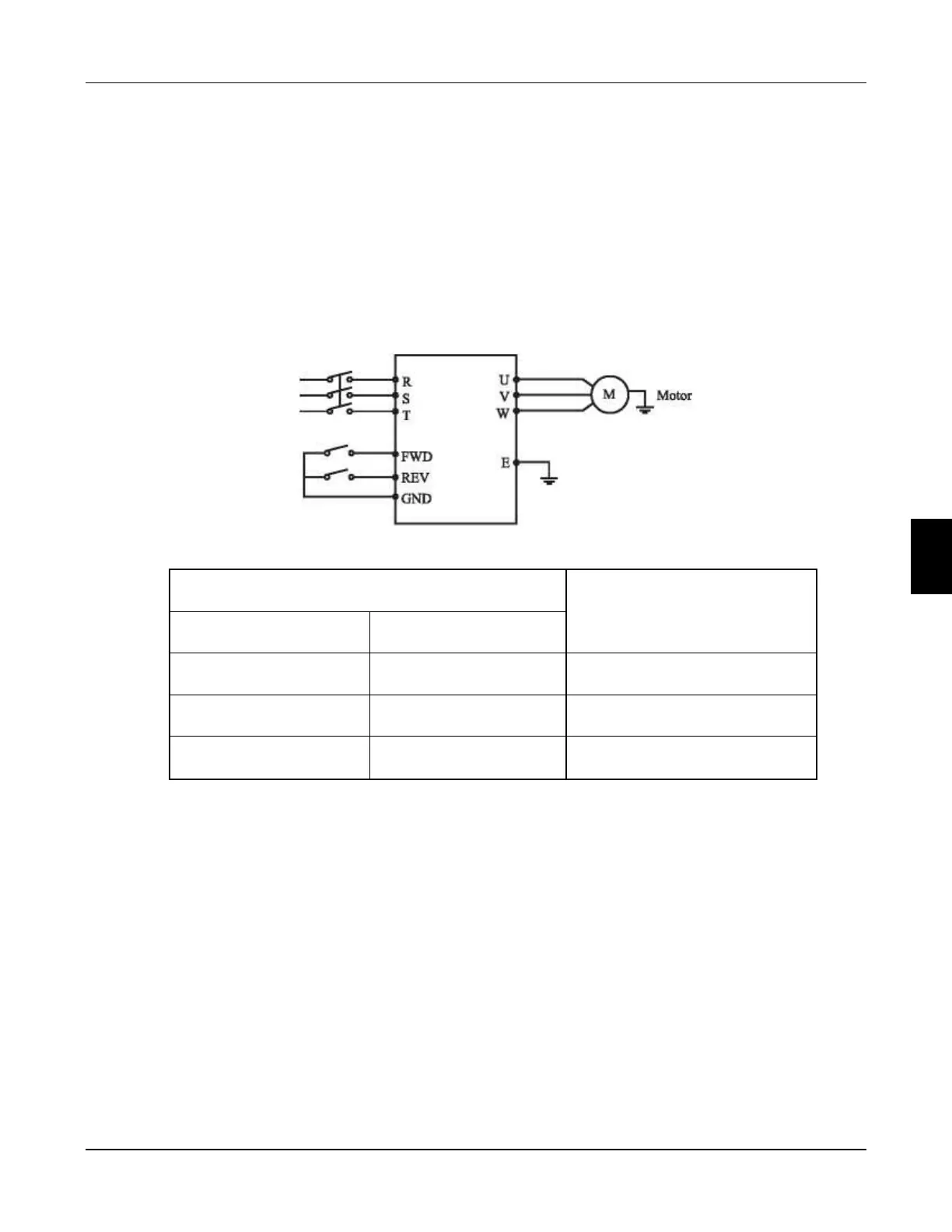

4: Forward/ reverse
Set as forward/ reverse switching, when the terminal is defined to be valid，
running status reverse.
Parameter: P102=1, P315=6, P316=7
Terminal status
Running condition
FWD REV
ON OFF Forward
ON ON Reverse
OFF OFF Stop
5: Running (Set terminal as running signal.)
6: Forward (When terminal is valid, motor run forward.)
7: Reverse (When terminal is valid, motor run reverse.)
8: Stop (When terminal is valid, motor run reverse.)
9: Multi-speed 1
10: Multi-speed 2
11: Multi-speed 3
12: Multi-speed 4 (15-speed can be selected by terminal multi-speed 1,2,3 and
4 as below table:)
6
Chapter 6 Description of parameter setting
FC100 Series User Manaul
