AAA-055-00138 Rev. 1/14/15
Jaylor Owner Manual - 14 - Mini Mixer Models
9.2 Safety Sign Locations (A100 Standard Models)

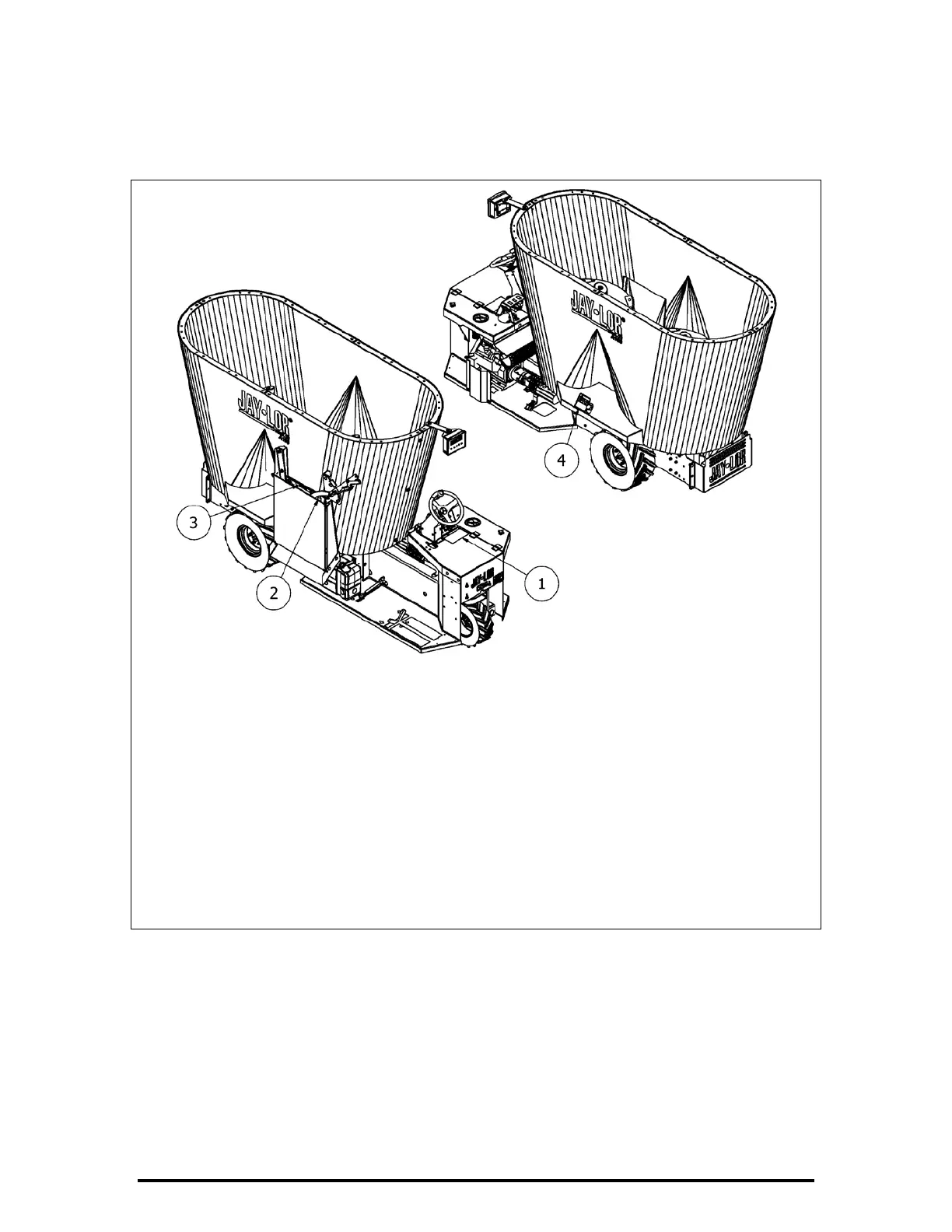

Figure 2 - A100 Safety Decal Locations for Standard Models
1. ‘Warning’ Decal Location (see Figure 3 for self-propelled model and Figure 4 for all
other models)
2. ‘Pinch Point Hazard’ Decal Location (see Figure 5)*
3. ‘Rotating Auger Hazard’ Decal Location (see Figure 6)*
4. ‘High Pressure Fluid Hazard’ Decal Location (see Figure 7)
* These decals will also be located on the optional additional unloading door. See ‘10.
Machine Components’ for location of optional additional unloading door.
NOTE – Although the appearance of the other three A100 models (stationary, trailer, truck
mounted) differ from the A100 self-propelled model, general locations of the safety decals
