Jay-Lor A50 - A50 Skid Steer Mixer Components; Figure 21 - A50 Skid Steer Mixer Components

AAA-055-00138 Rev. 1/14/15
Jaylor Owner Manual - 23 - Mini Mixer Models
10.3 A50 Skid Steer Mixer Components

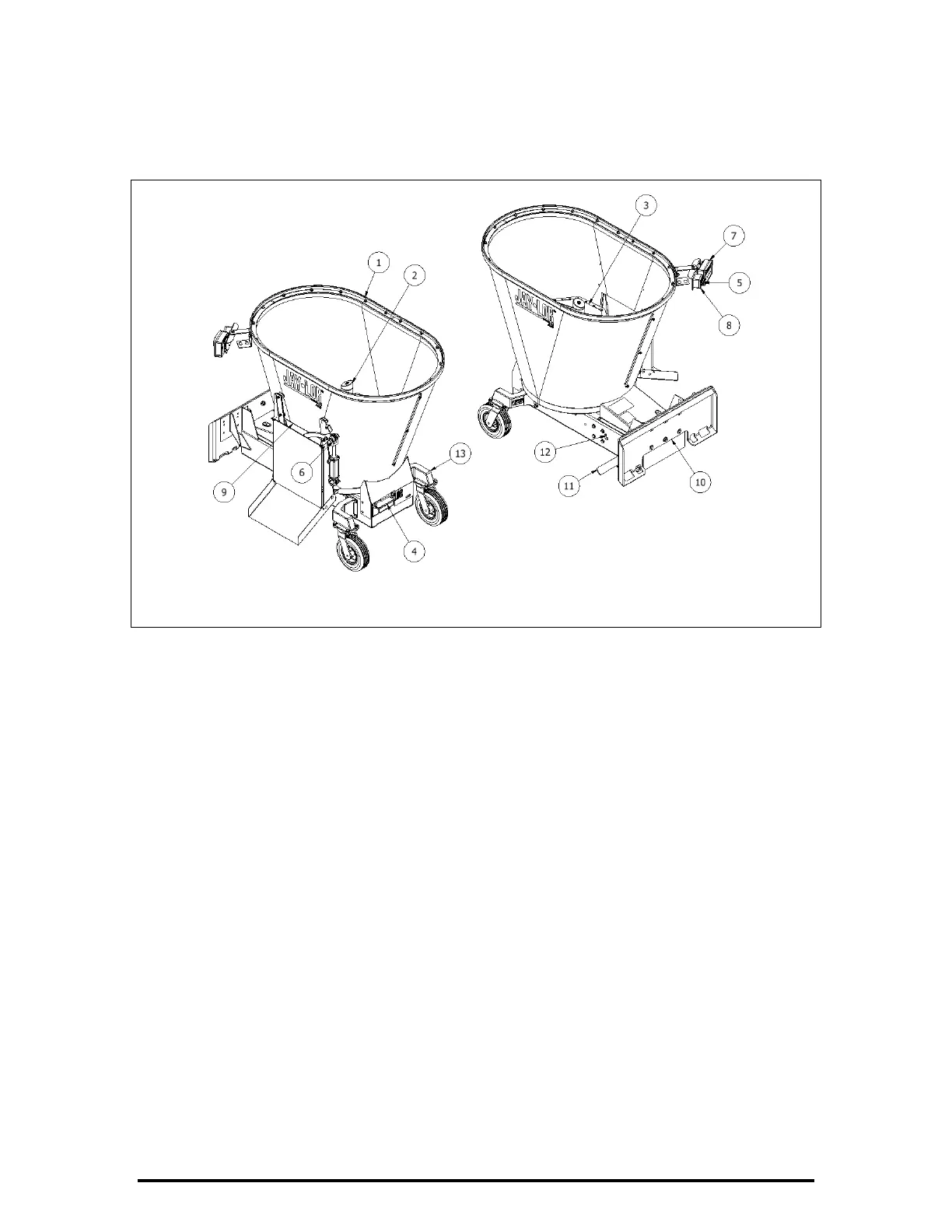

Figure 20 - A50 Skid Steer Mixer Components
1. Mixer Drum – Used to contain the feed
while it is cut and mixed by the vertical
augers.
2. Vertical Augers – Used to mix the feed
within the mixer drum and to discharge the
feed through the unloading door.
3. Auger Knives – Used to cut the feed
material as the augers rotate.
4. Battery and Charger – Supplies power to
the solenoids and Electronic Scale
Indicator
5. Hydraulic Door Open/Close Controls –
Controlled by an electronic rocker switch
with ‘open’ and ‘close’ positions
6. Hydraulic Door Cylinder – Opens and
closes the door to control the feed
discharge rate
7. Electronic Scale Indicator – Displays the
weight inside the drum.
8. Control Pendant – Magnetic pendant for
easy relocation to cab of skid steer loader
9. Unloading Door – Door can be opened to
allow feed to be discharged.
10. Quick Attach Plate – Allows skid steer
loaders to connect to the A50 skid steer
mixer
11. Spring Foot – Provides stability to the
mixer when not in use (only for wheel kit
option)
12. Spring Pin – Locks the Spring Foot in
either extended or retracted position (only
for wheel kit option)
13. Wheel Kit (optional) – Optional for skid
steer loaders with low lifting capacities
