31.2 Auger Height Adjustment
The auger height is controlled by rotating a set screw which is threaded into the auger slope top
(see Figure 51). It is important that the leading edge of the auger does not come into contact with
the drum floor during operation. However, it is also important that the leading edge is not too far
above the floor. The height will be set at the factory but should be checked occasionally. When
measuring this height, rotate the auger one full revolution and find the location where the drum
floor and the auger leading edge are closest. At this location, the drum floor and the auger
leading edge should be spaced 1/8 inches (3 mm) vertically.

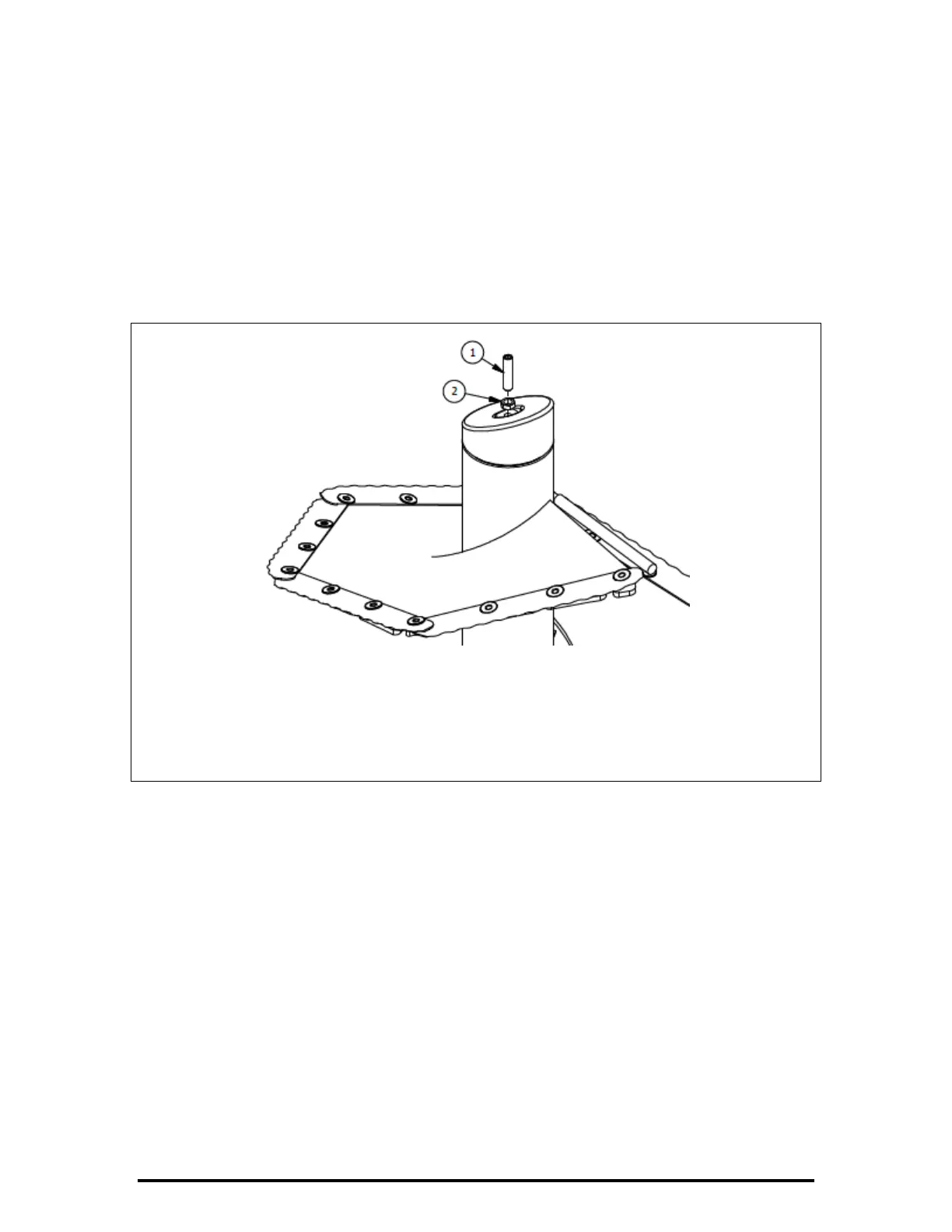

Figure 51 - A50 and A100 Auger Height Adjustment
1. Auger Height Adjustment Set Screw – Rotate the set screw clockwise to raise the height of
the auger and counterclockwise to lower it.
2. Auger Height Securing Nut – Loosen nut before adjusting the height of the auger. Once
auger height is set, tighten nut to original torque.
32.0 TIRE AIR PRESSURE
Inflate tires on all Jaylor A50 and A100 models to the manufacturer’s recommended pressure.
The inflation pressure will be on the tire. Ensure all tires are at the recommended pressure.
