AAA-055-00138 Rev. 1/14/15
Jaylor Owner Manual - 54 - Mini Mixer Models
28.4 Steering Assembly (A50 and A100 Self-Propelled Models)

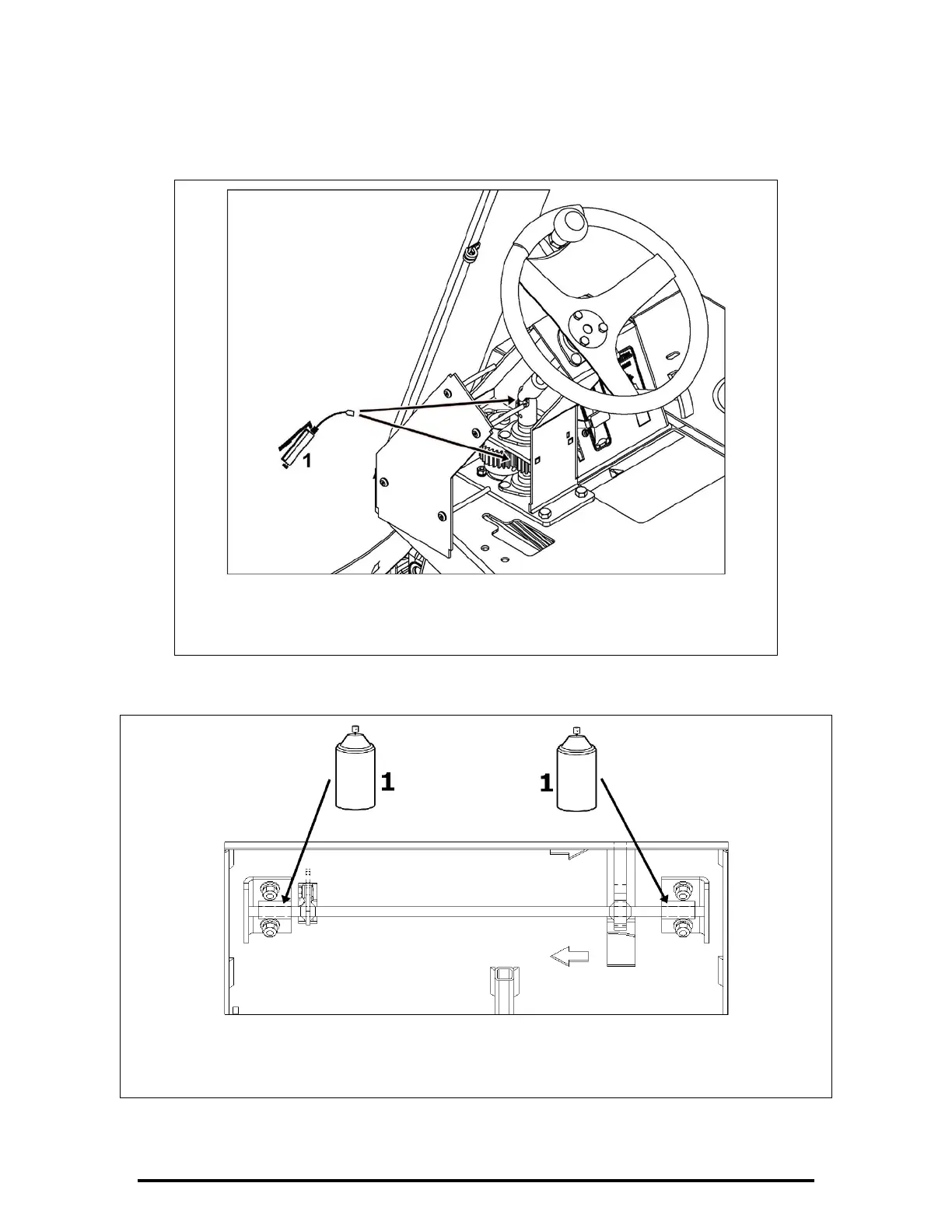

Figure 40 - A50 and A100 Self-Propelled Steering Assembly Grease Location
1. Remove side cover and grease u-joint and gears every 1 MONTH.
28.5 Speed/Direction Control Bushing (A50 and A100 Self-Propelled Models)
Figure 41 - A50 and A100 Self-Propelled Speed/Direction Control Bushing Lubricate Location
1. Apply spray lubricant inside the bushings shown above every 1 MONTH (found under the
operator’s platform).
