10.2 A50 Stationary Standard Mixer Components

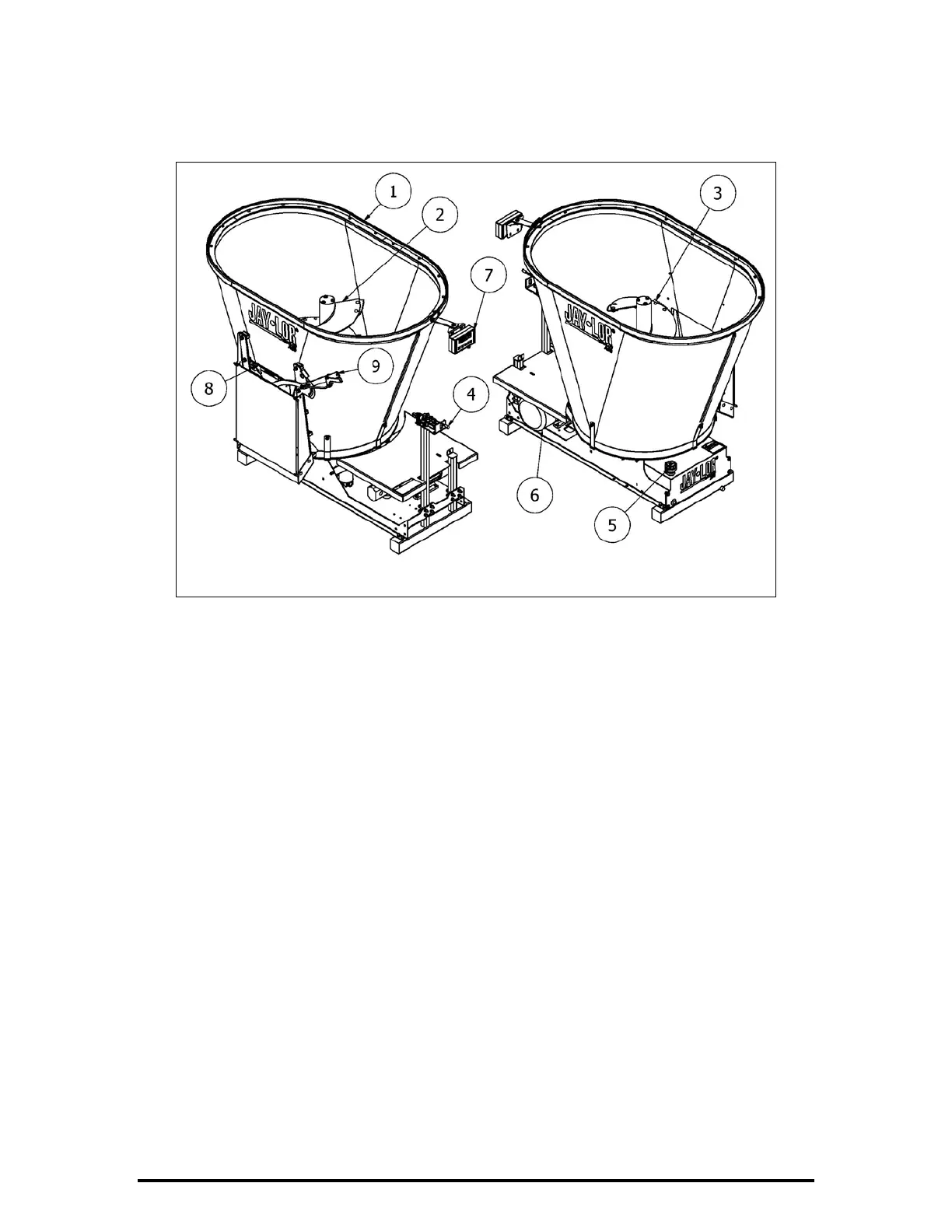

Figure 19 - A50 Stationary Mixer Components
1. Mixer Drum – Used to contain the feed
while it is cut and mixed by the vertical
auger.
2. Vertical Auger – Used to mix the feed
within the mixer drum and to discharge the
feed through the unloading door.
3. Auger Knives – Used to cut the feed
material as the auger rotates.
4. Auger On/Off Control – When lever
handle is pushed upward, auger will begin
rotating. When lever handle is pushed
downward, auger will stop rotating.
5. Hydraulic Oil Reservoir/Cap – Remove
this cap to add oil. Dipstick indicates
proper oil level range.
6. Electric Motor – Powers machine.
7. Electronic Scale Indicator – Displays the
weight inside the drum.
8. Unloading Door – Door can be opened to
allow feed to be discharged.
9. Door Open/Close Control – Used to
control feed discharge rate.
