30 - 1

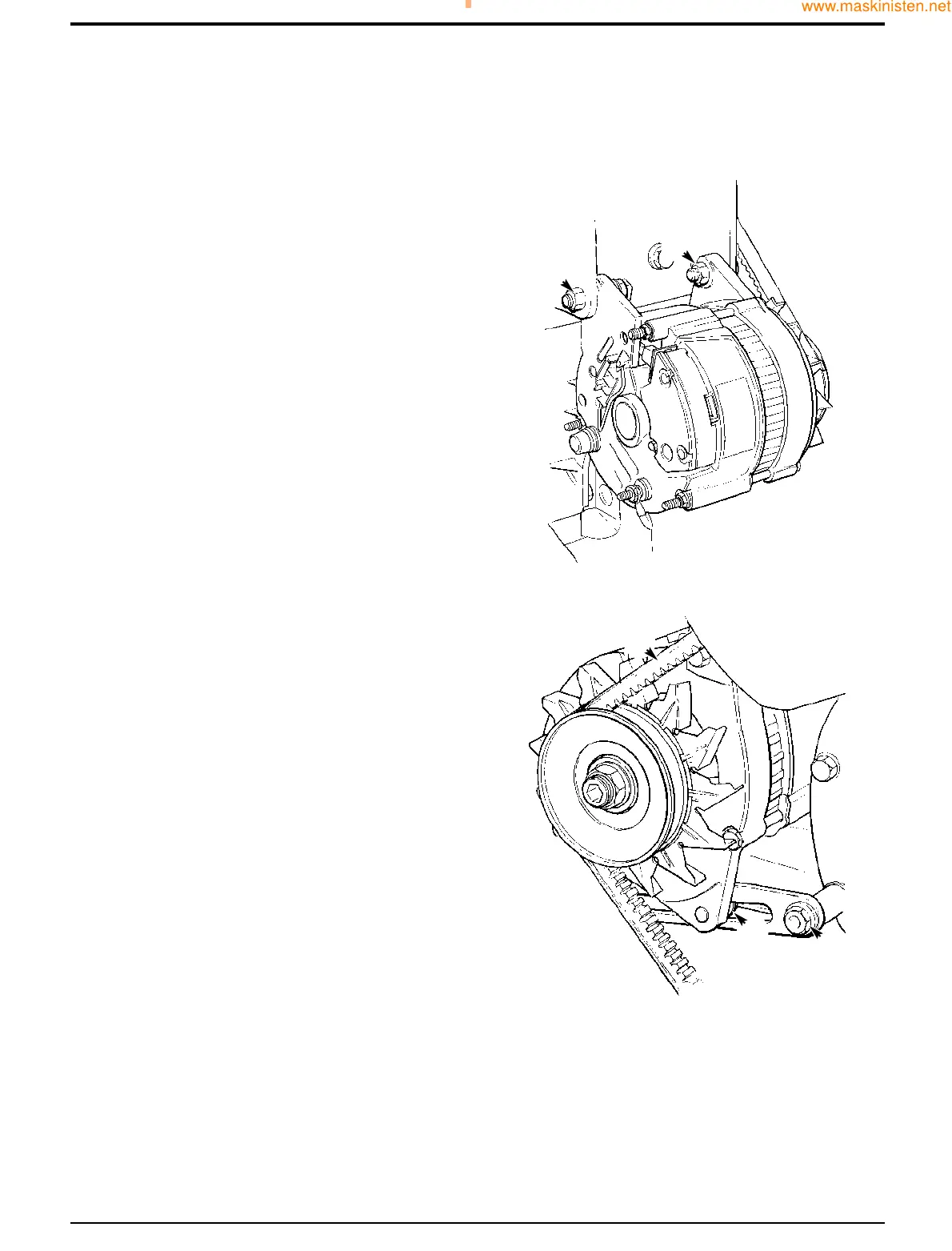

Removal and Replacement
1 Disconnect the battery.
2 Remove the fan guard, if fitted.
3 Disconnect cables from rear of alternator, remove bolts
A, B and C and withdraw unit from machine.
Replace by reversing the removal sequence.
Note: Position the alternator until belt deflection W is
approximately 10 mm (3/8 in) before tightening bolts B and
C. It may be necessary to slacken bolt D to allow full
movement of alternator. Tighten bolt A last of all.
Section C Electrics
9803/7130
Section C
30 - 1
Issue 1
Alternator
AA
BB
WW
DD
CC
099850A
099850B
