Section E - Hydraulics
Valves
Control Valve
E-33 E-33
9803-9570-4

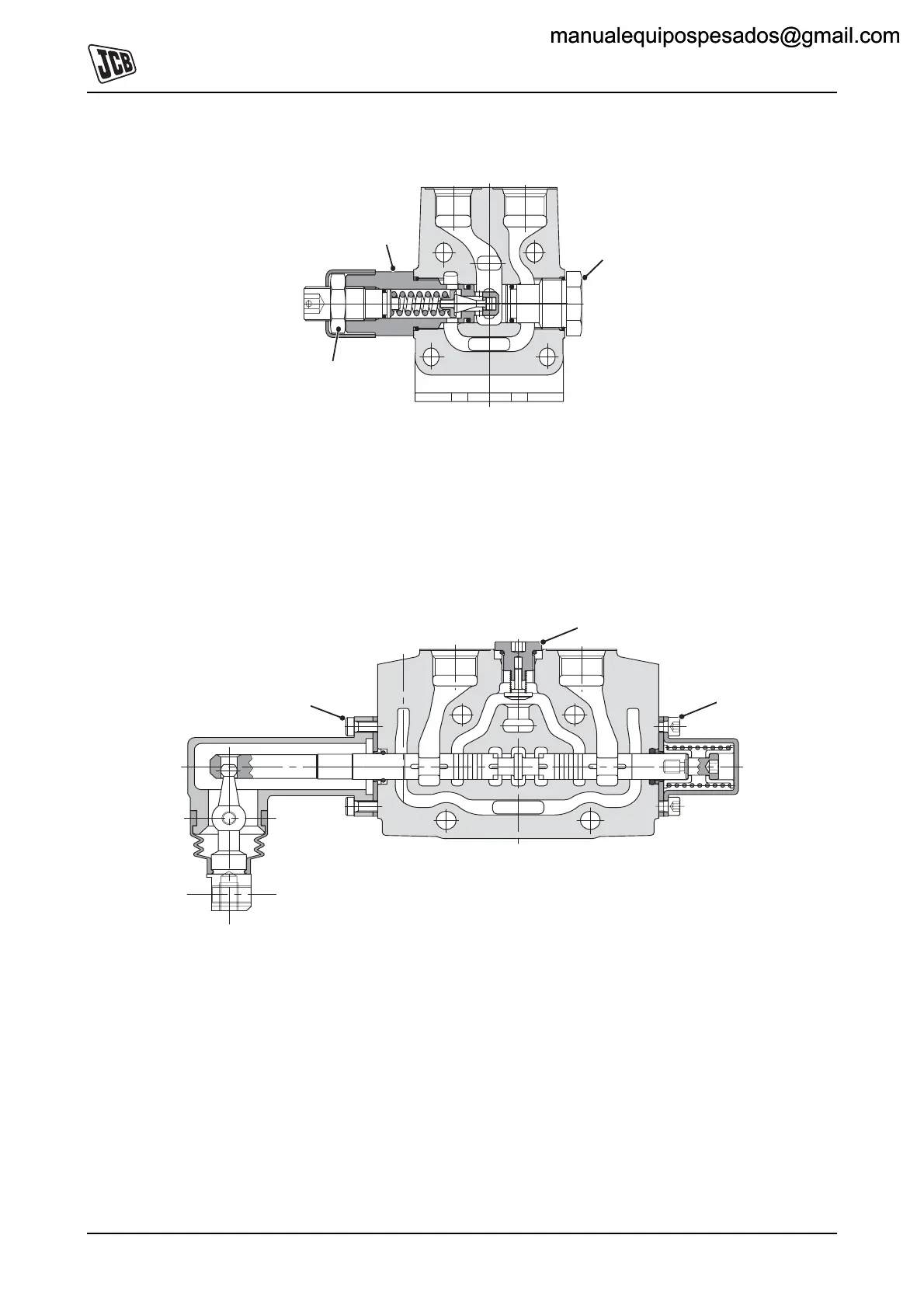

Inlet Section
Fig 5.
Tip Section
Fig 6.
Torque Settings Nm Lbf ft
MRV Body (A)8059.0
MRV Lock Nut (B)2014.8
Plug (C)8059.0
Torque Settings Nm Lbf ft
Cap Screws (A) 4 - 6 3.0 - 4.4
Load Hold Valve Plug (B)2014.8
C
A
B
B
A
A
