JCB EcoMAX Engine Installation Manual
© JCB Power Systems Ltd. 320/A9164-1 Page 55 of 64

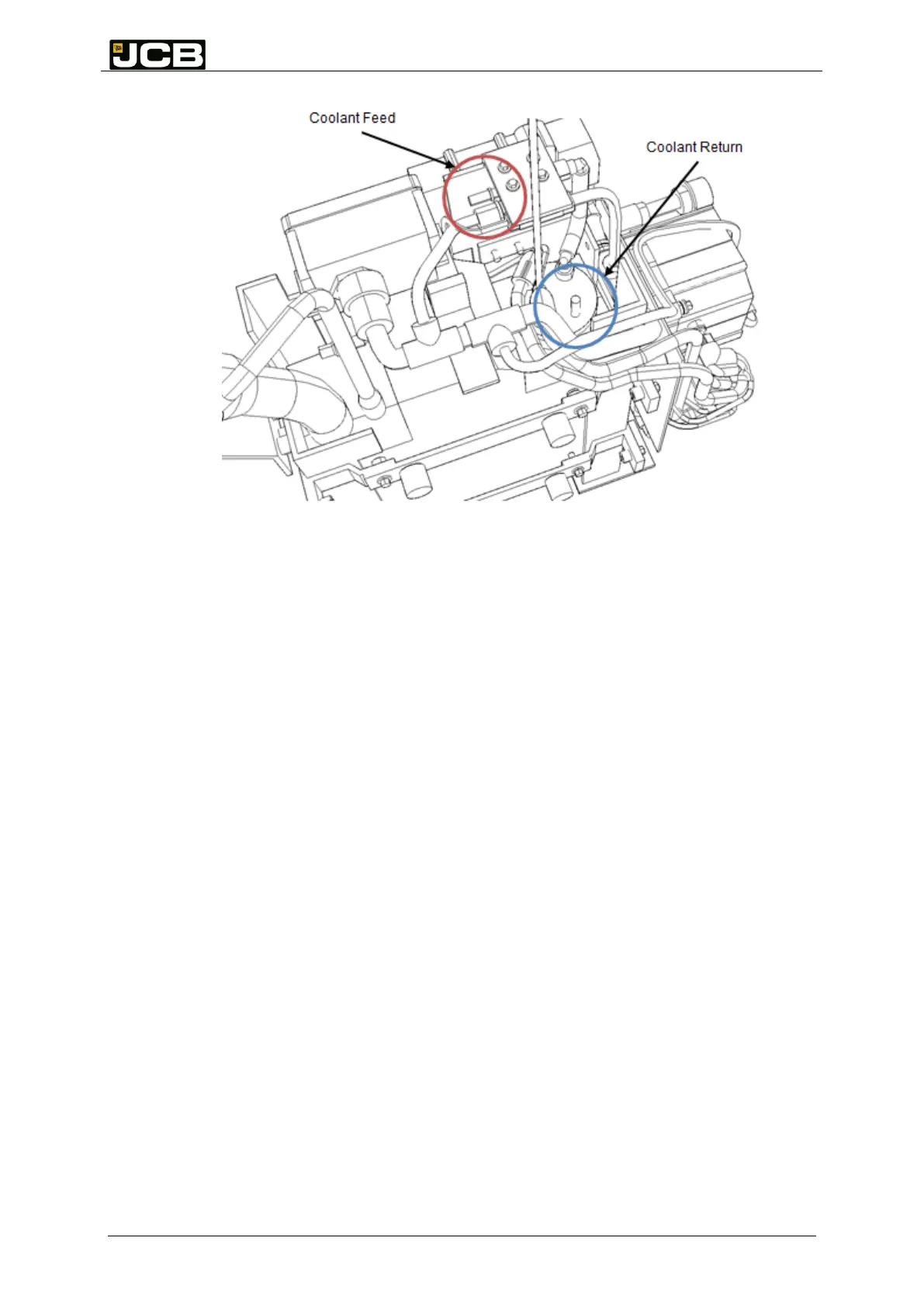

Figure 18: Tank Module side SAE J2044 coolant connections
The Coolant feed from the engine should be used only for the Tank Module connection and
must not be used for auxiliary purposes such as operator station heating or auxiliary
equipment cooling. If coolant supply is required for auxiliary equipment advice should be
sought from JCB power Systems Application Engineering team.
