DT-300™ Series Download Tool Operator Integration Guide
5 SPECIFICATIONS
Technical Specifications
Environmental Specifications
Electrical Specifications
Structural Specifications
Table 1 DT-300 Technical Specifications
Compatibility: UBA, iVIZION, VEGA, TBV, iPRO & RC Series Units
Processing Speed
*
:
*. Download Time depends on Models and/or files.
Software Download Time (from start to completion):
a) UBA-10 (USB): Approximately 60 seconds (Software Size/1MB)
b) UBA-14 (USB): Approximately 120 seconds (Software Size/2MB)
c) iVIZION (USB): Approximately 70
seconds (Software Size/8MB)
d) VEGA (USB): Approximately 34 seconds (Software Size/2MB)
e) TBV-100 (USB): Approximately 124 seconds (Software Size/8MB)
f) iPRO (USB): Approximately 70 seconds (Software Size/8MB).
Switches:
Power Switch, OK Button, CLR Button, 
Direction Key Button (UP/DOWN/RIGHT/LEFT)
Interface:
USB
†
Host Single Channel (USB 2.0, Full Speed)
SD Card (SDHC acceptable)
†. USB is available for only JCM products’ access.
Display:
Monochrome LCD (122x32 dots with back light)
LED (Light-emitting Diodes) (Red)
Table 2 DT
-300 Environmental Specifications
Operating Temperature: 5ºC to +45ºC (41ºF to 113ºF)
S
torage Temperature: -20ºC to +60ºC (-4ºF to 140ºF) (Batteries are exception)
Relative Operating Humidity: 30% to 80% RH (non-condensed)
Relative Storage Humidity: 15% to 95% RH (non-condensed)
Visible Light Sensitivity: Avoid Direct Sunlight
Table 3 DT
-300 Electrical Specifications
Supply Voltage: Four (4) AAA/LR03 Size Alkaline Batteries (provided by User)
Current Consumption:
Standby = 20mA
*

Downloading = 90mA
*. 70mA for less then ten (10) minutes while entering Standby.
Table 4 DT-300 Structural Specifications
Weight Empty: Approximately 165g (5.82oz) without Batteries and SD Card
Out
side Dimensions: Refer to “Unit Dimensions” on page 14 of this Guide

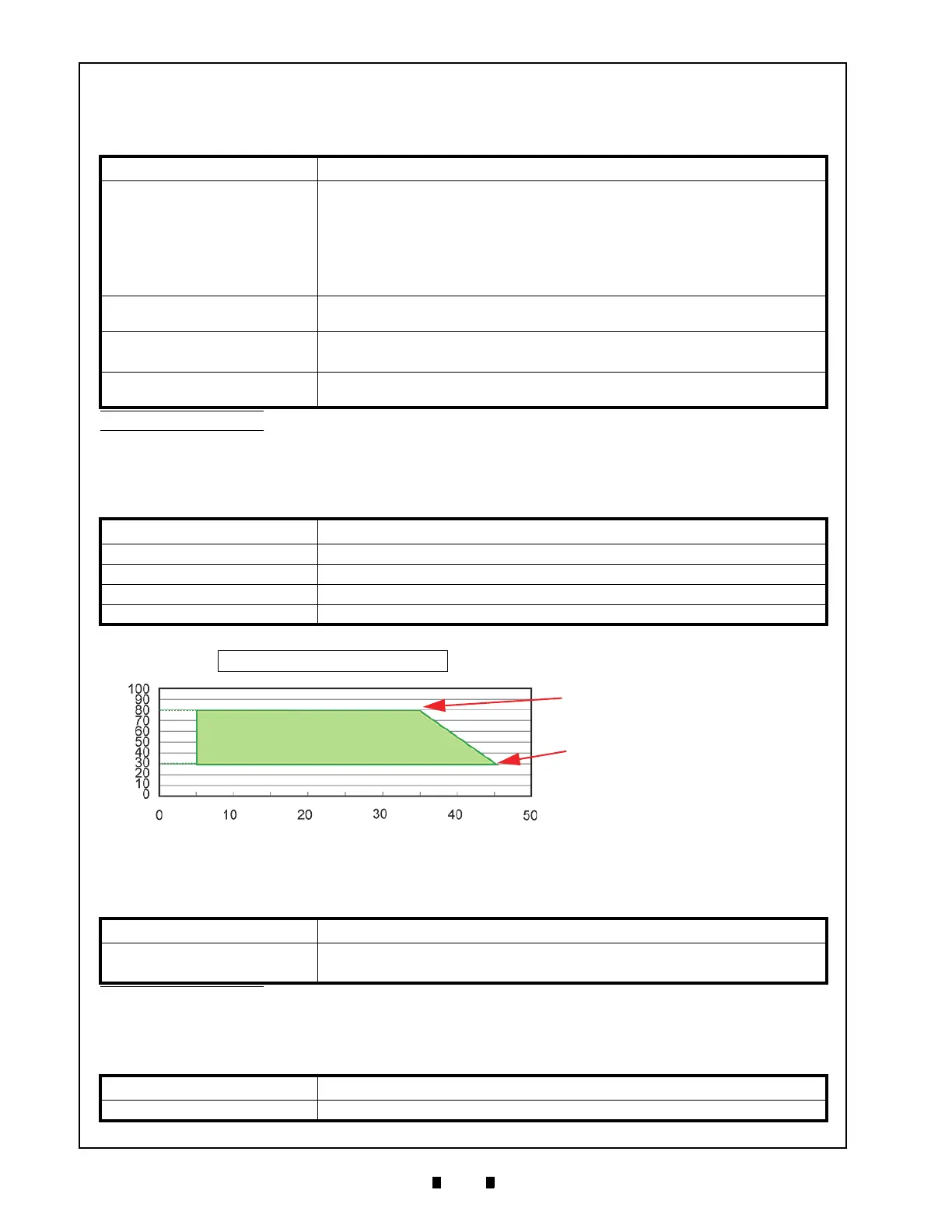

Hydrothermal Condition Table
35ºC(86ºF)/80%RH
45ºC(113ºF)/30%RH
Temperature (ºC)
Humidity (%RH)
Allowable Operating Temperature
and Humidity Range
