Jet JDP-15F User Manual

Table size Depth x Width 320 x 454mm
Table slots (4x) 15 x 70mm
Table T-slots (2x) 13mm
Table T-slots distance 270mm
Table insert (MDF) 95 x 95 x 16-19mm
Table tilt +/- 90°
Workpiece weight on the table max 30kg
Column diameter 73mm
Base size D x W 460 x 288mm
Base working surface D x W 200 x 240mm
Base slot (2x) 15 x 160mm
Base slot distance 126mm
Base mounting hole distance (2x Ø 11) 200mm
Overall D x W x H 677 x 434 x 1115mm
Net weight 71 kg
JDP-15F:
Number of spindle speeds 16
Range of speeds 180 - 2900 rpm
Spindle taper MT2
Keyless chuck (arbor MT2/B16) 1-16mm
Spindle travel 80mm
Quill diameter 47mm
Distance spindle to column 190mm
Distance spindle to table max 778mm
Distance spindle to base 1182mm
Table size Depth x Width 320 x 454mm
Table slots (4x) 15 x 70mm
Table T-slots (2x) 13mm
Table T-slots distance 270mm
Table insert (MDF) 95 x 95 x 16-19mm
Table tilt +/- 90°
Workpiece weight on the table max 30kg
Column diameter 73mm
Base size D x W 480 x 288mm
Base working surface D x W 200 x 240mm
Base slot (2x) 15 x 160mm
Base slot distance 126mm
Base mounting hole distance (2x Ø 11) 200mm
Overall D x W x H 677 x 434 x 1623mm
Net weight 79 kg
JDP-17:
Number of spindle speeds 16
Range of speeds 180 - 2900 rpm
Spindle taper MT2
Keyless chuck (arbor MT2/B16) 1-16mm
Spindle travel 127mm
Quill diameter 52mm
Distance spindle to column 215mm
Distance spindle to table max 763mm
Distance spindle to base 1194mm
Table size Depth x Width 356 x 483mm
Table slots (4x) 15 x 79mm
Table T-slots (2x) 13mm
Table T-slots distance 270mm
Table insert (MDF) 95 x 95 x 16-19mm
Table tilt +/- 90°
Workpiece weight on the table max 30kg
Column diameter 80mm
Base size D x W 507 x 328mm
Base working surface D x W 217 x 271mm
Base slot (2x) 15 x 178mm
Base slot distance 130mm
Base mounting hole distance (2x Ø 11) 200mm
Overall D x W x H 723 x 483 x 1679mm
Net weight 86 kg
4.2 Noise emission
Acoustic pressure level
(according to EN ISO 11202, inspection tolerance 4 dB):
Idling at 2300rpm LpA 70 dB(A)
The specified values are emission levels and are not
necessarily to be seen as safe operating levels.
As workplace conditions vary, this information is intended to
allow the user to make a better estimation of the hazards and
risks involved only.
4.3 Content of delivery

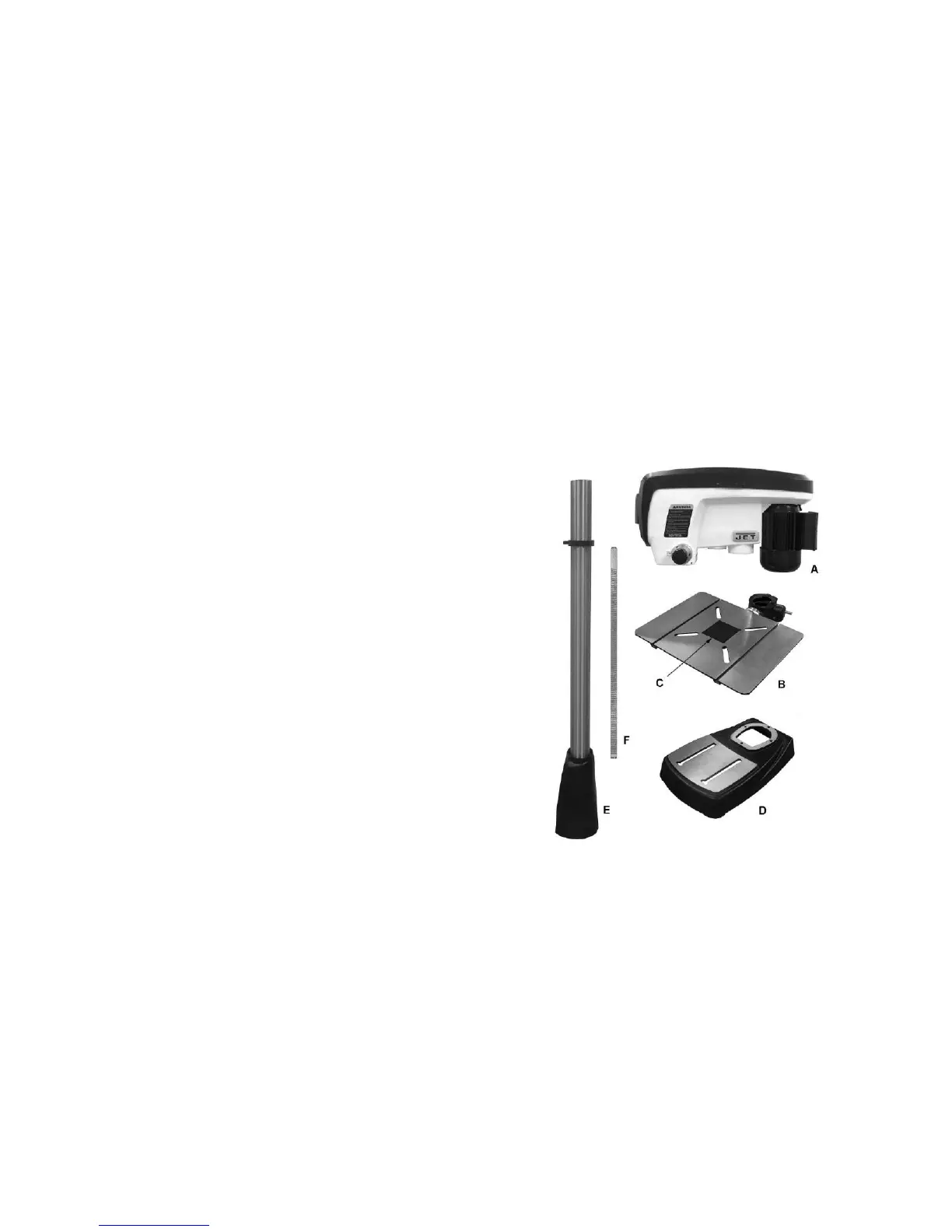

Fig 1
Head assembly
Table assembly with MDF-table insert
Machine base
Column and bracket assembly
Rack
