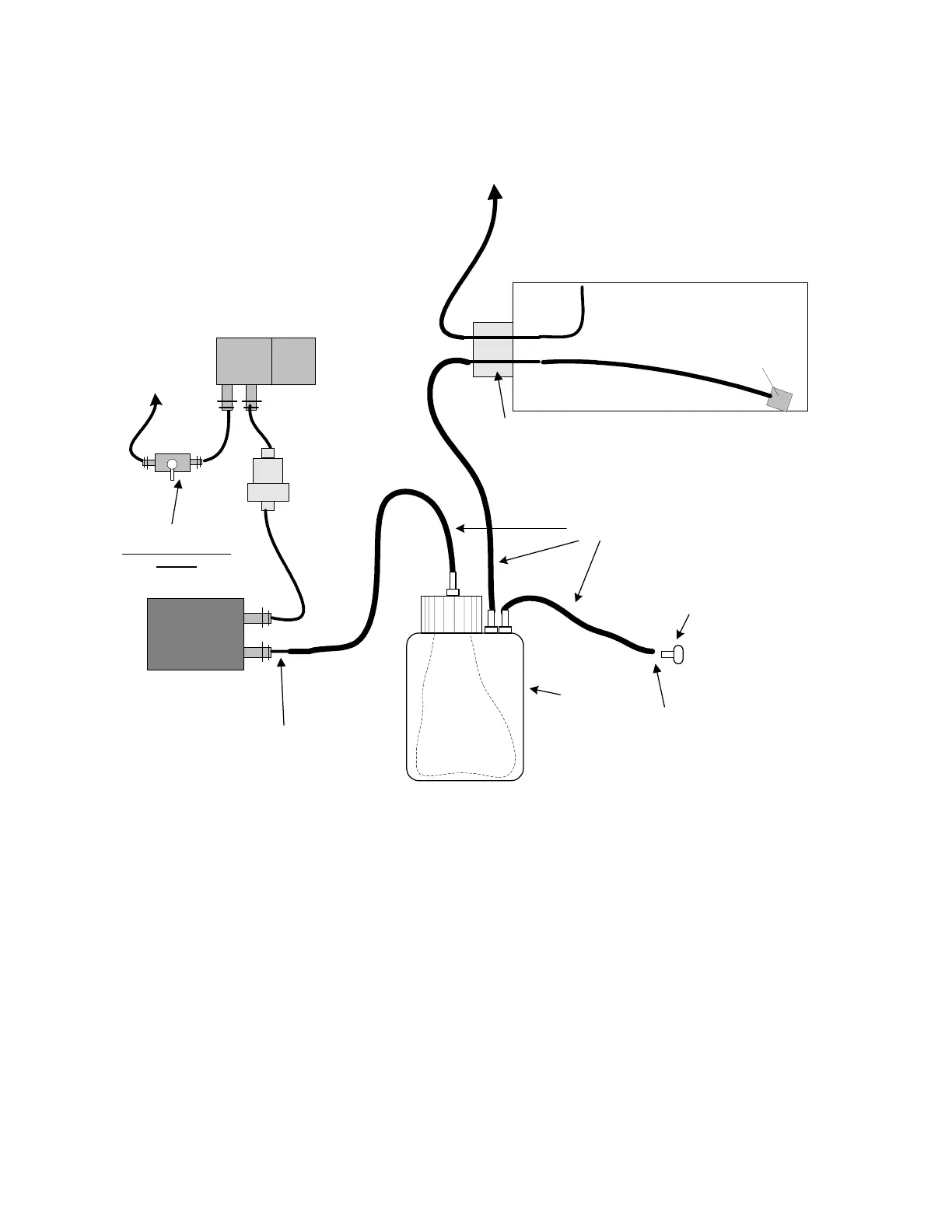

Fuel System Connection Diagram
Main Tank(s)
Brass clunk
Vent
To Turbine Fuel
Connection
Tank Fill
(Kerosene)
Neoprene
Stopper !
Note: All tubing 4mm(except as noted)
in
out
Fuel
Pump
Kerosene Shut Off
Valve
Safety Petcock
!open before starting
turbine!
Filter
BVM
UAT
1/4 inch section of 4 mm
tubing acts as an adapter for
large BVM UAT tubing
BVM UAT supplied tubing
BVM UAT supplied plug
The UAT is available from JetCat USA,LLC or Bob Violett Models, Florida (407) 327-
6333.
