AD-1272 Advanced Thermal Dispersion Probe Airflow Measuring System Technical Bulletin
3
AD-1272 Advanced Thermal Dispersion Probe Airflow
Measuring System
Technical Bulletin
Document Introduction
This document describes the AD-1272 Advanced Thermal Dispersion Probe Airflow Measuring System’s features
and functions. It also provides guidelines and instructions for setting up and troubleshooting these devices used in
plenum and duct applications.
Navigating the Start-Up Menu
After installing the AD-1272 Airflow Measuring System, power on the unit. Menu options appear on the front panel
LCD display of the primary transmitter and are replicated on the Remote Display (see Figure 1). The LCD display
has a 16-character per line, 2-line display.
When the device is first powered on, the display boot screen indicates the firmware version.

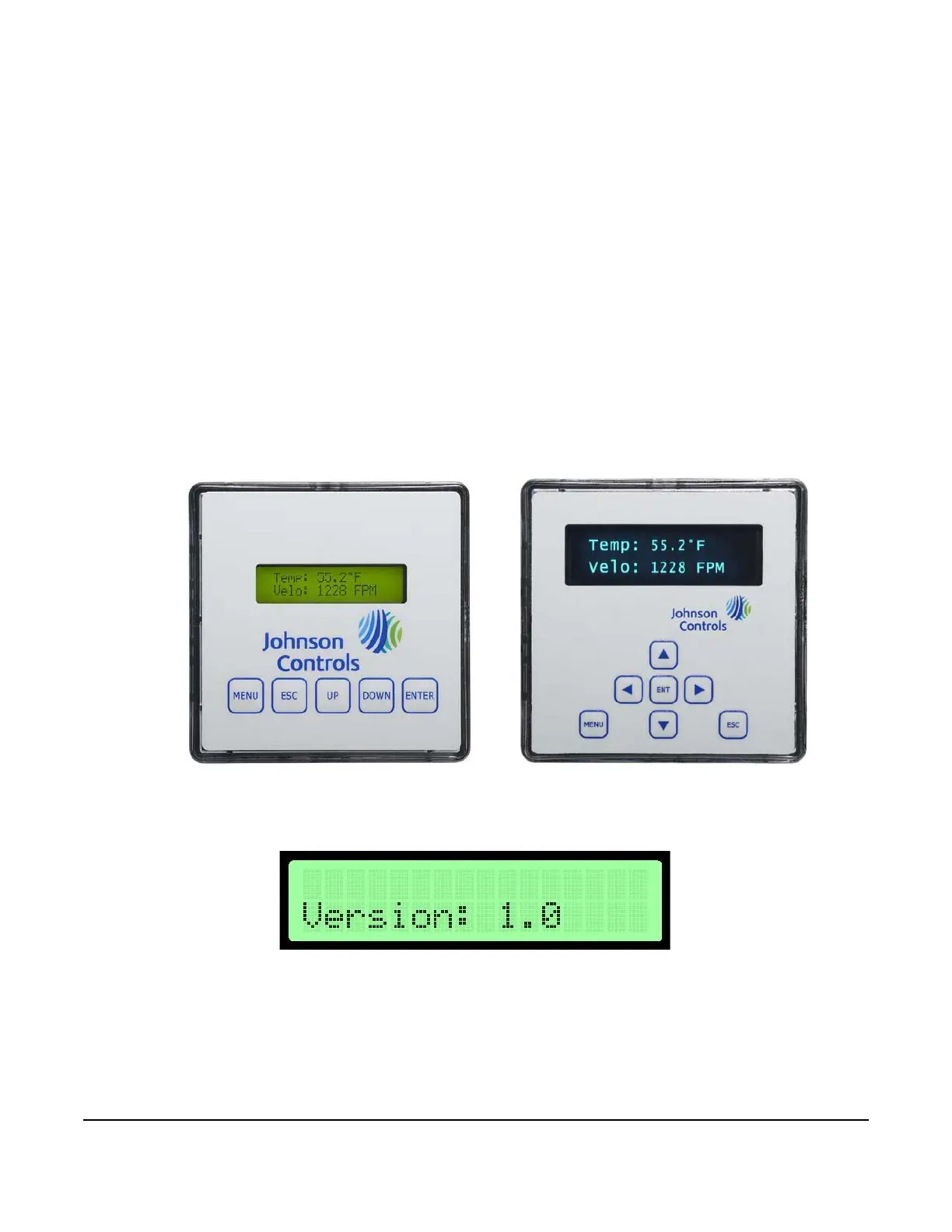

Figure 1: Front Panel LCD Display of Primary and Wired Remote AD-1272 Transmitter
(Left) and Wireless Remote Display (Right)
Figure 2: Firmware Version
