AD-1272 Advanced Thermal Dispersion Probe Airflow Measuring System Technical Bulletin
31
BACnet Network Configuration
The BACnet Network Configuration submenu turns BACnet on or off and configures parameters based on the
BACnet type.
Table 14: BACnet Network Configuration Submenu Selections and Configurable Options
BACnet Network
Configuration
Submenu
Selections
Configurable Options
BACnet On/Off Select On or Off.
BACnet Instance Update the currently selected value. The instance number must be unique from all BACnet devices on
the entire system. The range of values is 1 to 4,194,302.
BACnet Address Select a value between 4 and 127. Holding down the button increases the rate the value updates.
BACnet Max Mast Select a value between 1 and 127. Holding down the button increases the rate the value updates.
BACnet Baud Rate Select the 9,600, 19,200, 38,400 (default), or 76,800 baud rate.

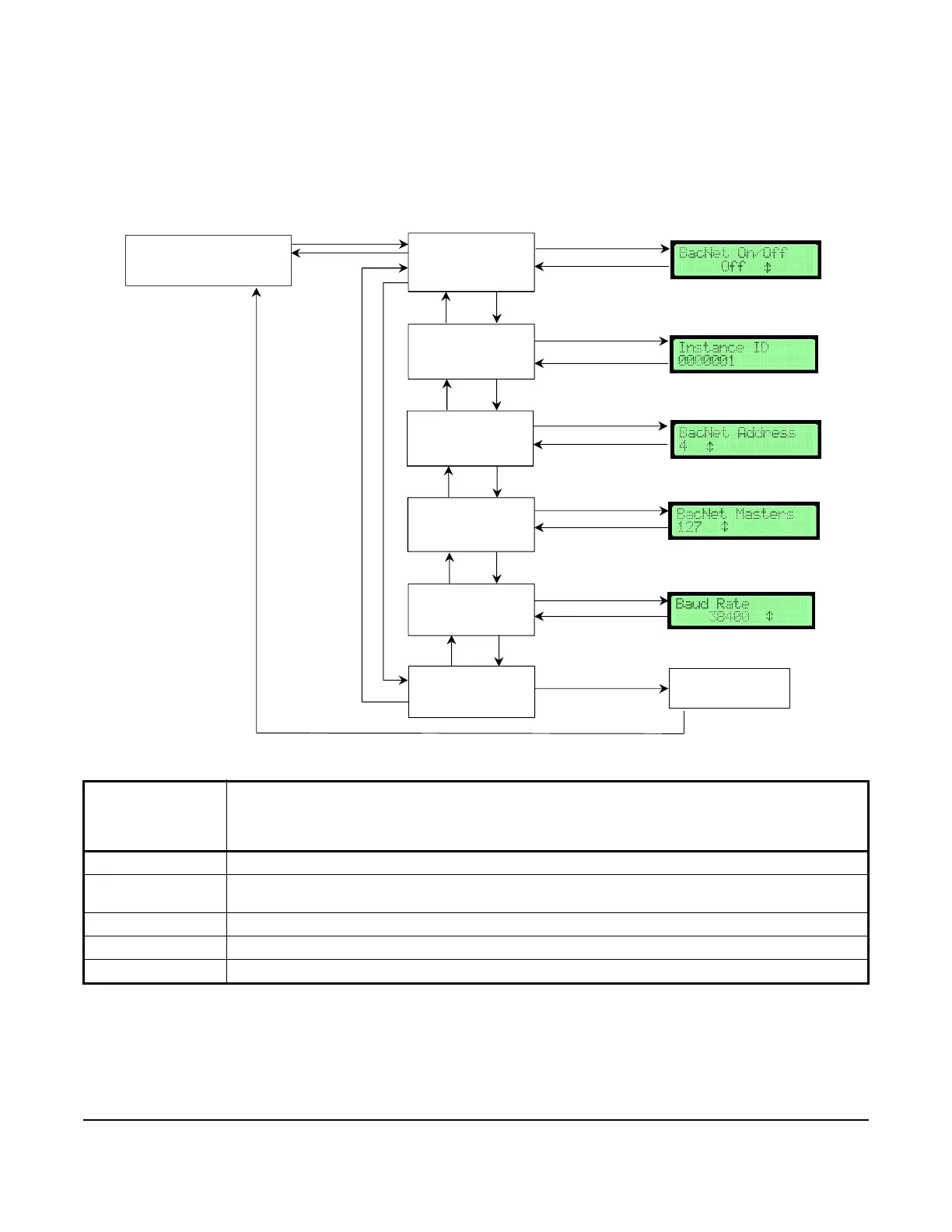

Figure 57: BACnet Configuration Flowchart
BACNet Instance
BACNet Network BACNet On/Off
UP
DOWN
ENTER
ENTER
ESC or ENTER
ESC
ENTER
ESC or ENTER
BACNet Address
ENTER
ESC or ENTER
UP DOWN
BACNet Max
Masters
ENTER
UP
DOWN
ESC or ENTER
BACNet Baud
Rate
ENTER
UP
DOWN
ESC or ENTER
Exit this Menu
UP
DOWN
ENTER
*Default values shown
UP
DOWN
Returns to
Operator Menu
Con iguration
f
Selected Submenu
Submenu Selections
Submenu Selection Display
F
I
G
:
f
l
o
w
c
h
a
r
t
_
b
a
c
n
e
t
_
n
e
t
w
o
r
k
