Johnson Controls AD-1272 User Manual

AD-1272 Advanced Thermal Dispersion Probe Airflow Measuring System Technical Bulletin
33
BACnet Flow Alarm Configuration
The BACnet Flow Alarm Configuration submenu is only available when BACnet is on (see BACnet Network
Configuration). Alarm parameters can be configured including high and low alarms, setpoints, and alarm delay.
Table 15: BACnet Flow Alarm Configuration Submenu Selection and Configurable Options
BACnet Flow Alarm
Configuration
Submenu Selections
Configurable Options
Alarm Low On/Off Select On or Off.
Alarm High On/Off Select On or Off.
Alarm Low Setpoint Choose a value the flow must go below for an alarm condition to exist.
Alarm High Setpoint Choose a value the flow must surpass for an alarm condition to exist.
Alarm Deadband
Setpoint
Choose a value of flow the controller must reach above the Alarm Low Setpoint for Alarm Low or
below the Alarm High Setpoint for Alarm High before an activated alarm resets. The display units
are the same as those chosen in the Display Configuration
submenu and flow configuration.
Alarm Delay Select the amount of time between any alarm condition and the BACnet Flow Alarm Low and High
activation. This value is adjustable between 0 and 10 minutes.

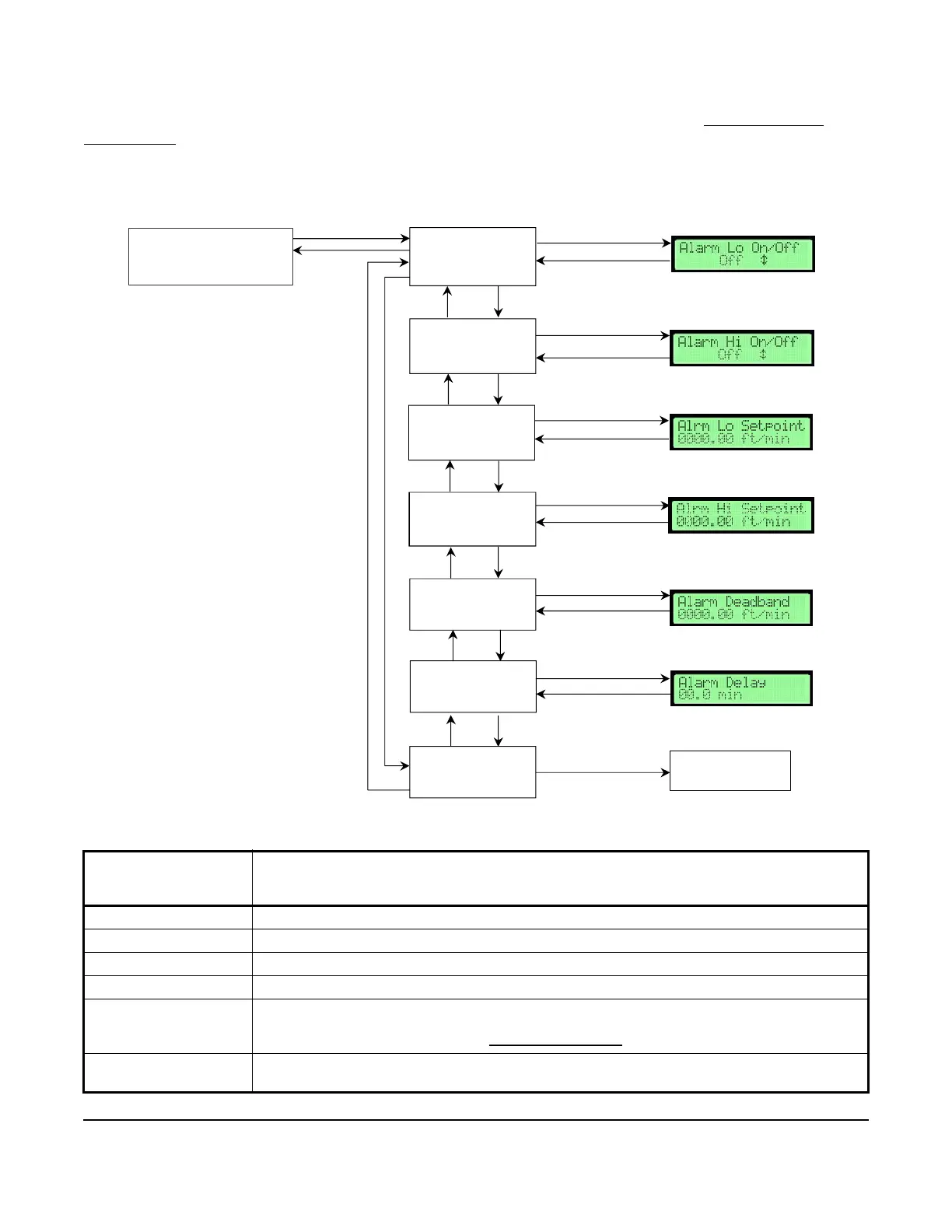

Figure 59: BACnet Flow Alarm Configuration Flowchart
UP
DOWN
Alarm High On/Off
BACNet Flow Alarm
Alarm Low On/Off
UP
DOWN
ENTER
ENTER
ESC or ENTER
ESC
ENTER
ESC or ENTER
Alarm Low
Setpoint
ENTER
ESC or ENTER
UP DOWN
Alarm High
Setpoint
ENTER
UP
DOWN
ESC or ENTER
Alarm Deadband
ENTER
ESC or ENTER
Alarm Delay
ENTER
UP
DOWN
ESC
*Default values shown
UP
DOWN
Exit this Menu
ENTER
DOWN
UP
Returns to
Operator Menu
Selected Submenu
Submenu Selections
Submenu Selection Display
F
I
G
:
f
l
o
w
c
h
a
r
t
_
b
a
c
n
e
t
_
?
o
w
