210.100-IOM (JUL 2021)
Page 18
AcuAir Hygienic Air Units
Installation
CAULK
CAULK
CAULK
CAULK
CAULK ALONG SCREW
HOLE LOCATION
#10-16 SS TEK SCREW
W/EPDM WASHER (TYP)
CAULK
SHIPPING SPLIT COVER
SHIPPING
SPLIT COVER
SHIPPING SPLIT
SHIPPING SPLIT
SHIPPING SPLIT COVER
SHIPPING SPLIT COVER
DETAIL B
DETAIL A
Acceptable Polyurethane Caulking:
Manus-bond, Gray, P/N 013-02966-001
Manus-bond, Champagne, P/N 013-03317-220
Bostik, Gray, P/N 013-03318-170
Bostik, Champagne, P/N 013-03319-170

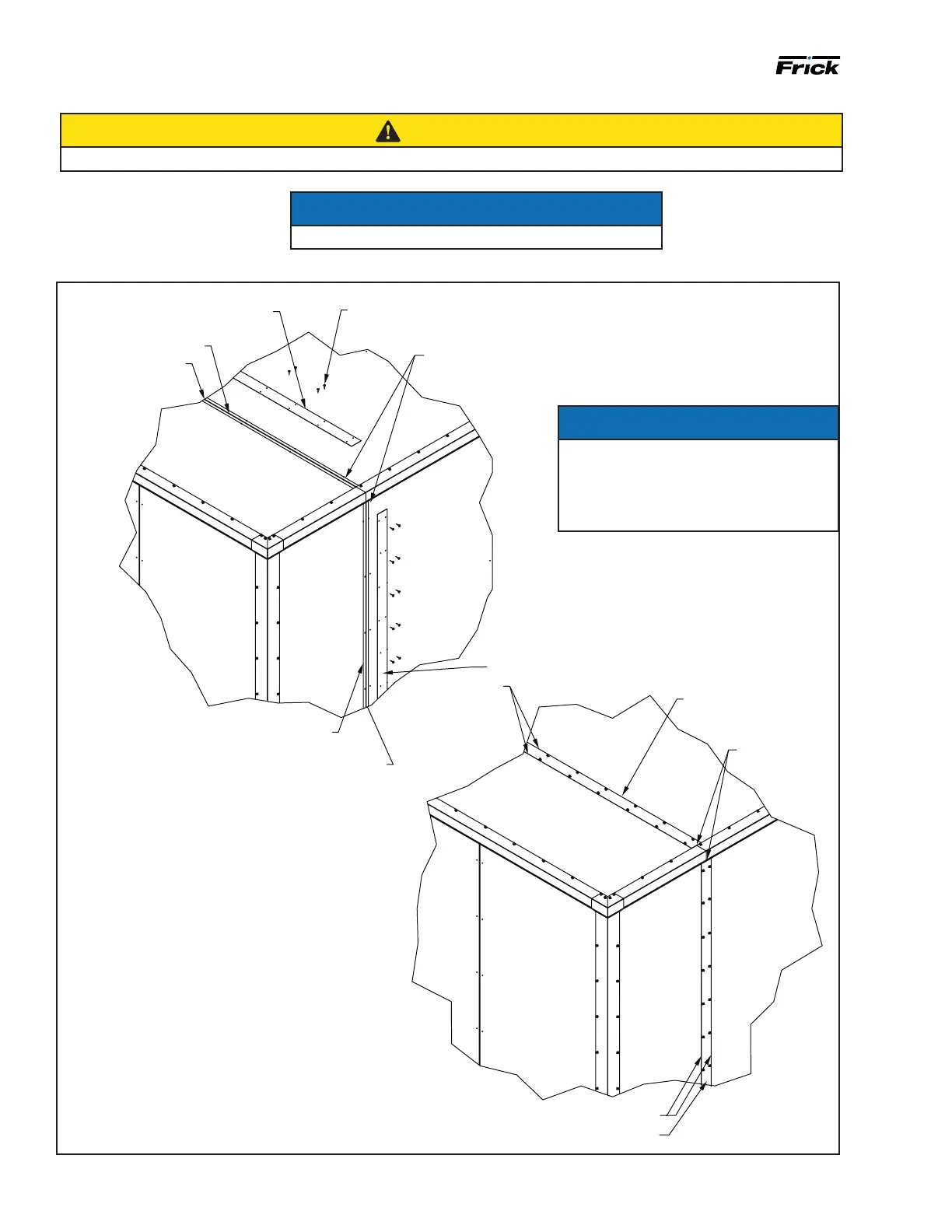

Figure 13: Split reassembly procedure for AcuAir performance series units only
CAUTION
Do not use silicone caulking on eld reconnects or on shipping split covers.
NOTICE
Only use caulking shipped with unit.
NOTICE
Shipping split covers ship with the air
handler installed to one side of the
reconnect. Remove cover and install
across the split as shown on Detail A and
B.
Acceptable Polyurethane Caulking:
Manus-bond, Gray
Bostik, Gray
