Point Select Screen Read Status
IFC-3030 Operations Manual — PN 52026:C 08/05/2005 41
Section 3 Read Status
This section contains instructions and screen illustrations for Read Status functions and menus
using the IFC-3030 display.
Read Status allows viewing of detailed device status information without entering a password or
halting full fire protection. Information can be viewed while a fire alarm or trouble condition exists.
Read Status screens are refreshed periodically with up-to-date information.
Read Status can be reached from the Main Menu screen, which is accessible from the System
Normal screen and from most other screens by pressing the BACK soft key until it displays. (Refer
to Figure 1.5 for an illustration of the Main Menu screen.)
Press the READ STATUS soft key on the Main Menu screen to bring up the following screen.
3.1 Point Select Screen
When READ STATUS is pressed at the Main Menu, the following screen appears.

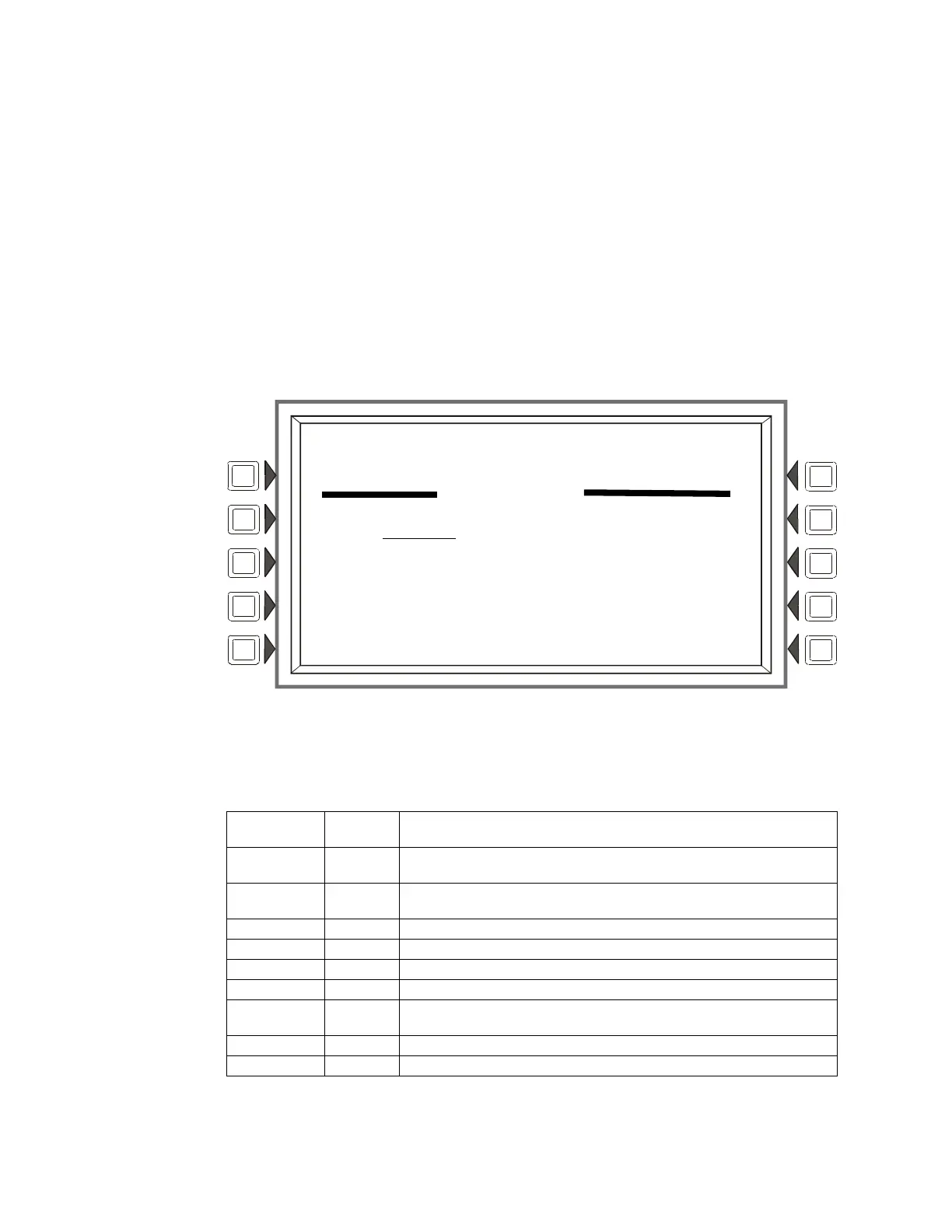

Figure 3.1 Point Select Screen for Read Status
Soft Keys
POINT SELECT - Pressing this soft key scrolls through the various device types. The types and
their address formats are illustrated in Table 3.1.
Table 3.1 Address Formats
Enter an address to view its attributes (the cursor will be in the underlined section).
Type Address
Format
Detector LyyDzzz L=Loop, yy=Loop number (1-10)
D=Detector, zzz=Detector address (1-159)
Module LyyMzzz L=Loop, yy=Loop number (1-10)
M=Module, zzz=Module address (1-159)
Panel Circuit Pyy.z P=Panel circuit, yy=Panel Module Number (1-12), z=panel module point (1-8)
General Zone Zyyy Z=Zone, yyy=Zone number (0-999)
Logic Zone ZLyyyy ZL=Logic Zone, yyyy=Logic Zone number(1-1000)
Release Zone Ryy R=Releasing Zone, yy=Releasing Zone number (00-09)
Special
Function Zone
ZFxx ZF=Special Function Zone, x=Special Function Zone number (00, 01, 02, 03,
04, 05, 09)
Trouble Zone ZTyyy ZT=Trouble Zone, yyy=Trouble Zone number (1-100)
Annunciator AxxPyy A=Annunciator, xx=ACS address (1-32), P=Point, yy=Point address (1-96)
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A FRI SEP 24, 2004
POINT SELECT
POINT SELECT:
LyyDzzz (DETECTOR)
NEXT POINT ACCEPT
PREVIOUS POINT BACK
