LX Series Unit Ventilator Controller User's Guide 13
Figure 2 shows the Unit Ventilator Controller input object and the output object.

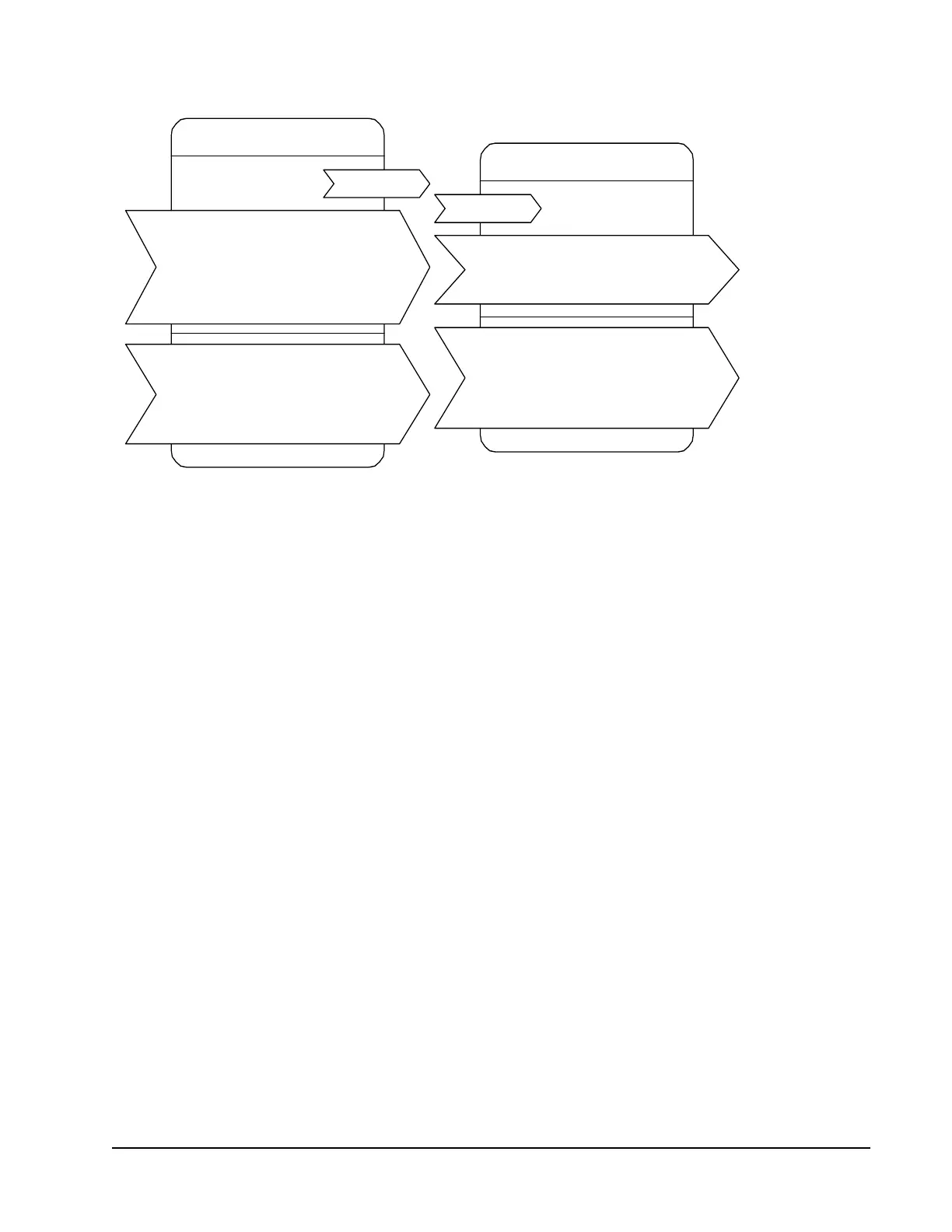

Figure 2: LX Series Unit Ventilator Controller Inputs and Outputs
6 x LX-UVL-1 Hardware Input
Object Type #1
nvoHwInput1
SNVT_xxx
Configuration Properties
Offset (optional)
Maximum Range (optional)
Minimum Range (optional)
Minimum Send Delta (optional)
Maximum Send Time (optional)
Minimum Send Time (optional)
Override Value (optional)
Mandatory
Network
Variables
Manufacturer Configuration Properties
Object Major Version
Object Minor Version
Input Signal Conditioning
Hardware Properties
Translation Table
Default Value
7 x LX-UVL-1 Hardware Output
Object Type #3
nviExtCmdOutput1
SNVT_switch
Configuration Properties
Maximum Receive Time (optional)
Override Value (optional)
Mandatory
Network
Variables
Manufacturer Configuration Properties
Object Major Version
Object Minor Version
Output Signal Conditioning
PWM Period
Hardware Properties
Default Value
