Baudrate—Select FIT baud rate to Auto Baud, 9600, 19200, 38400, 76800. Auto Baud
is default mode.
FitAddr—This menu allows the user to change the FIT address on the MS/TP bus.
The default address is 1. If the FIT determines there is already a device addressed at
1, it will automatically default to the next available free address.
Sys Time—Displays the amount of time FIT has been powered in seconds.
PowerOf—Displays the amount of time in minutes the FIT will stay in operation
before moving into a Sleeping mode. Adjustable from zero to 99 minutes. Default is
15 minutes and zero minutes means never enter sleep mode.
RS-485—Displays communication bit voltages, bit times and calculated baud rate of
the connected RS-485 circuit.

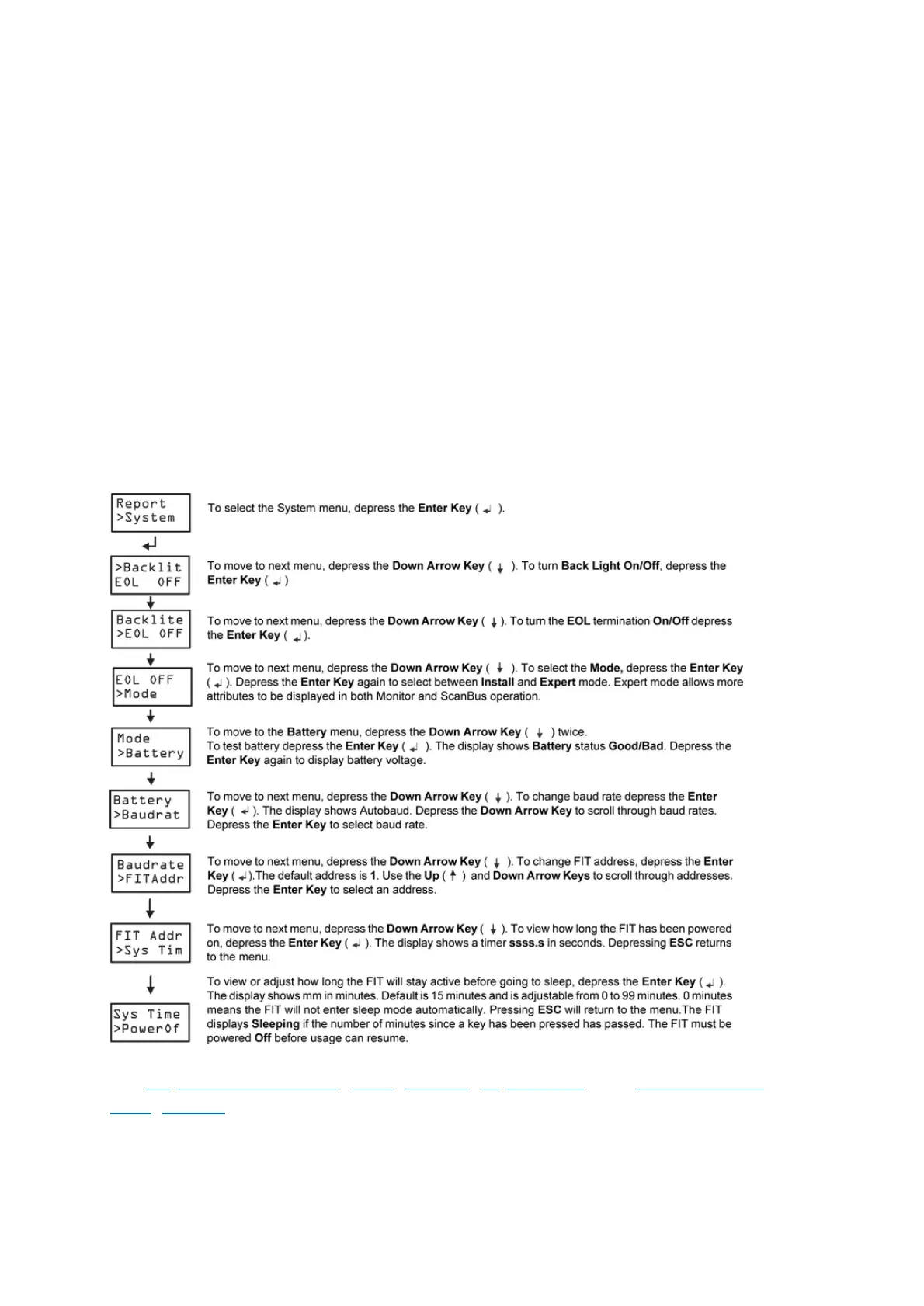

Figure 1. System Menu
See Proper EOL Termination , Voltage Levels , Report Menu , and Communication
Voltage Levels for more information.
