Johnson Controls MS-FIT100-0 User Manual

1/7/2021 PDF Export
https://docs.johnsoncontrols.com/bas/internal/api/webapp/print/b4118696-0b8a-4733-98fb-fdd04b065b15 29/60
The FIT identifies one EOL.
The FIT EOL should be ON.
Leave the Proper Shield Grounding Point at the NAE.
In scenario two, shown in Figure 18, the following is occurring:
The FIT is plugged into Johnson Controls Field Control Bus RJ.
The FIT identifies two EOLs.
The FIT EOL should be ON.
Leave the Proper Shield Grounding Point at the NAE.

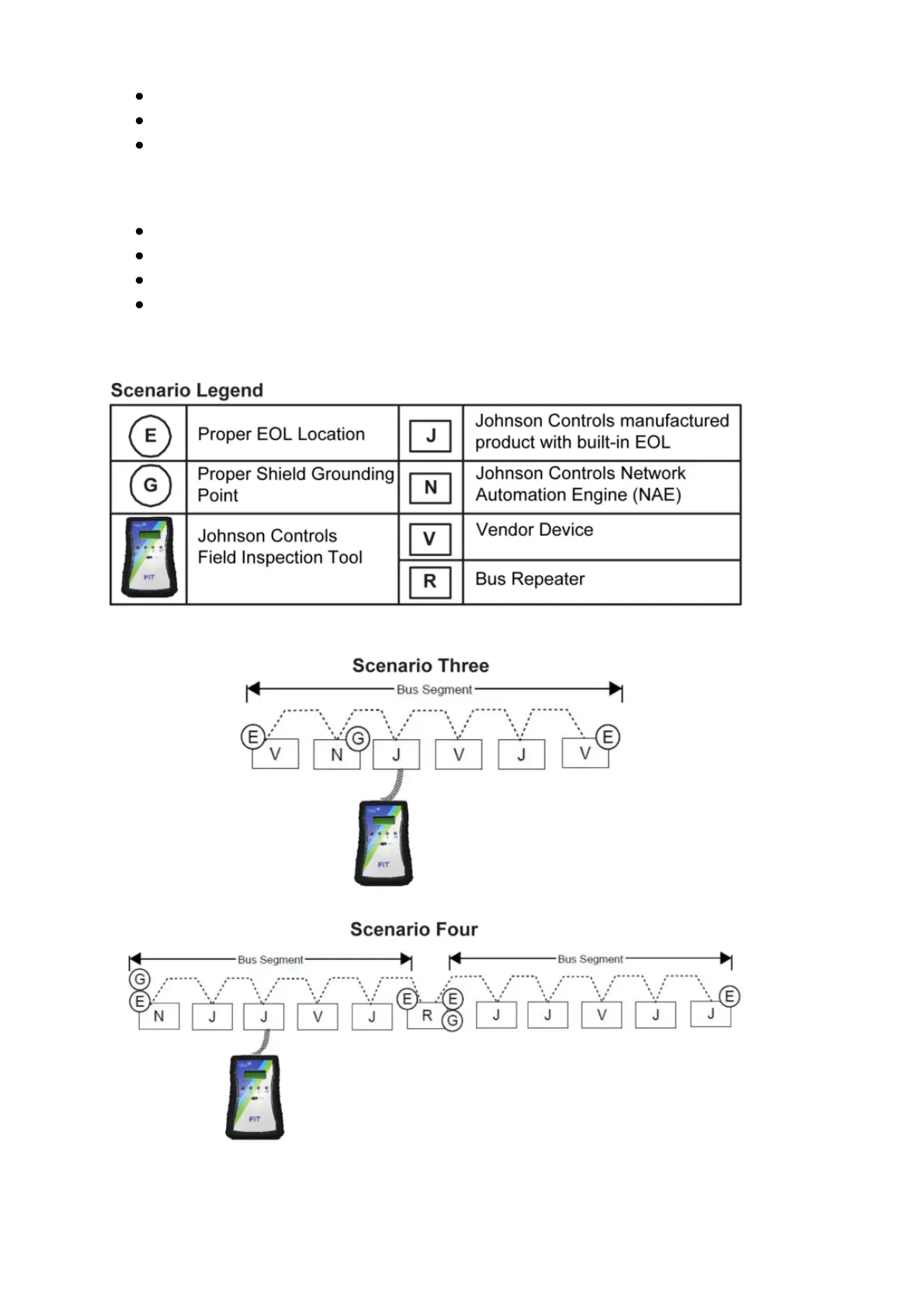

Figure 2. FIT Connection, EOL, and Shield Grounding Scenarios Three and Four
In scenario three, shown in Figure 19, the following is occurring:

Johnson Controls MS-FIT100-0 Specifications

General

Brand	Johnson Controls
Model	MS-FIT100-0
Category	Tools
Language	English
