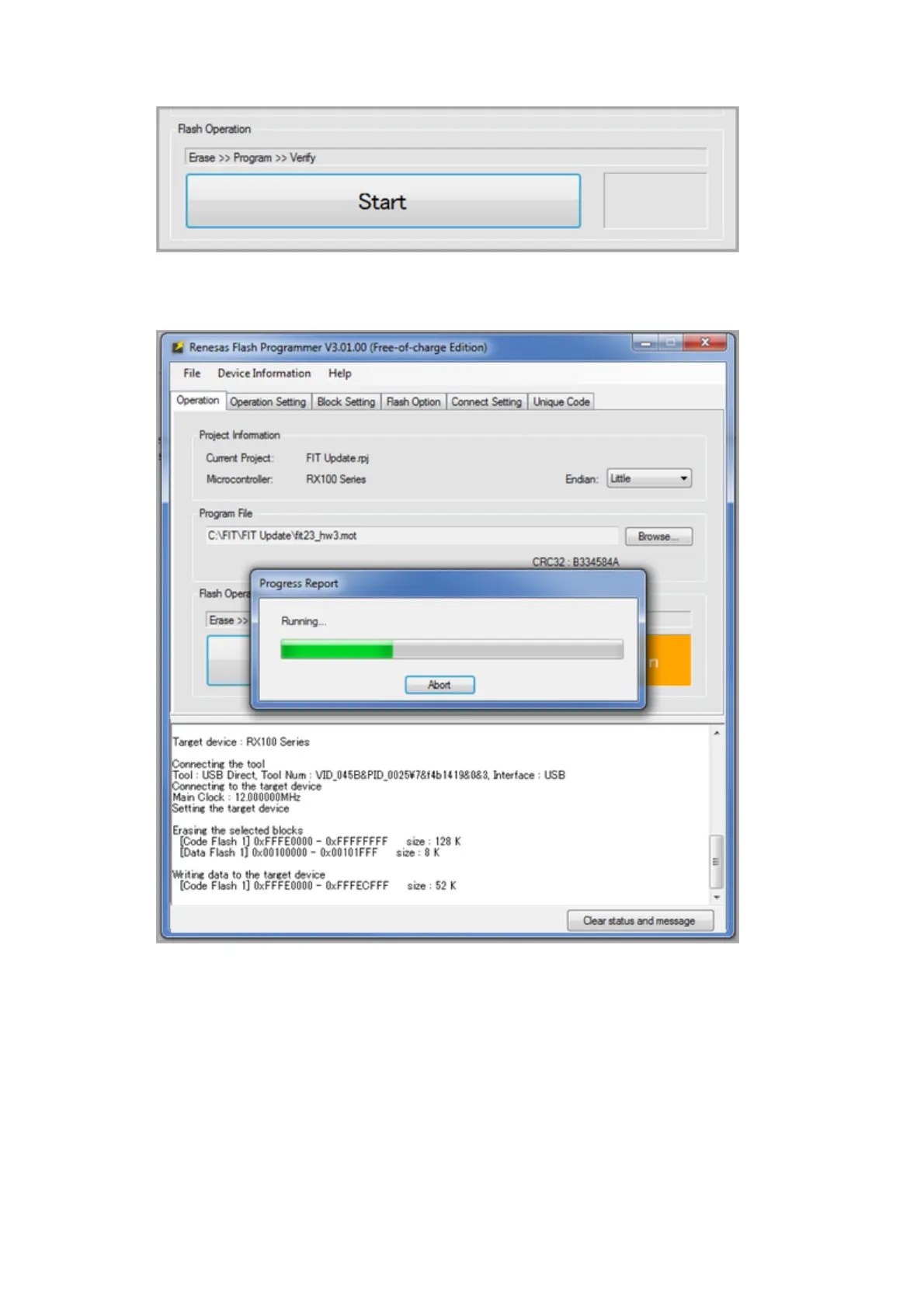

6. The flash programming should start as shown in Figure 40.
Figure 4. Flash Operation—Running
7. When the Renesas Flash Programming is complete, the window will look like
Figure 41.
Figure 5. Flash Operation—Complete
