RDR2S-A ADDRESS MODE AND PERFORMANCE

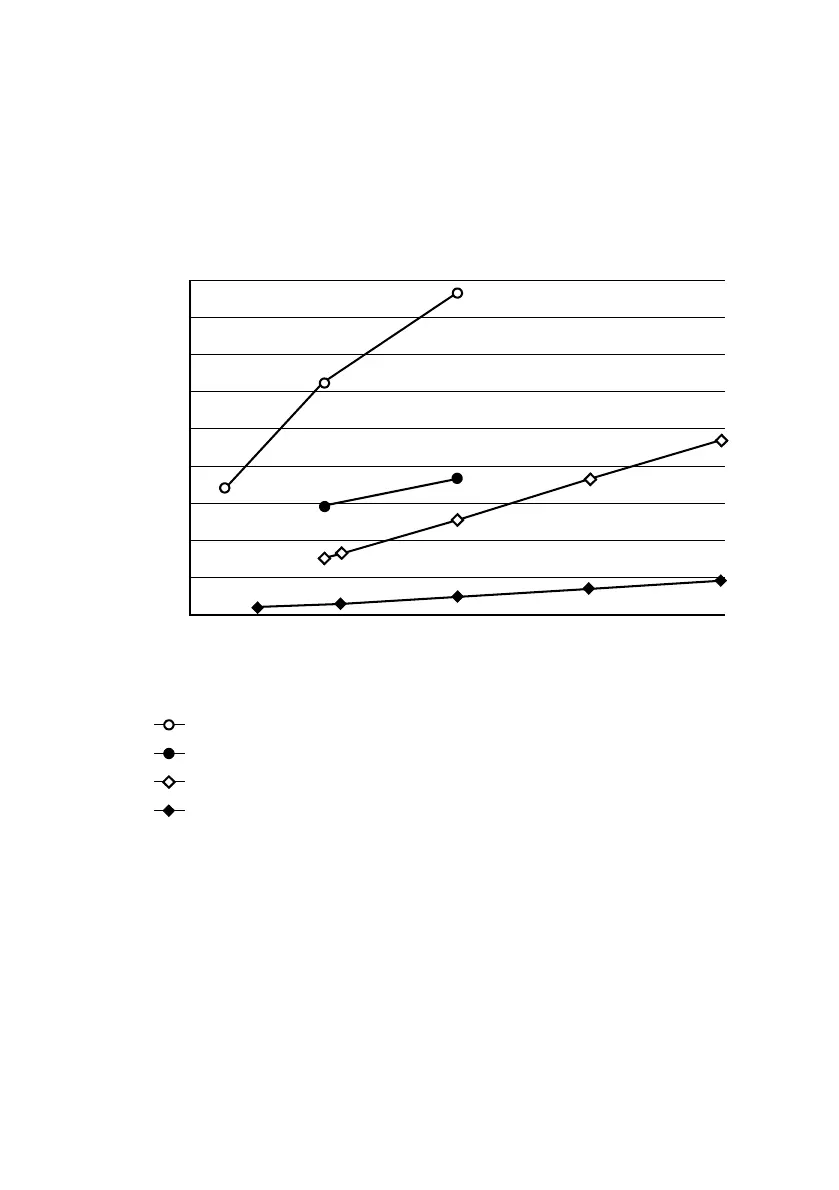

The following graph presents RDR2S-A performance data in physical versus
legacy address mode. The data was derived by connecting a specified number
of modules on the RS-485 bus and measuring the response time between
reading two badges by two readers on the same module and unlocking two
doors.
1800
1600
1400
1200
1000
800
600
400
200
0
CK721-A with I/O enabled on each legacy terminal pair
CK721-A with only reader enabled legacy terminals
CK721-A with RDR2S-A modules in physical addressing mode
CK722 with RDR2S-A modules in physical addressing mode
0 4 8 12 16 20 24 28 32
Number of RDR2S-A Modules
Average Response Time in ms
