RDR2S-A and I8O4 Hardware Installation Cable Requirements
24-10239-596 Rev. D
19
All cables must conform with the following regulations:
• National Electrical Code
•NFPA 70
• Local electrical codes
• Canadian Electric Code C22.1 (installations in Canada)
• BSI Standard BS7671, latest edition (installations in Great Britain)
Cabling should be made using good wiring practices and should be long
enough to allow service loops at their terminations in the enclosure.
Power Supply

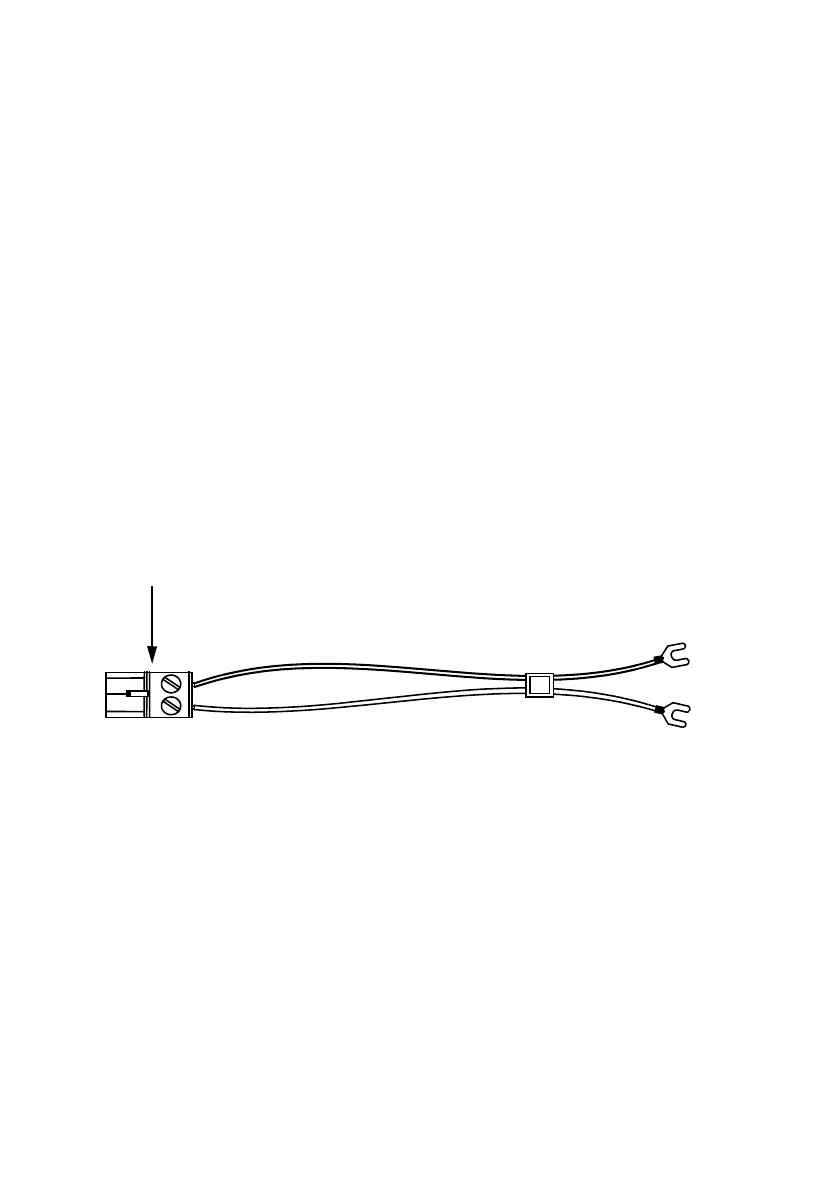

For power wiring with either the large or small enclosure, use the cable
assembly shown in the following figure. For more information refer to the
manual provided with the enclosure.
Connector (2-pole, gray) for
RDR2S-A or I8O4 module
COM
+12/24
VAC/VDC
connector
b
l
a
c
k
r
e
d
