127
GEARCASE
INSPECTION
8

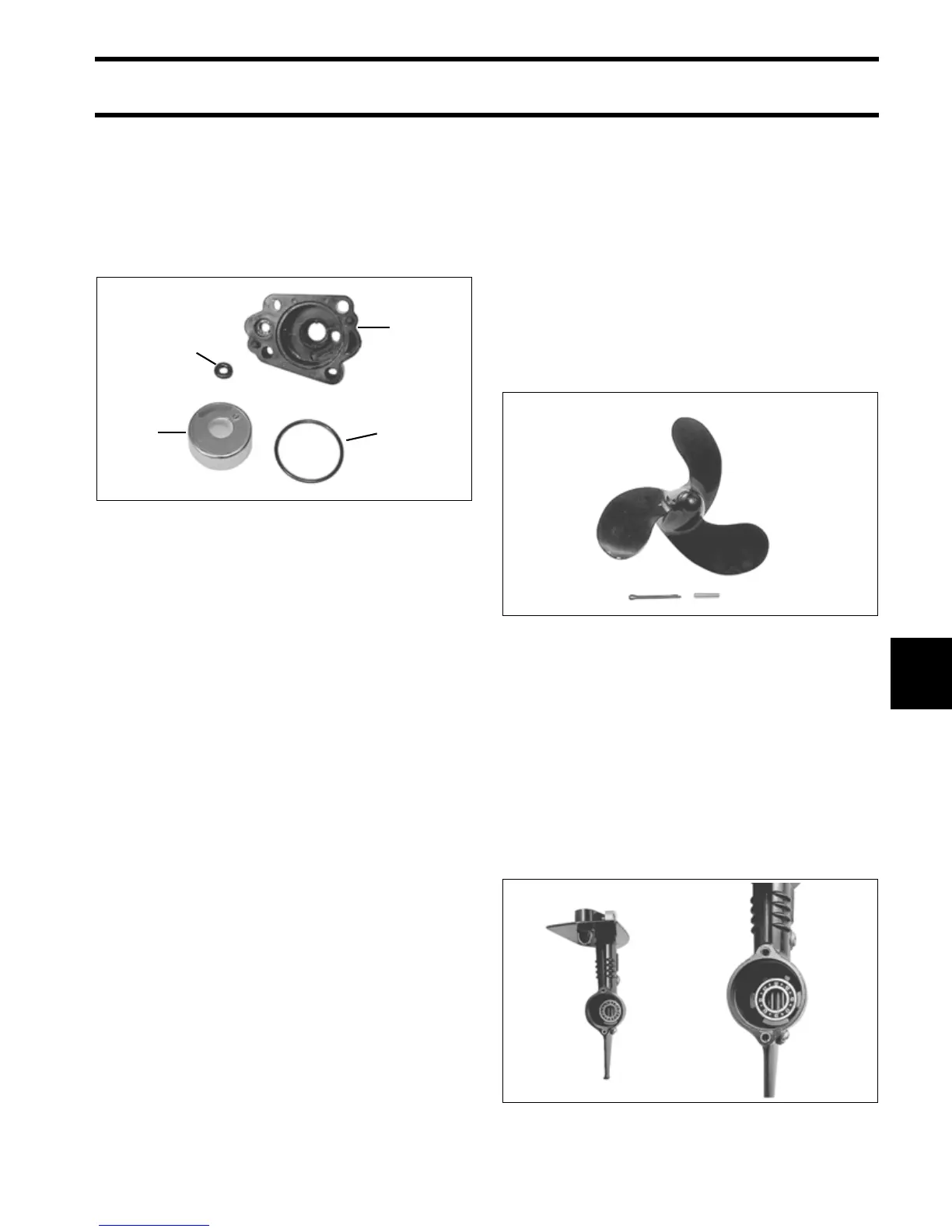

Water Pump
Separate the following parts:
• Water pump case seal
• Water pump case sleeve
• Water pump case
• O-ring
INSPECTION
IMPORTANT: If excessive wear, crack, defec-
tive or other damage is found on any component,
replace.
Propeller
Inspect the propeller. If bend, chip or other dam-
age is found on the blades, replace or repair the
propeller.
Inspect the shear pin. If bend or other damage is
found, replace the shear pin.
Gearcase Housing
Inspect the gearcase. If crack or other damage is
found, replace the gearcase.
Visually check the forward gear bearing. If pitting,
noisy, rough or other damage is found, replace
the bearing.
Visually check the driveshaft bushing. If excessive
wear, pitting or other damage is found, replace the
bushing.
1. Seal
2. Sleeve
3. Case
4. O-ring
006221
4
3
2
1
006222
006223
006224
