GEARCASE
ASSEMBLY

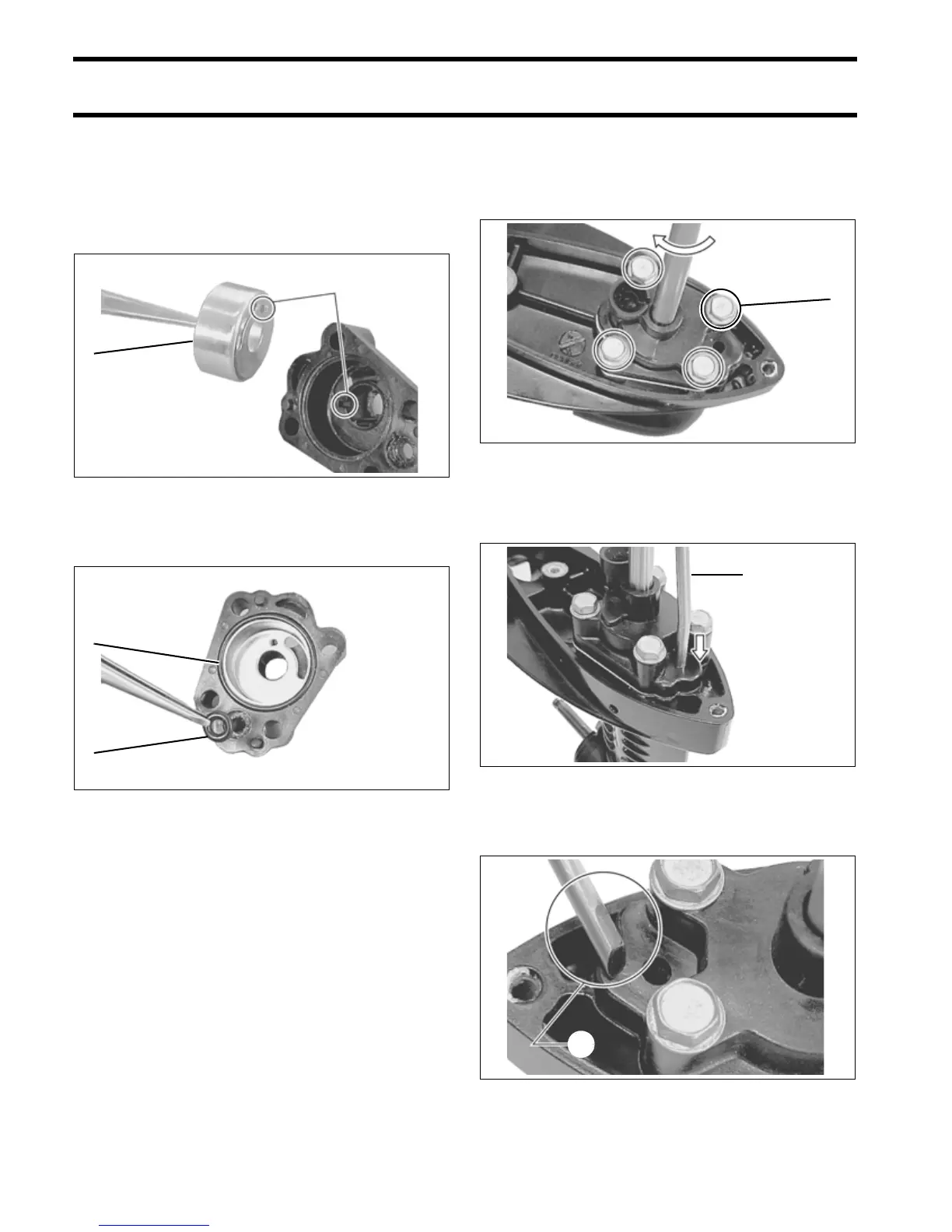

Apply ThreeBond 1207B sealant on the outer sur-
face of water pump sleeve.
Install the water pump sleeve into the water pump
case by confirming the boss on the sleeve should
be meeting with the groove on the pump case.
Install the water pump case seal. Apply Triple-
Guard grease to O-ring and install the O-ring.
Install the water pump case while rotating the
driveshaft clockwise in order to flex the impeller
vanes in the correct direction. Tighten the water
pump case bolts to torque of 3.5 ft. lbs. (5 N·m).
Shift Rod
Install the shift rod.
The stepped section of the shift cam must be posi-
tioned toward the propeller shaft.
1. Sleeve 006257
1. Seal
2. O-ring
006258
1
1
2
1. Bolt (4) 006259
1. Shift rod 006261
1. Shift cam, stepped section 006260
1
1
1
