69
FUEL SYSTEM
INSTALLATION
5

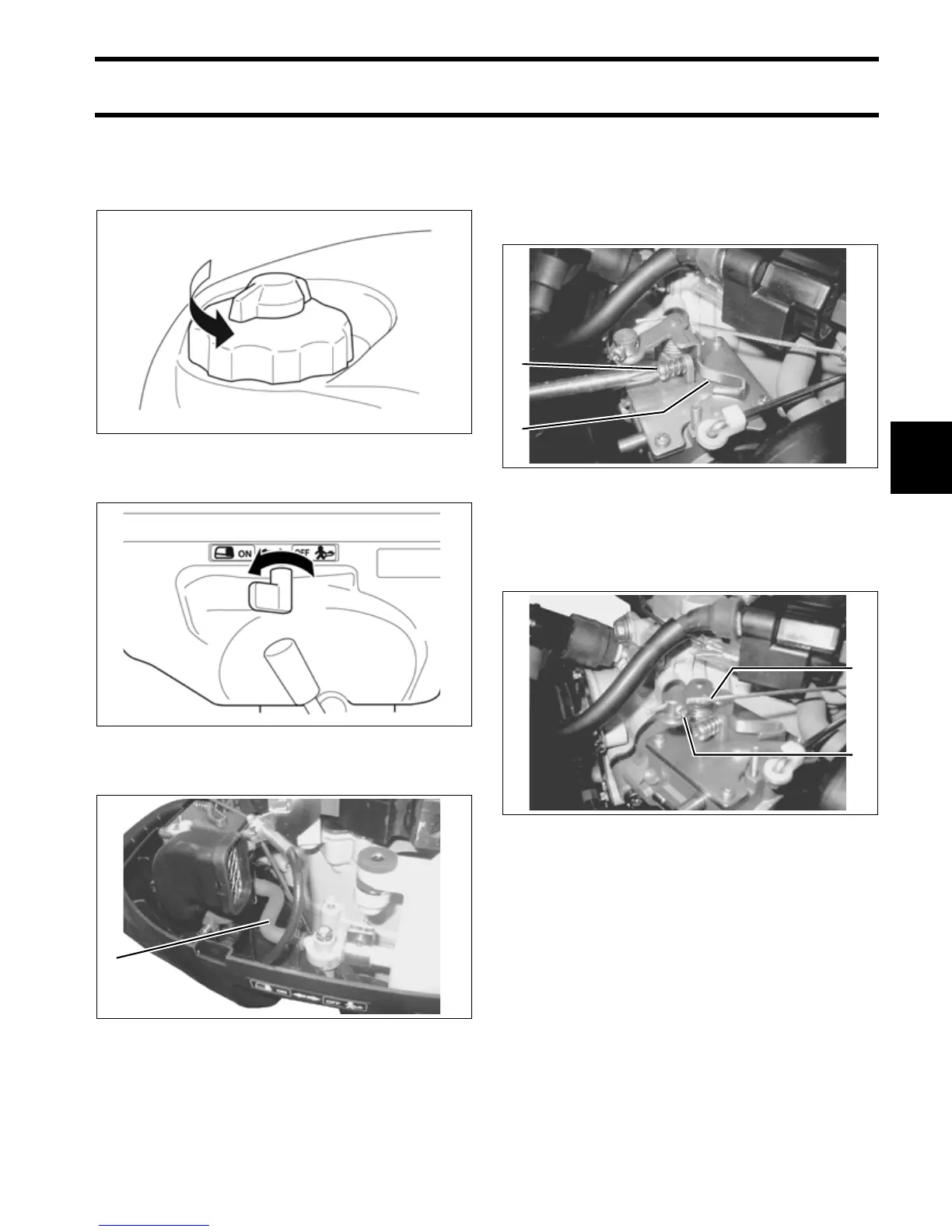

Leakage Check
Twist the air-vent screw on the fuel tank cap coun-
terclockwise to open the vent.
Turn the fuel cock lever “ON” position.
Check the fuel line for leaks.
Throttle Adjustment
Fully close the throttle control grip.
Turn the idle adjusting screw counterclockwise
until the screw does not touch the stopper plate.
Insert the throttle control inner cable into the link-
age hole. While pulling the cable, tighten the
screw in order to secure the cable.
Adjust the idle speed. Refer to IDLE SPEED on
p. 48.
005966
005967
1. Fuel line 005968
1
1. Screw
2. Stopper plate
005971
1. Cable
2. Screw
005972
1
2
1
2
