70
FUEL SYSTEM
FUEL TANK
FUEL TANK
Removal
Remove the motor cover.
Remove the recoil starter. Refer to MANUAL
STARTER on p. 139.
Turn the fuel cock lever to the “OFF” position.
Remove the fuel hose from the fuel cock.
Remove the fuel tank.
Loosen the connecting screw and remove the fuel
cock from the fuel tank.
Inspection
Check the filter. If clogged, or damaged is found,
clean the filter, or replace the fuel cock.
Inspect the fuel cock. If leakage, deterioration, or
other damage is found, replace the assembly.

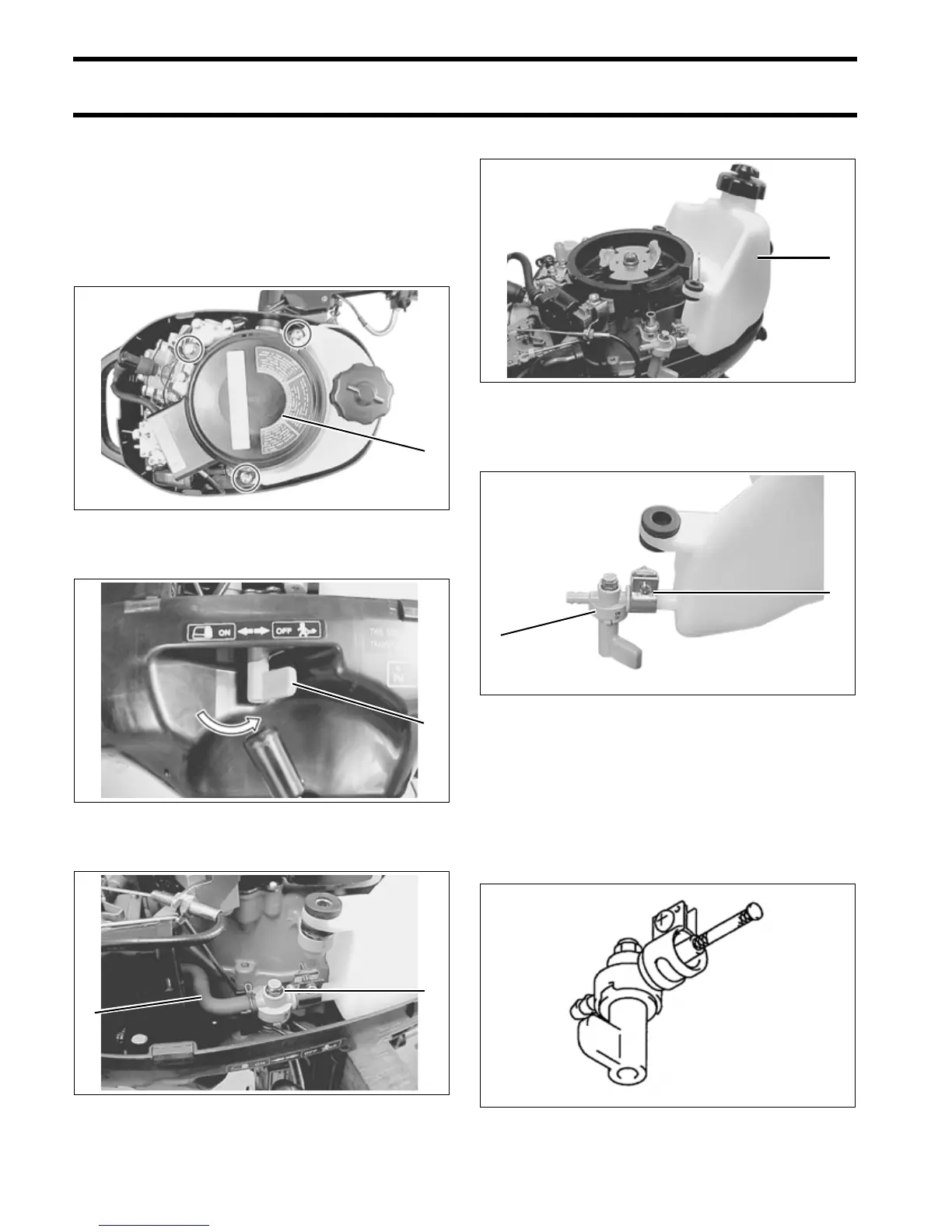

1. Recoil starter 005992
1. Fuel cock lever — OFF position 005993
1. Fuel hose
2. Fuel cock
005994
1
1
2
1
1. Fuel tank 005995
1. Screw
2. Fuel cock
005996
Fuel Cock and Filter 005997
1
1
2
