POWERHEAD
REMOVAL
6
REMOVAL
Before removing the powerhead:
• Drain the engine oil. Refer to Engine Oil on
p. 43.
• Shift into “NEUTRAL” position.
• Remove the recoil starter assembly. Refer to
MANUAL STARTER on p. 139.
• Remove the fuel tank. Refer to FUEL TANK on
p. 70.
• Remove the carburetor assembly. Refer to
CARBURETOR on p. 65.
• Remove the igniter unit and flywheel magneto.
Refer to Removal on p. 59.
• Remove the tiller handle assembly. Refer to
Tiller Handle on p. 112.

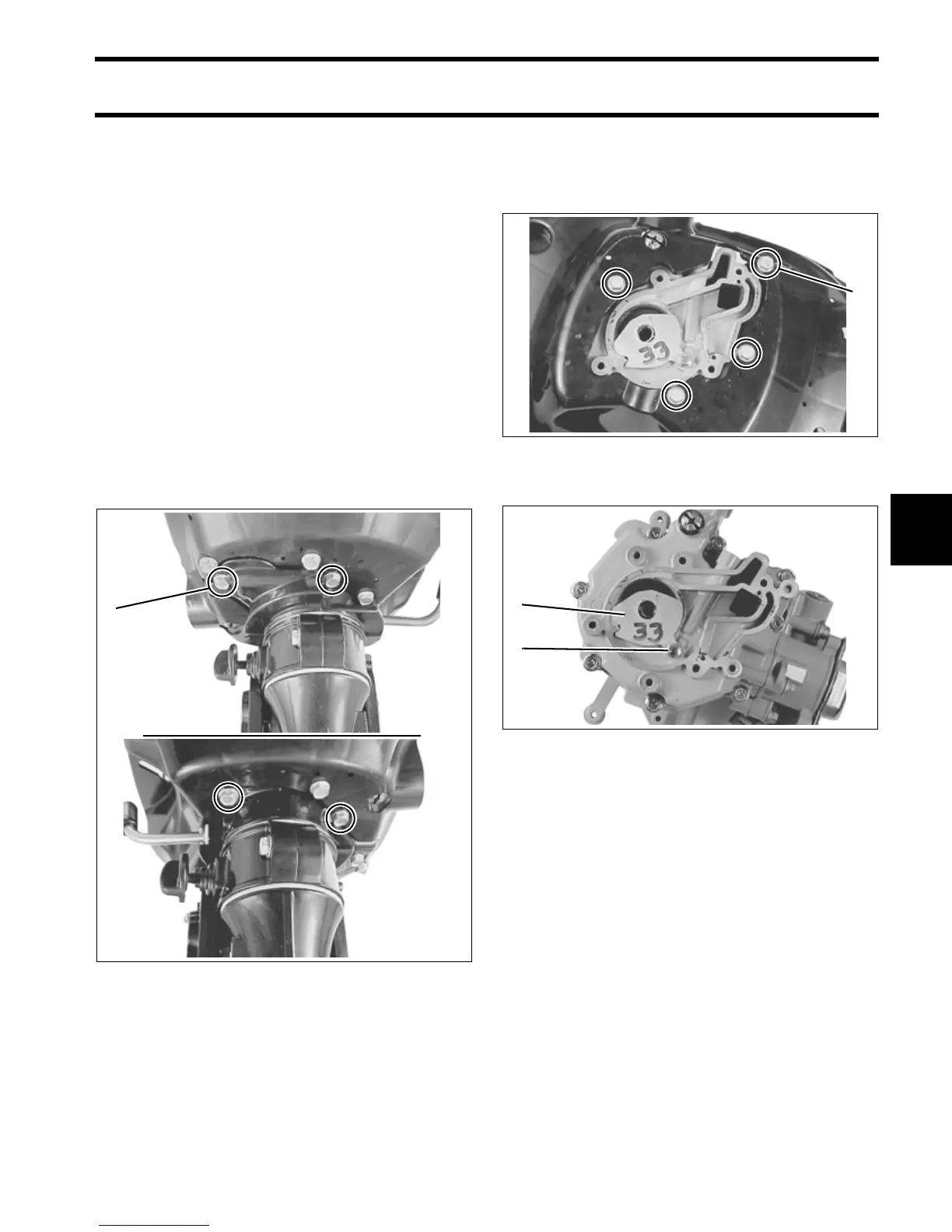

Remove the four engine mounting bolts.
Detach the powerhead and lower cover.
Remove the four lower cover bolts, then detach
the powerhead from the lower cover.
Remove the bolt and oil seal protector.
1. Bolt (4) 006002
006001
1
1. Bolt (4) 006003
1. Bolt
2. Oil seal protector
006004
1
2
1
