87
POWERHEAD
CYLINDER/CRANKCASE/PISTON
6
CYLINDER/CRANKCASE/
PISTON

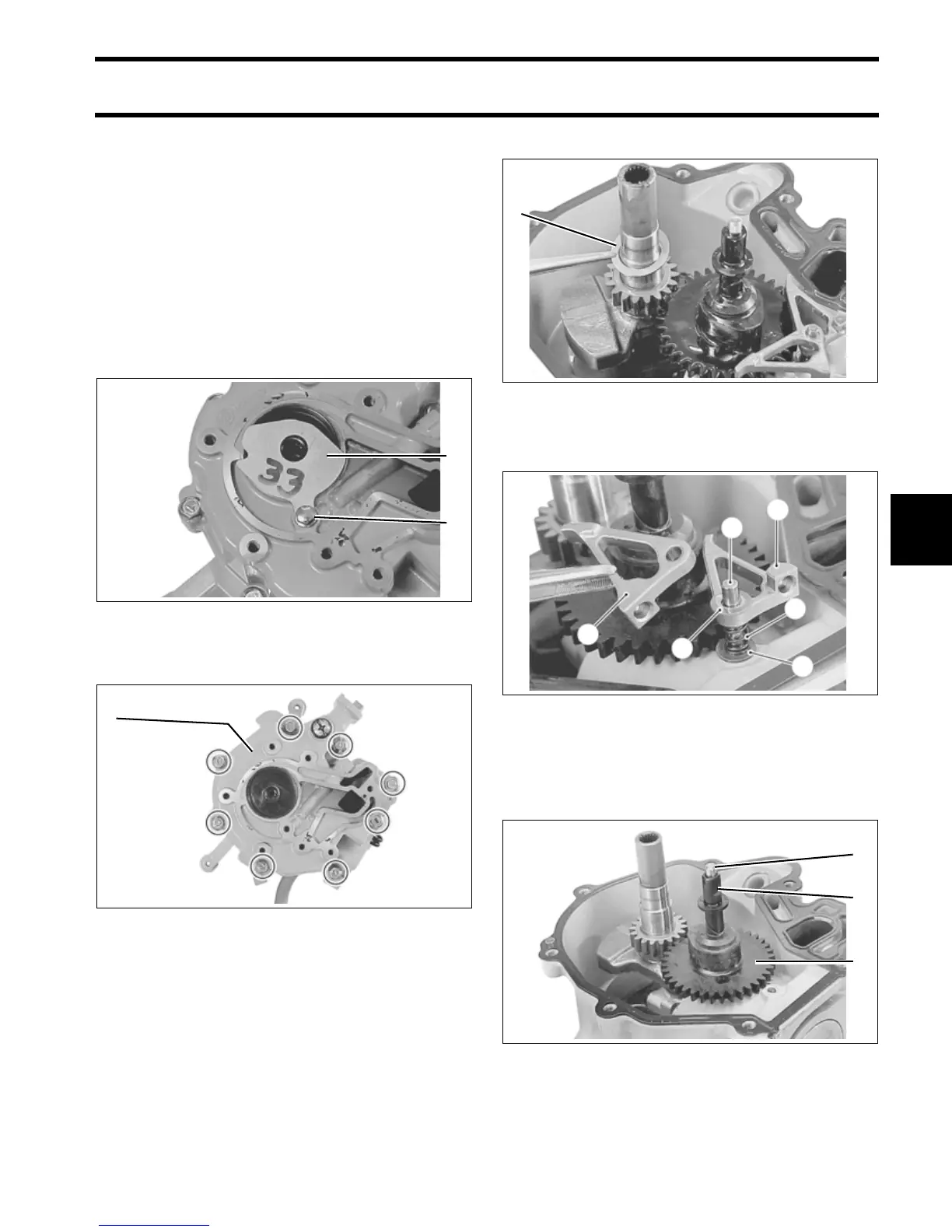

Disassembly
Remove the powerhead. Refer to REMOVAL on
p. 77.
Remove the cylinder head. Refer to CYLINDER
HEAD on p. 78.
Remove the bolt and the under oil seal plate.
Remove the eight bolts and the crankcase.
Remove the thrust washer.
Remove the cam rocker arm, washer, cam rocker
arm, spring, washer, and shaft.
Remove the oil pump shaft, camshaft, and shaft.
1. Bolt
2. Seal plate
006054
1. Crankcase 006055
2
1
1
1. Thrust washer 006056
1. Cam rocker arm
2. Washer
3. Spring
4. Washer
5. Shaft
006057
1. Oil pump shaft
2. Camshaft
3. Shaft
006058
1
1
1
3
2
5
4
1
2
3
