POWERHEAD
CYLINDER/CRANKCASE/PISTON

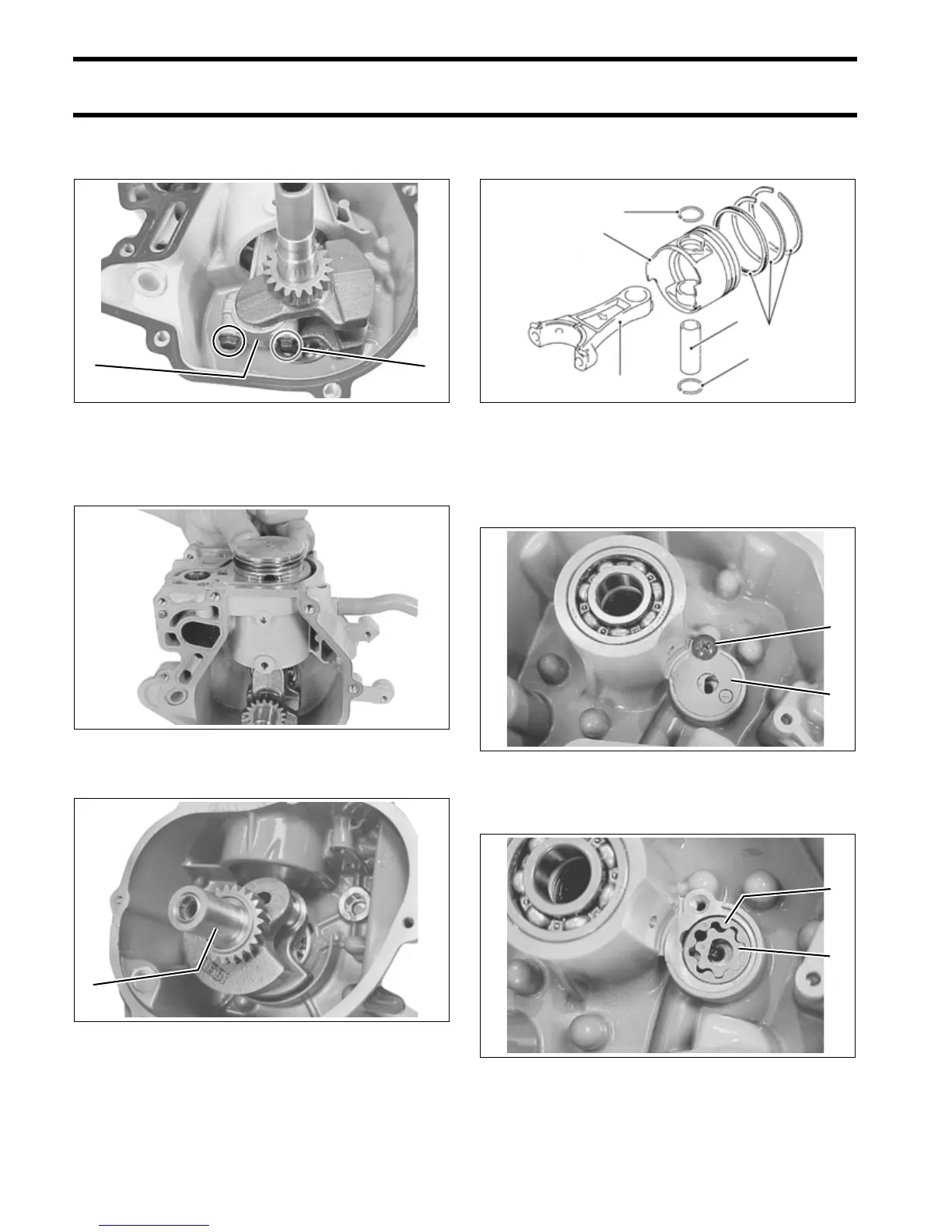

Remove the two connecting rod bolts and the con-
necting rod cap.
Remove the piston with the connecting rod
through the top of the cylinder bore.
Remove the crankshaft from the cylinder block.
Remove the circlips, the piston pin, the connecting
rod, and the piston rings from the piston.
Remove the screw and the oil pump outer plate.
Remove the inner rotor and the outer rotor.
1. Bolt (2)
2. Connecting rod cap
006059
006060
1. Crankshaft 006061
12
1
1. Circlips
2. Piston pin
3. Connecting rod
4. Piston rings
5. Piston
006062
1. Screw
2. Plate
006063
1. Inner rotor
2. Outer rotor
006064
5
4
3
1
1
2
1
2
2
1
