POWERHEAD
CYLINDER HEAD
6

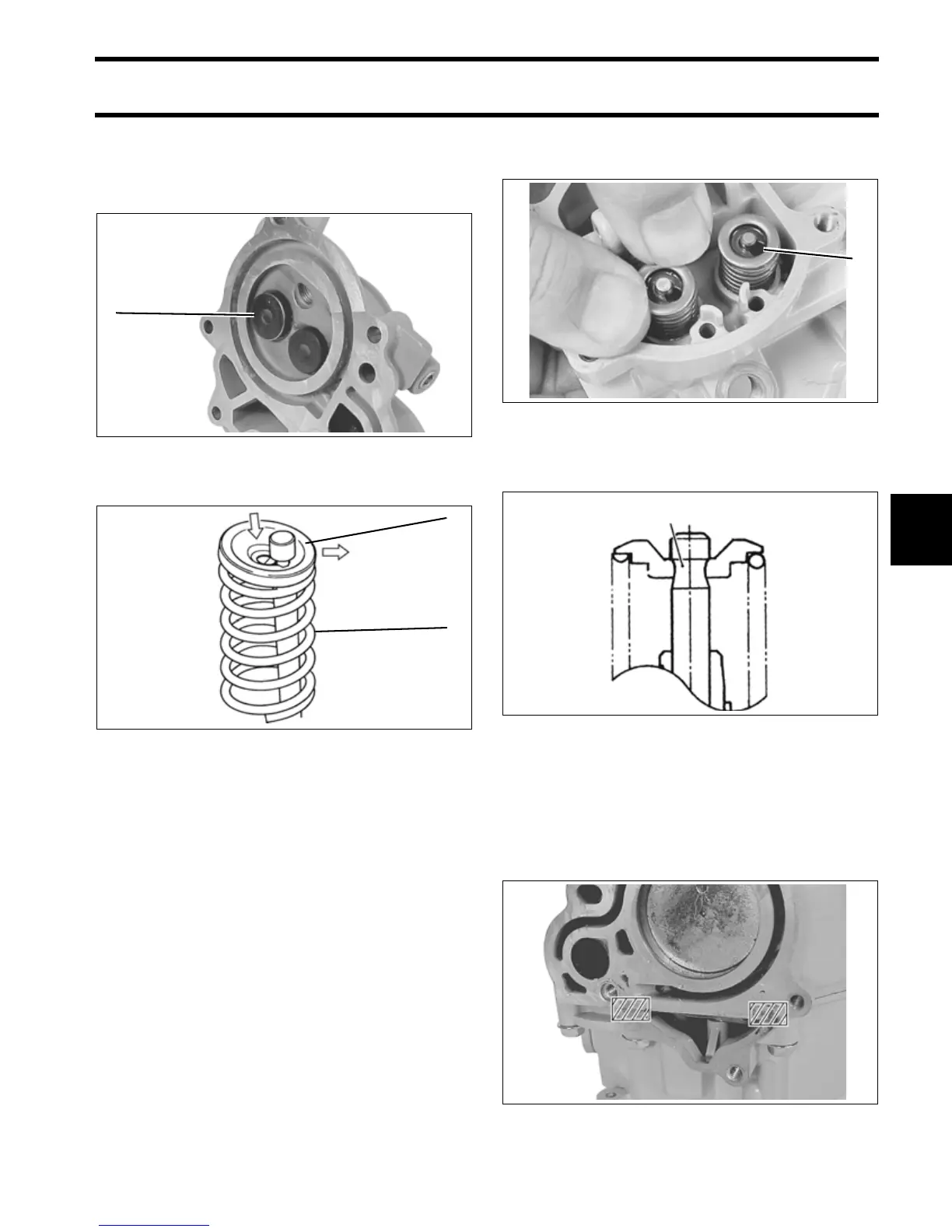

Apply engine oil to the valve guide bore and valve
stem.
Install the valves in the valve guides.
Install the valve spring and the retainer.
IMPORTANT: Reassemble each valve spring to
its original position.
Push down the retainer with both thumbs so the
valve stem can be inserted into the side hole of
the retainer, and let it slide sidewise into the cen-
ter hole.
Make sure the retainers are properly seated in
groove.
IMPORTANT: Do not re-use cylinder head gas-
ket. Always use a new gasket.
Before installing cylinder head gasket, apply
ThreeBond 1207B sealant to both surfaces of the
shaded areas shown.
1. Valve (2) 006050
1. Valve spring
2. Retainer
006051
1
2
1
1. Side hole 006052
006053
006015
1
Groove
