POWERHEAD
CYLINDER/CRANKCASE/PISTON
6

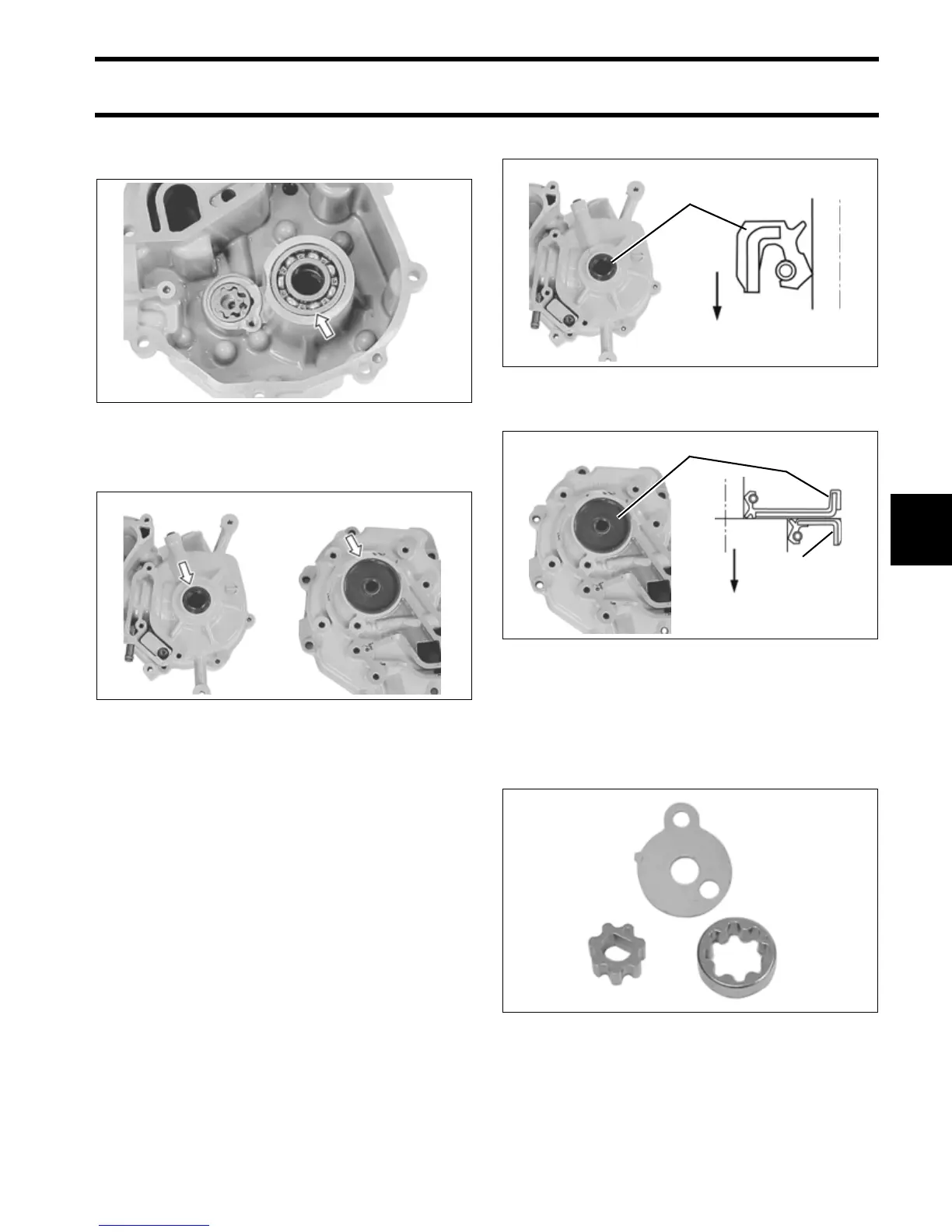

Visually check the crankshaft upper bearing for
pitting, roughness, or other damage.
If no damage is found on the oil seals or bearing,
do not remove either.
IMPORTANT: Do not re-use the oil seal once
removed. Always use a new oil seal.
Drive the oil seal down into position as shown.
Oil Pump
Inspect the outer rotor, the inner rotor and the
rotor plate for excessive wear or other damage.
Replace if necessary.
006096
Seals 006097
006098
1. Crankshaft upper oil seal 006099
006100
1. Crankshaft lower oil seal
2. Driveshaft oil seal
006101
006102
006103
Inside crankcase
1
Inside crankcase
2
1
