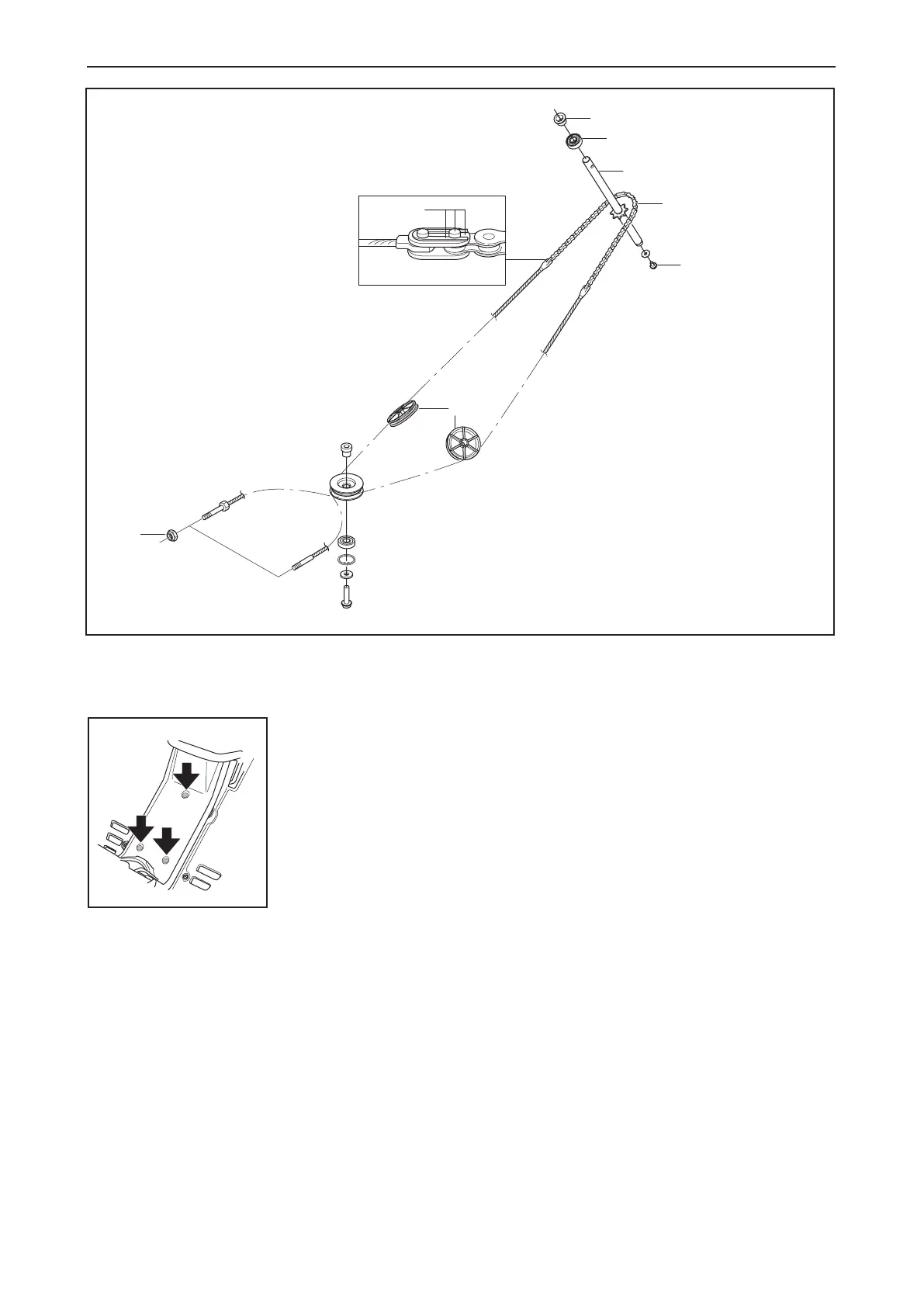

6.5 Replacing the Steering Cables
1 Loosen the rear fastening of the steering
cables (1).
2 Remove the frame cover by loosening the
screws. 3 pcs screws:
3 Remember the cable routing. Loosen the front
attachment (2) of the steering cables at the
steering chain (3), loosen the steering cable
wheels (4) and pull the steering cables out
through the frame.
Note. If the old cables are whole, the new ones
can be attached to them as they are drawn out
through the frame. The new cables will then
automatically follow the correct route.
4 Ensure that the steering wheel is in the center
position when the rear wheels are centered.
Re-set the chain on the steering column's
sprocket or adjust the rear xture (1) for the
steering cables as needed.
Hold the cables with e.g. an adjustable wrench so
they do not twist.
Check the cable tension when new cables are
tted (see "Checking and adjusting the steering
cables").
