6.16 Replacing the hydrostatic
cable
6.16.1 Removing the hydrostatic cable

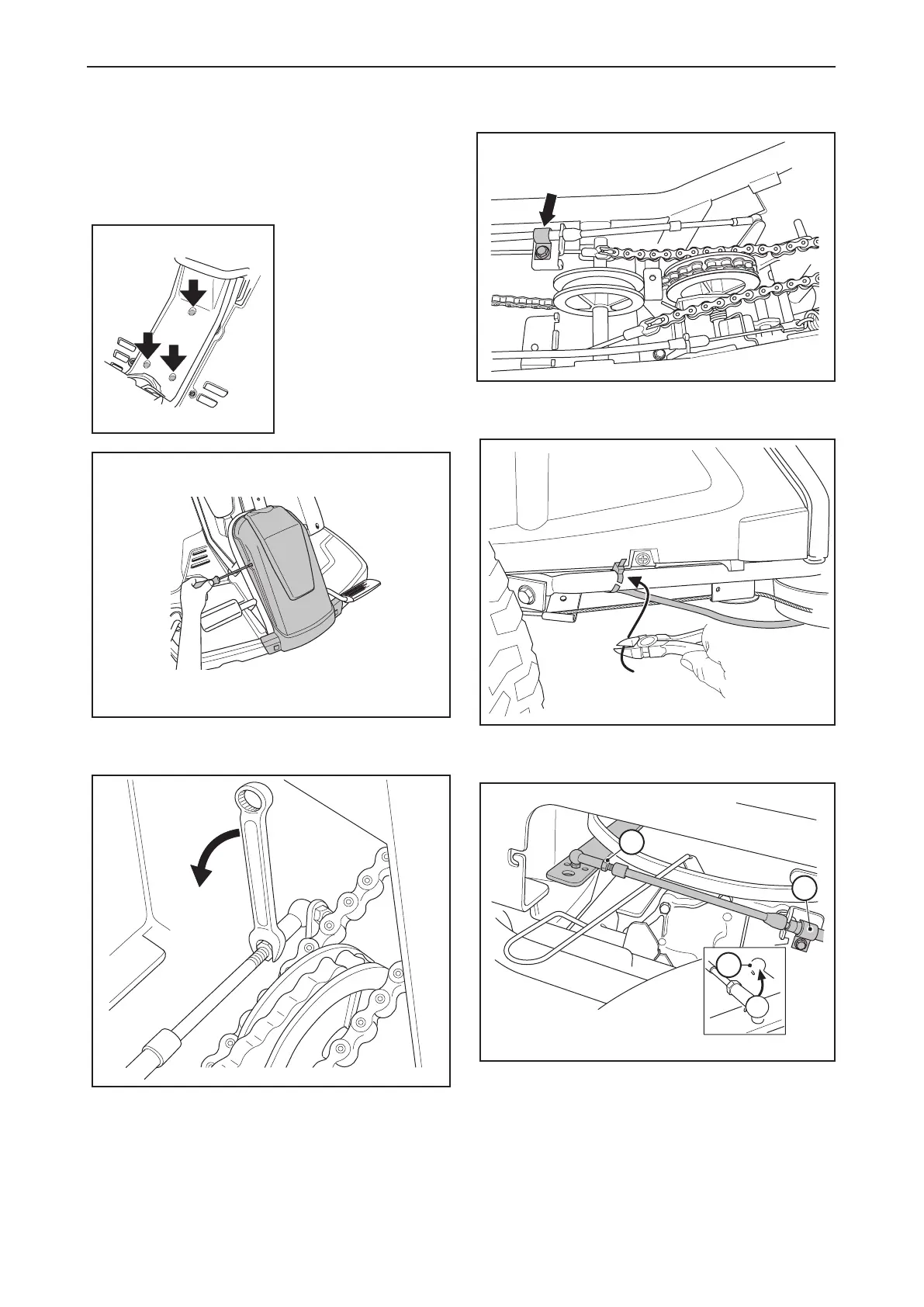

1 Remove the frame cover and the front cover.
2 Loosen the hydrostatic transmission cable
locking nut 1/4 turn.
3 Remove the front hydrostatic cable clamp that is
fastened inside the center console.
4 Cut o the plastic tie around the cable at the
frame situated in front of the left front wheel.
1
3
2
5 Loosen the M5 nut (1) and remove the locking
spring (2) by the hydrostatic transmission's rear
link joint. Loosen the clamp (3) holding the cable
cover.
