English – 33
Repair instructions

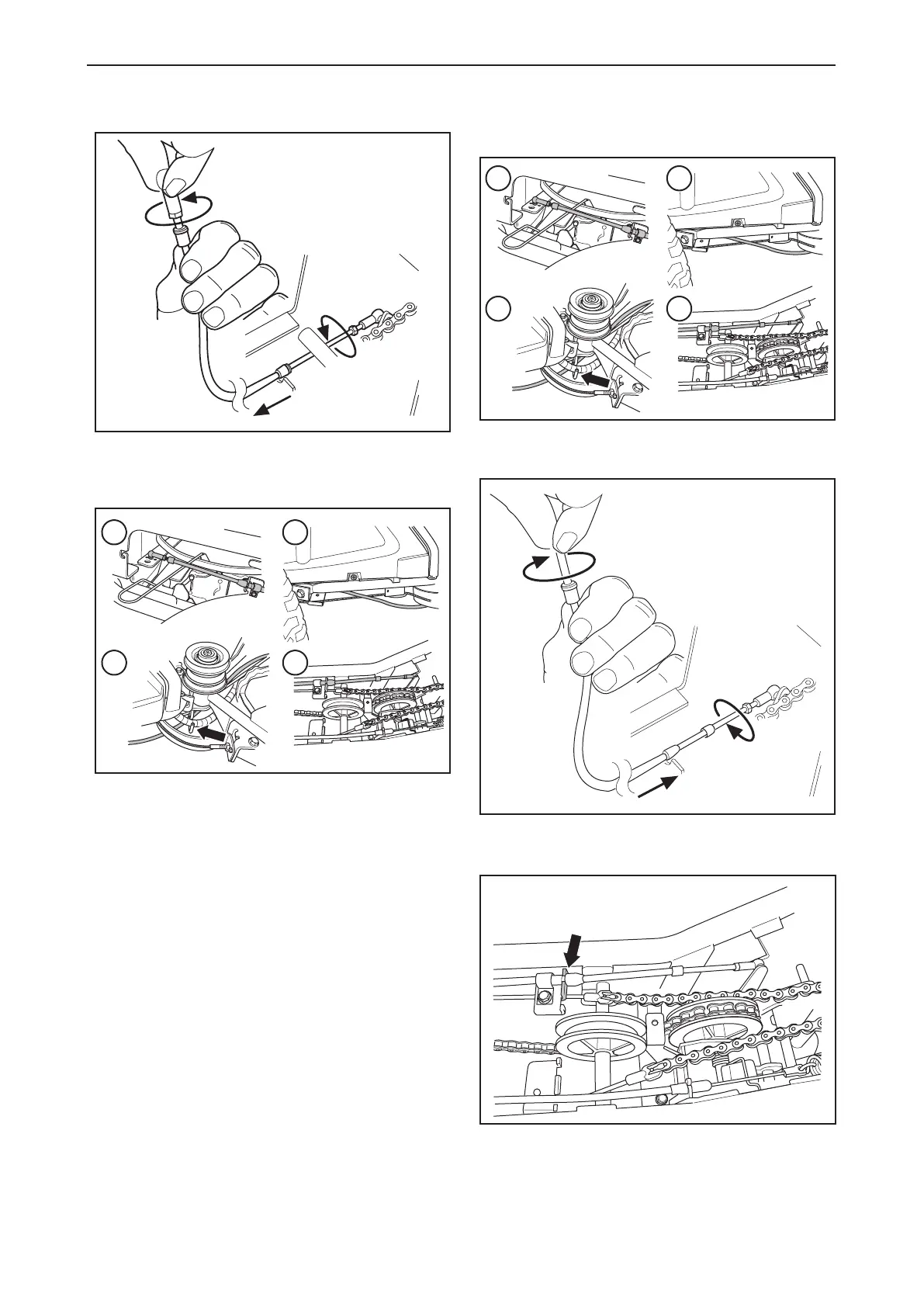

6 Lift the link joint o and remove the hydrostatic
cable. Loosen the rear link joint from the cable.
Turn the cable so that it comes loose from the
front link joint.
1 2
3 4
7 Remove the whole hydrostatic cable. Make a
note of how the cable is laid out, so that the new
cable can be correctly positioned.
Fitting the hydrostatic cable
1 2
3 4
1 Feed the new cable through the product so it runs
the same route as the old one.
\
2 Screw the new hydrostatic cable in as far as
possible on the front link joint and tension the
locking nut.
3 Press the cable sheath into the front attachment
in the center console.
