Jonsered FR2312M - Electrical System; Wiring Diagram

English – 43
Electrical system
7 Electrical System

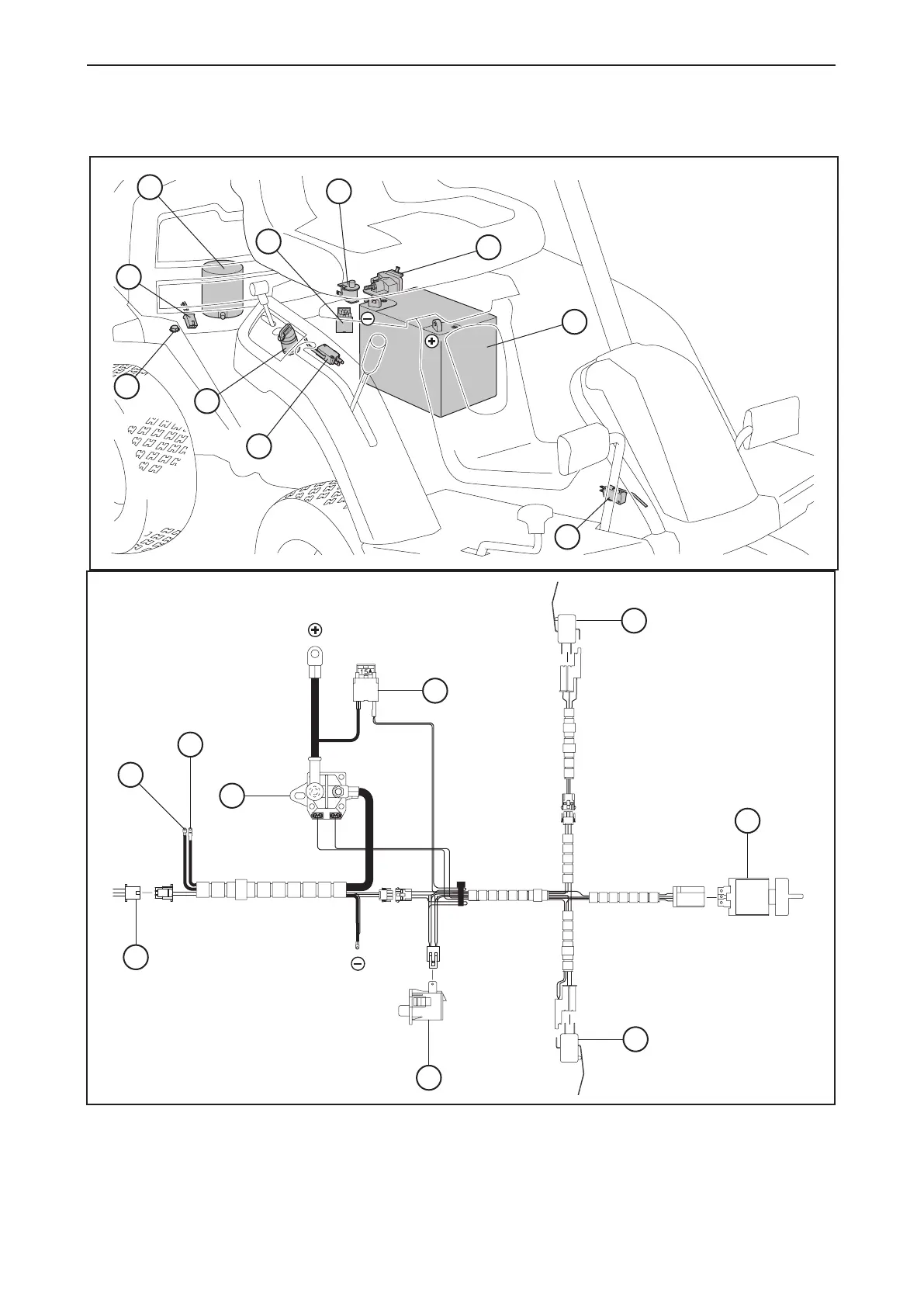

7.1 Wiring diagram
1
2
3
4
5
8
9
7
6
10
6
1
9
7
8
2
3
4
5
1. Microswitch, seat
2. Ignition switch
3. Microswitch, lifting lever
4. Microswitch, pedal
5. Fuse, 15A
6. Starter relay
7. Grounding point engine
8. Starter motor
9. Solenoid valve carburettor
