36 – English
Repair instructions

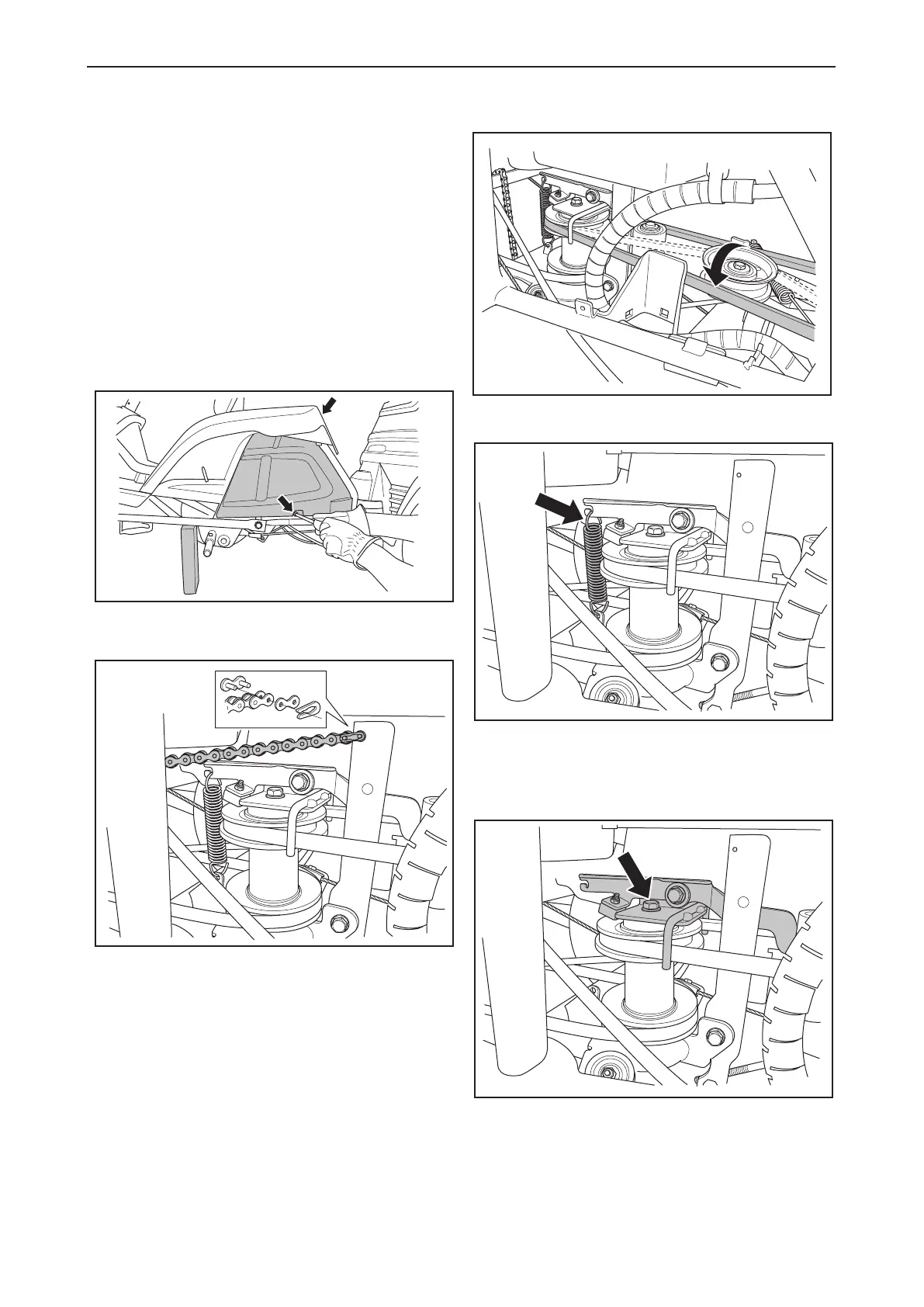

6.18 Replacing belt 4, as far as the
cutting unit
Starting position for removing belts:
• No unit is attached to the machine.
• The front part of the belt is loose.
• The lifting lever is lowered.
1 Jack up the front carriage and remove the left
front wheel.
2 Remove the side cover. One screw at the side
and one at the top, under the seat.
3 Remove the lifting chain from the lever arm of the
cutting unit.
4 Lift o belt 3 (cutting unit drive) from the belt
tensioner.
5 If mouted, unscrew the blade brake package.
Unhook the spring using a spring hook. Note that
it should be placed with the loop to the right
during the assembly, to prevent the lifting chain
from getting stuck.
6 Unscrew the brake.
