English – 41
Repair instructions

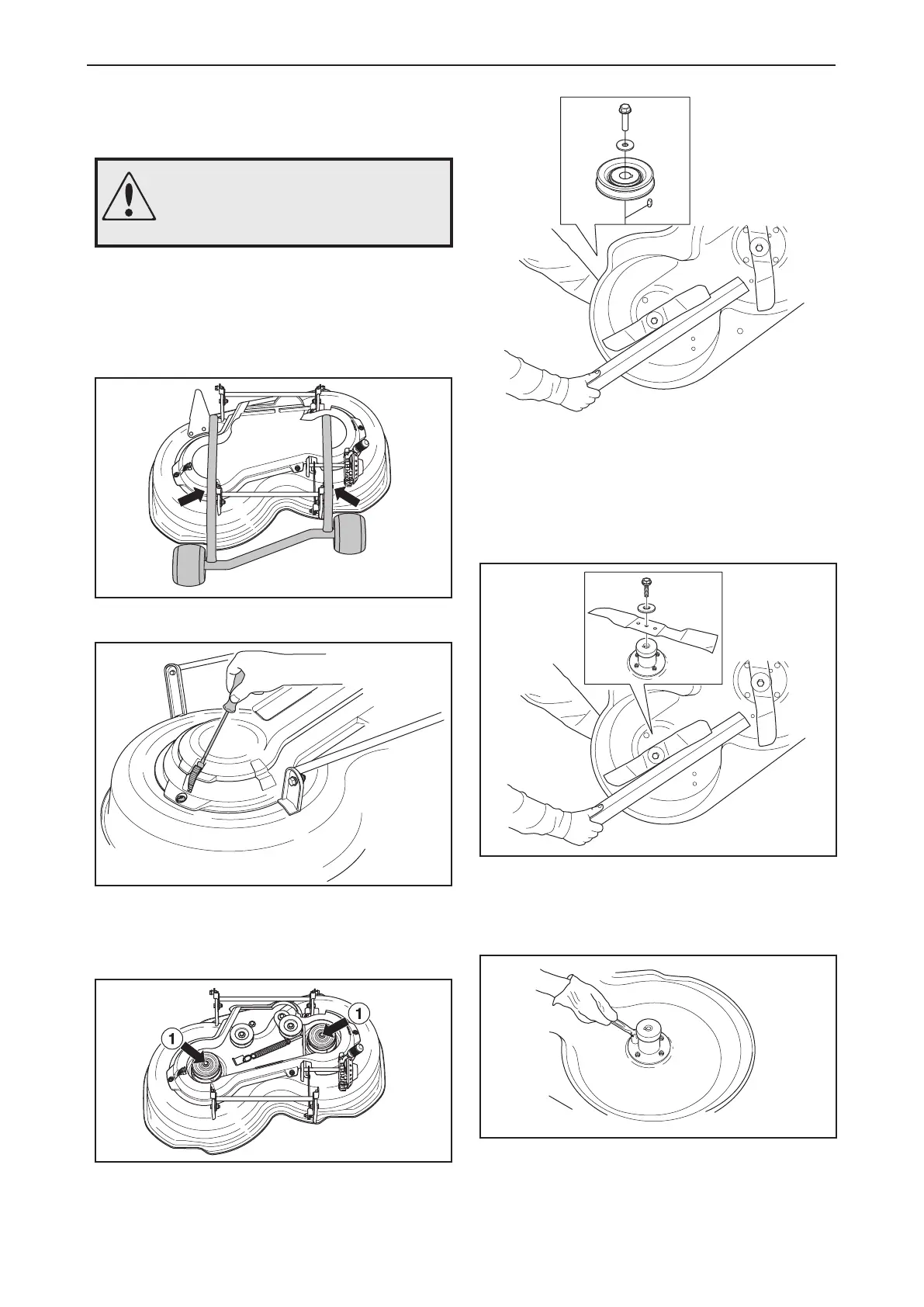

6.22 Removal of blades and blade
housing
WARNING!
Use gloves and protective
goggles when working on the
cutting unit.
The cutting unit should be removed from the
machine, see "Removing the cutting unit".
1 Remove the front equipment frame.
2 Remove the upper cover of the cutting unit by
opening the snap-in lock.
3 Remove the screw holding the deck belt
pulley (1).
4 Secure the blade with a wooden block or hold the
belt pulley with an oil lter puller for example. Do
not misplace the key that is between the belt
pulley and the shaft. Remove the deck belt pulley.
You might need a wrench to do so.
5 Lock the blade with a wooden block. Loosen the
blade bolt and remove the blade bolt, washer and
blade.
6 Loosen the four screws that hold the blade
bearing and remove the entire bearing assembly
from the cutting unit.
