44 – English
Electrical system
7.2 Electrical system components
The electrical system consists of four cables, three
microswitches, one ignition switch and one fuse. If
the product does not start (the start engine does not
rotate when the key switch is turned to the starting
position), one of the electrical system components
might be damaged. A description of how to replace
these components is found below.

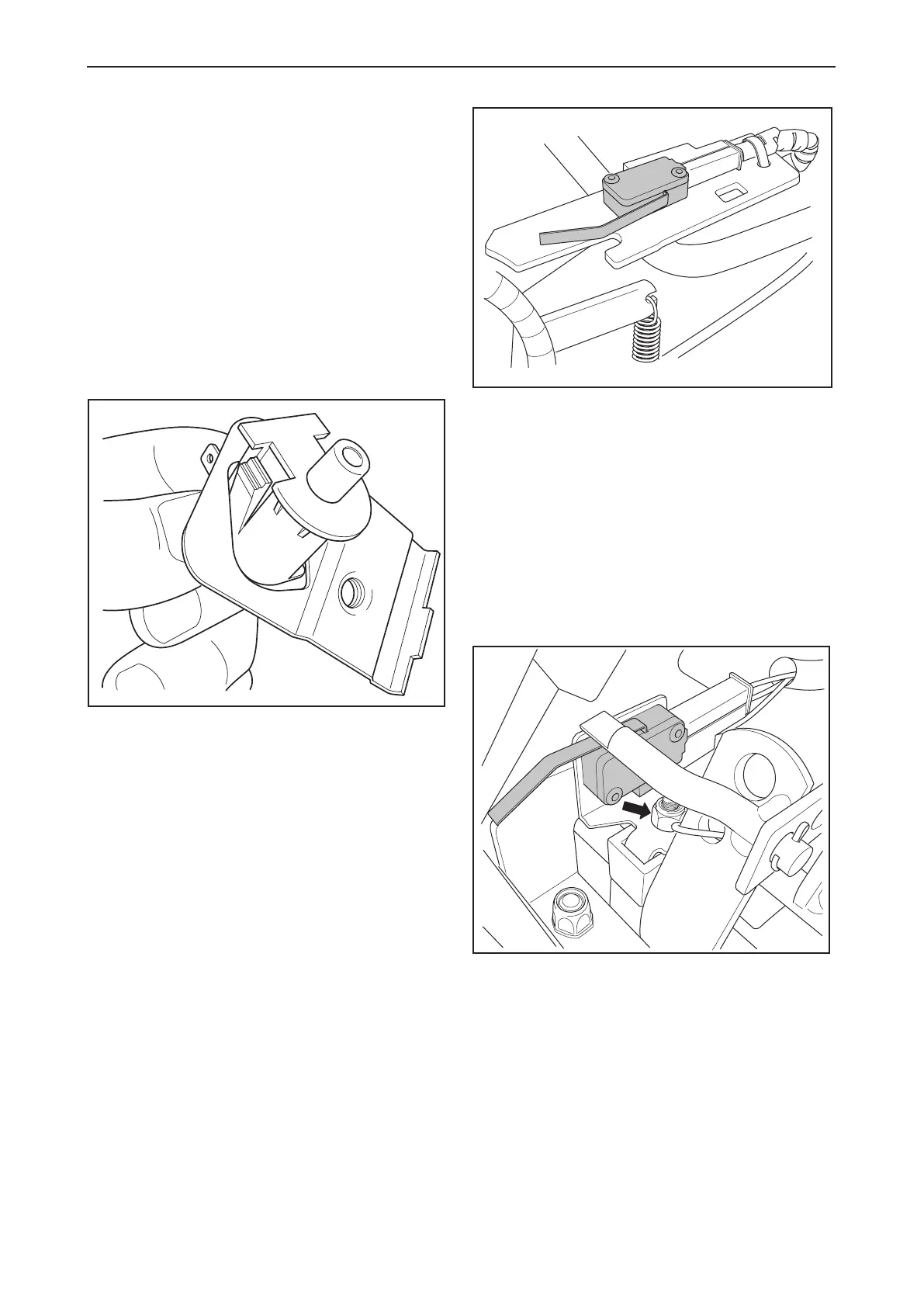

7.2.1 Microswitch seat
1 Fold the seat upwards and remove the spring
disc with spring and spacer tube.
2 Unplug the cable connections from the
microswitch.
3 Press in the fasteners and remove the
microswitch from the holder.
Assembly is in reverse order.
7.2.2 Microswitch cutting unit
1 Loosen the right wing cover.
2 Unplug the connector from the microswitch.
3 Remove the microswitch.
4 Assembly is in reverse order.
7.2.3 Microswitch pedal carrier
1 Remove the front cover.
2 Check that the microswitch is activated when the
brake pedal is pressed all the way down.
Otherwise, replace the microswitch. The switch is
held by the screw at the arrow.
3 Ret the front cover.
