40 – English
Repair instructions
6.21 Service position for cutting
unit
Follow the instructions for "Removing the cutting
unit" above. Lift o the unit and lean it against the
machine or a wall.

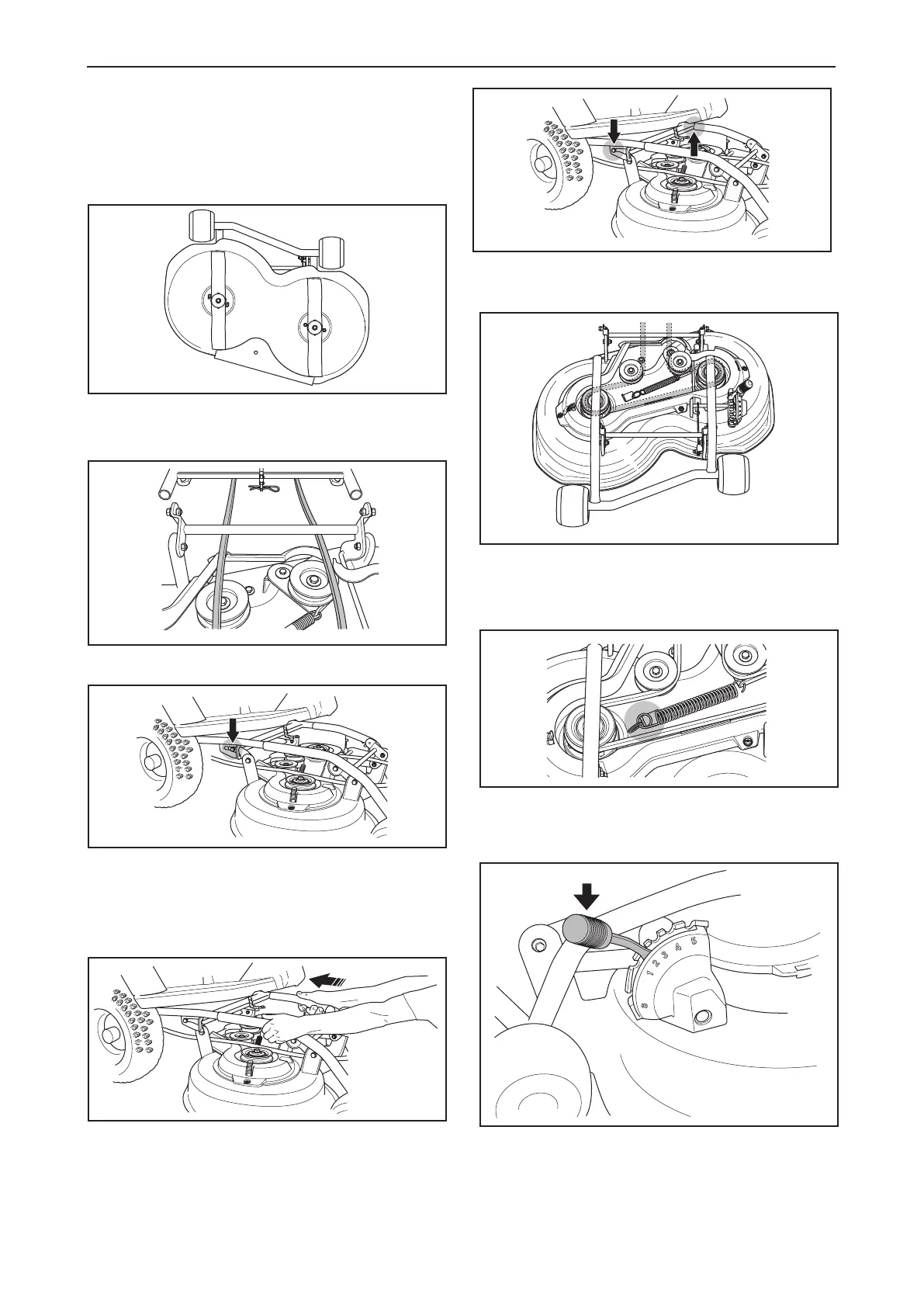

Attaching the cutting unit
1 Place the belt under the stay of the cutting unit.
2 Fit the cutting unit's pipe together with the unit
frame's pipe. Push the cutting unit in and make
sure the guide bolts t into the grooves on the
unit frame, one on each side.
3 Grab the pipes and push the unit in.
4 Push the unit until you feel the pipes touch
bottom.
5 Fit the belt according to the picture.
6 Tighten the belt with the belt tensioner.
7 Fit the front cover.
8 Move the cutting unit height control from the S
position to any of the other positions.
