26 – English
Repair instructions

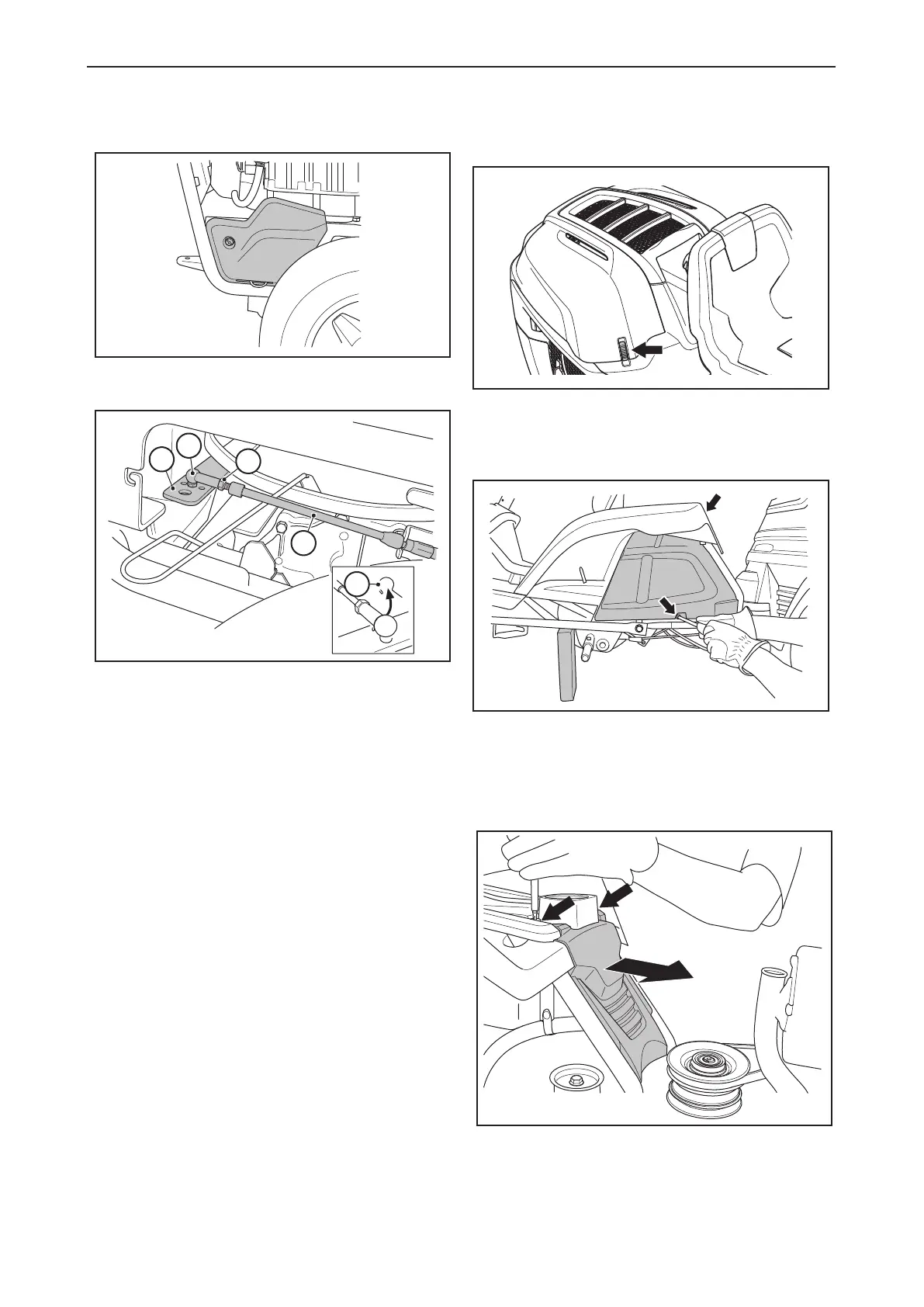

6.10 Checking and adjusting the
accelerator
1 Remove the cover on the right side of the rear
carriage.
5
1
3
4
2
2 Loosen the lock nut (1) on the ball joint.
3 Remove the locking spring (2) so that the ball
socket (3) can be removed from the ball on the
lever arm (4).
4 Press the forward accelerator pedal down
completely and move the lever arm (4) forwards
as far as possible.
5 Adjust the socket (3) position on the connecting
rod (5) so that it ts exactly over the ball on the
lever arm. Fit the socket on the ball.
6 Lock the adjustment with the lock nut (1) and put
the locking spring (2) in place.
6.11 Changing articulated steering
bearing
1 Remove the engine cover by loosening two
snap-in locks at the front and two hinges at the
back edge of the engine cover (Only 111B, 111B5).
2 Remove the side cover on the left hand side of the
front carriage. One screw at the side and one at
the top, under the seat.
3 Remove the rear cover of the front carriage.
