34 – English

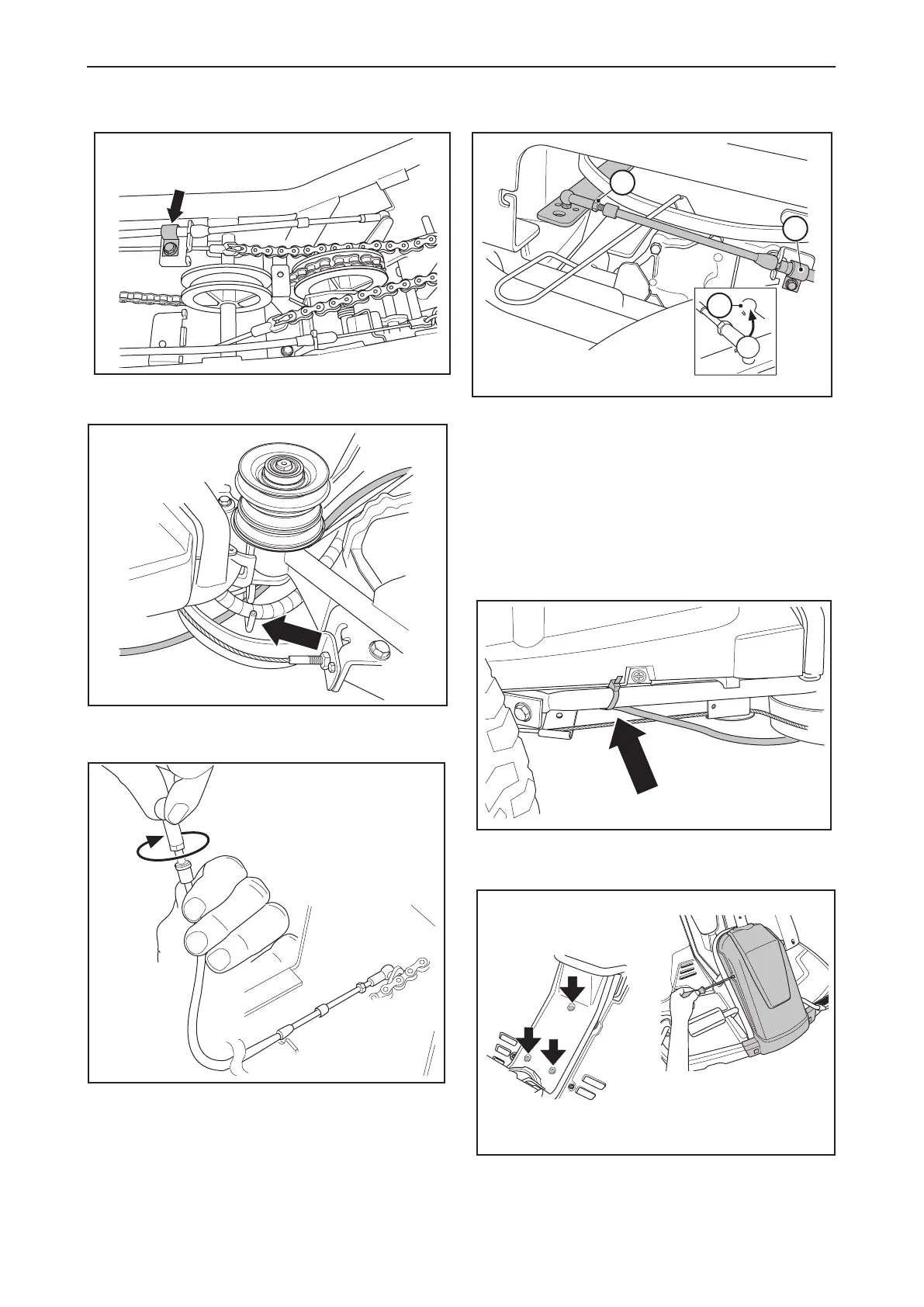

Repair instructions
4 Tighten the hydrostatic transmission cable
clamp.
5 Place the hydrostatic cable at the lowest position
in the fork below the pendulum shaft.
6 Attach the link joint to the lower part of the
hydrostatic transmission cable.
7 Place the hydrostatic transmission cable in place
and screw the casing on with the rear bracket (3).
8 Adjust the hydrostatic transmission cable as
shown, see Checking and Adjusting the
Accelerator.
Connect the rear link joint and t the locking
spring (2).
Tighten the rear link joint locking nut 1).
9 Secure the hydrostatic cable with plastic ties in
the frame behind the left front wheel.
10 Fasten the frame cover and the front cover.
1
3
2
